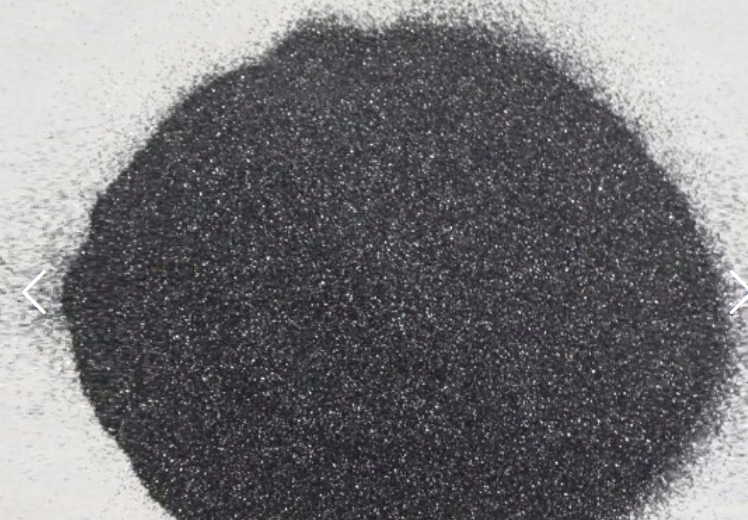

Silicon carbide (SiC) powder is a critical material in industries ranging from semiconductors to abrasives due to its exceptional hardness, thermal conductivity, and chemical resistance. This article explores the methods for producing silicon carbide powder, including traditional and advanced techniques, supported by detailed steps, visuals, and industry insights.
Silicon carbide powder is synthesized through high-temperature reactions between silicon and carbon sources. The process varies depending on the desired purity, crystal structure (α-SiC or β-SiC), and application. Below, we outline the most common production methods, their mechanisms, and key considerations.
The Acheson process is the most widely used method for industrial-scale SiC production. It involves reacting silica (SiO₂) with carbon (C) at extreme temperatures (2,000–2,500°C) in an electric arc furnace.
Chemical Reaction: Si+C→SiC
Steps:
1. Raw Material Preparation: Mix high-purity silica sand (SiO₂) and petroleum coke (C).
2. Furnace Loading: Charge the mixture into a graphite-lined electric arc furnace.
3. Heating: Apply electricity to reach 2,500°C, triggering carbothermic reduction.
4. Cooling: Allow the furnace to cool, forming a crystalline SiC "crust."
5. Crushing and Grinding: Process the crust into fine powder using jaw crushers and ball mills.
SHS leverages exothermic reactions to synthesize SiC without external heating.
Steps:
1. Mix Raw Materials: Combine silicon (Si) and carbon (C) powders in a 1:1 molar ratio.
2. Ignition: Use a thermal spark to initiate the reaction: Si+C→SiC
3. Reaction Propagation: The exothermic reaction self-sustains, forming β-SiC powder.
Advantages:
- Energy-efficient.
- Rapid synthesis (minutes vs. hours).
Limitations:
- Limited to small batches.
- Lower purity compared to Acheson.
CVD produces high-purity SiC for advanced applications like semiconductors.
Steps:
1. Gas Introduction: Feed silane (SiH₄) and methane (CH₄) into a reactor.
2. Decomposition: Heat to 1,200–1,600°C to decompose gases into Si and C atoms.
3. Deposition: Atoms react on a substrate to form α-SiC or β-SiC thin films.
4. Collection: Scrape and grind deposited layers into powder.
The Lely method grows single-crystal SiC for electronics.
Steps:
1. Sublimation: Heat SiC powder to 2,500°C in an argon atmosphere.
2. Recrystallization: Sublimed vapors deposit on cooler graphite substrates.
3. Harvesting: Collect hexagonal (6H-SiC) or cubic (3C-SiC) crystals.
A low-temperature alternative for nano-SiC powder.
Steps:
1. Precursor Preparation: Mix silicon alkoxide (e.g., TEOS) and carbon sources.
2. Gel Formation: Hydrolyze the mixture to form a gel.
3. Pyrolysis: Heat the gel under argon at 1,200–1,500°C.
4. Milling: Grind the product into nanoparticles.
Applications:
- Nanocomposites.
- Catalysts.
| Method | Temperature (°C) | Purity | Crystal Phase | Cost |
|---|---|---|---|---|
| Acheson Process | 2,000–2,500 | 95–99% | α-SiC | Low |
| CVD | 1,200–1,600 | >99.999% | β-SiC | High |
| Lely Process | 2,500 | >99.99% | 6H/4H-SiC | Very High |
| SHS | 1,500–2,000 | 90–95% | β-SiC | Moderate |
| Sol-Gel | 1,200–1,500 | 98–99% | Amorphous | Moderate |
- Issue: Iron, aluminum, and oxygen impurities degrade SiC quality.
- Solution: Use high-purity raw materials (e.g., 99.999% SiO₂) and inert atmospheres.
- Issue: Acheson and Lely processes require massive energy input.
- Solution: Optimize furnace insulation and adopt SHS for smaller batches.
- Issue: Inconsistent grinding yields irregular powders.
- Solution: Use jet mills or laser diffraction for precise size control.
- Use: Cutting tools, sandpaper.
- Grade: Coarse grit (24–120 mesh).
- Use: Semiconductor substrates, LEDs.
- Grade: High-purity single crystals (CVD/Lely).
- Use: Kiln furniture, crucibles.
- Grade: Sintered α-SiC.
- CO Emissions: Carbothermic reduction releases CO gas. Mitigate via scrubbing and recycling.
- Dust Control: SiC grinding generates inhalable particles. Use N95 masks and ventilation.
- Energy Efficiency: Transition to renewable energy for electric arc furnaces.
1. Plasma-Assisted Synthesis: Reduce temperatures to 1,000°C using plasma reactors.
2. Biomass-Derived Carbon: Replace petroleum coke with sustainable carbon sources.
3. AI-Driven Process Optimization: Machine learning for real-time parameter adjustment.
Silicon carbide powder production hinges on balancing purity, cost, and scalability. The Acheson process dominates industrial manufacturing, while CVD and Lely methods cater to high-tech applications. Innovations like plasma synthesis and AI optimization promise greener, more efficient production. By understanding these methods, industries can select the optimal approach for their needs.
High-purity silica sand (SiO₂) and carbon sources (petroleum coke, coal tar pitch).
α-SiC (hexagonal) is stable at high temperatures, while β-SiC (cubic) forms at lower temperatures.
Yes, but impurities must be removed via acid washing or magnetic separation.
Sol-gel or laser pyrolysis methods produce nanoparticles (10–100 nm).
Abrasives, refractories, semiconductors, and automotive (brake discs).
