Silicon carbide (SiC) is a compound that has gained immense popularity in various industries due to its exceptional hardness, thermal stability, and electrical conductivity. It is widely used in semiconductor applications, abrasives, and cutting tools. However, cutting silicon carbide can be challenging due to its hardness, which is second only to diamond. This article will explore various methods for cutting silicon carbide, the tools required for each method, and tips for achieving optimal results.

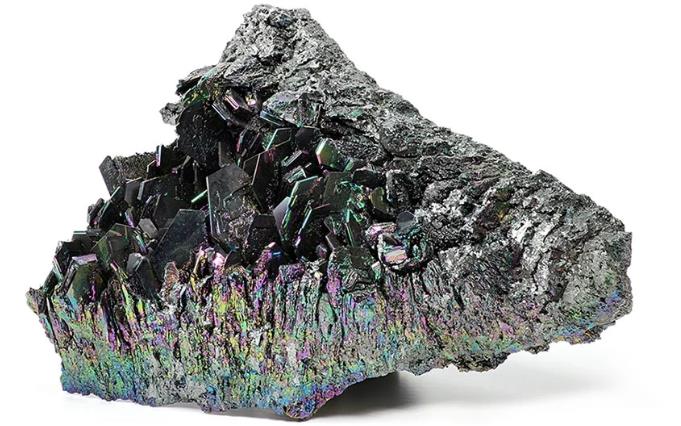

Silicon carbide is a crystalline compound made of silicon and carbon. It is known for its:
- High hardness: SiC ranks 9 on the Mohs scale, making it one of the hardest materials available.
- Thermal conductivity: It can withstand high temperatures, making it suitable for high-performance applications.
- Chemical resistance: SiC is resistant to oxidation and corrosion.
These properties make SiC an ideal material for use in electronic devices, cutting tools, and abrasives.
Silicon carbide has a wide range of applications across various industries:
- Electronics: SiC is used in power devices and high-frequency applications due to its ability to operate at higher voltages and temperatures than traditional silicon.
- Abrasives: Its hardness makes it suitable for grinding wheels, sandpapers, and other abrasive products.
- Cutting Tools: SiC is utilized in manufacturing cutting tools that require high durability and wear resistance.
- LED Technology: Silicon carbide substrates are increasingly used in the production of light-emitting diodes (LEDs) because they provide excellent thermal management.
- Automotive Industry: SiC components are being integrated into electric vehicles for better energy efficiency and performance.
Cutting silicon carbide presents several challenges:
- Brittleness: SiC can chip or crack easily during the cutting process.
- Tool wear: Due to its hardness, cutting tools can wear out quickly.
- Heat generation: Cutting generates heat, which can lead to thermal damage if not managed properly.
To overcome these challenges, selecting the right cutting method and tools is crucial.
There are several methods for cutting silicon carbide, each with its advantages and limitations. The most common methods include:

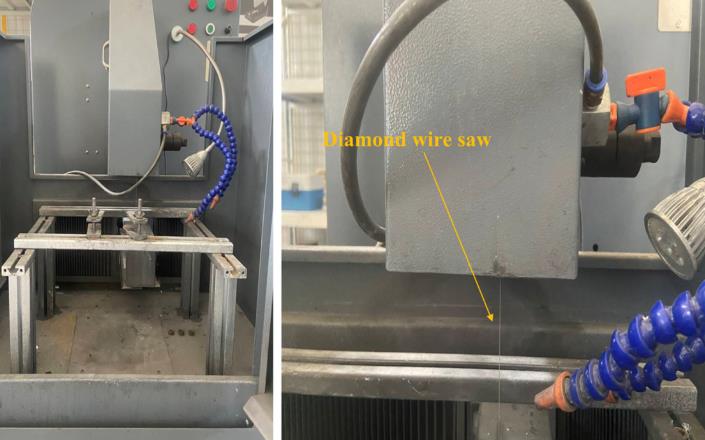

Diamond wire saw cutting is one of the most effective methods for slicing silicon carbide. This technique involves using a wire with diamond segments attached to it.
Advantages:
- High precision and minimal kerf width.
- Reduced material loss compared to traditional saws.
Process:
- The diamond wire saw operates by moving the wire back and forth against the SiC material.
- It generates less heat than other methods, reducing the risk of thermal damage.
Laser cutting utilizes a focused beam of light to melt or vaporize the material being cut. This method is particularly effective for thin wafers of silicon carbide.
Advantages:
- High-speed cutting with minimal kerf width.
- Ability to cut complex shapes without physical contact.
Process:
- A laser beam is directed onto the SiC surface, creating a localized area of high temperature that melts or vaporizes the material.
- The process can be adjusted for different thicknesses and shapes.
Grinding wheel cutting involves using a rotating grinding wheel to remove material from silicon carbide. This method is suitable for shaping larger pieces.
Advantages:
- Versatile and can be used on various shapes and sizes.
- Effective for rough cuts or shaping.
Process:
- The grinding wheel rotates at high speeds while applying pressure against the SiC piece.
- Coolant may be used to reduce heat buildup during cutting.
Water jet cutting uses high-pressure water mixed with abrasives to cut through materials. This method is effective for thick pieces of silicon carbide.
Advantages:
- No heat affected zone (HAZ), preventing thermal damage.
- Capable of cutting intricate designs.
Process:
- A high-pressure water jet is directed at the SiC surface, eroding it away.
- Abrasive particles enhance the cutting capability of the water jet.
The choice of cutting method depends on several factors:
- Material thickness: Thicker materials may require more robust methods like water jet or grinding wheel cutting.
- Desired precision: For high precision cuts, diamond wire saw or laser cutting is preferred.
- Cost considerations: Some methods may require expensive equipment or consumables.
To effectively cut silicon carbide, specific tools are necessary depending on the chosen method:
1. Diamond Blades/Saws: Essential for diamond wire saw cutting and grinding operations. These blades are specifically designed to withstand the hardness of SiC.
2. Laser Cutters: For laser cutting applications; these machines must have sufficient power to cut through silicon carbide effectively.
3. Grinding Machines: These machines equipped with diamond grinding wheels are crucial for shaping larger pieces of SiC.
4. Water Jet Cutters: High-pressure pumps and abrasive materials are required for effective water jet cutting.
5. Coolants: Fluids that help manage heat generation during grinding or sawing processes are vital for maintaining tool integrity and preventing damage to the workpiece.
When working with silicon carbide, safety should always be a priority:
- Personal Protective Equipment (PPE): Always wear safety goggles, gloves, and masks to protect against dust particles generated during cutting operations.
- Ventilation: Ensure adequate ventilation in the workspace to avoid inhaling harmful dust or fumes produced during the cutting process.
- Equipment Safety Checks: Regularly inspect all equipment before use to ensure they are functioning correctly and safely.
To achieve optimal results when cutting silicon carbide, consider the following tips:
1. Use Proper Tools: Always use tools specifically designed for hard materials like SiC to minimize wear and damage.
2. Control Speed and Feed Rate: Adjusting these parameters can help manage heat generation and improve cut quality.
3. Use Coolants: When applicable, use coolants during grinding or sawing to reduce heat buildup.
4. Monitor Tool Wear: Regularly check tools for wear and replace them as necessary to maintain cutting efficiency.
5. Test Cuts: Perform test cuts on scrap material to fine-tune settings before proceeding with valuable pieces.
6. Maintain Consistent Pressure: Applying consistent pressure during cuts helps prevent chipping or breaking of the material.
7. Keep Work Area Clean: A clean workspace reduces risks associated with tripping hazards from debris or dust accumulation.
8. Follow Manufacturer Guidelines: Always adhere to manufacturer instructions regarding tool use and maintenance procedures to ensure safety and efficiency.
Cutting silicon carbide requires careful consideration of methods and tools due to its hardness and brittleness. Diamond wire saws and laser cutting are among the most effective techniques for achieving precision cuts while minimizing damage. Understanding the properties of silicon carbide and selecting appropriate cutting strategies will lead to better outcomes in manufacturing processes involving this versatile material.
The best method for cutting thin silicon carbide wafers is laser cutting due to its high precision and minimal kerf width.
No, standard saw blades are not suitable as they will wear out quickly; specialized diamond blades are recommended instead.
Diamond wire saw cutting offers high precision with less heat generation, while laser cutting allows for complex shapes but may generate some heat that could affect surrounding areas.
Use coolants to reduce heat buildup, monitor tool wear closely, and adjust feed rates as necessary to avoid chipping or cracking during grinding.
Water jet cutting is effective for thicker pieces but may not be as efficient as other methods like laser or diamond wire saws for thinner materials due to slower speeds.
