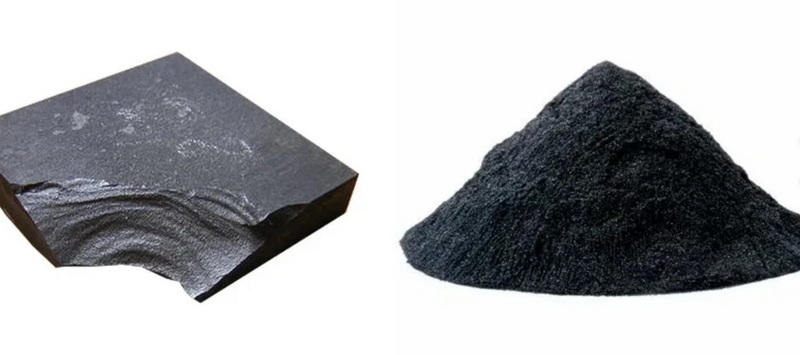

Boron carbide (B₄C) is one of the hardest materials on Earth, ranking third in hardness after diamond and cubic boron nitride. With a Vickers hardness of ~38 GPa and exceptional resistance to wear and corrosion, it is widely used in ballistic armor, nuclear shielding, and industrial abrasive applications. However, its extreme hardness and brittleness make cutting and machining a significant challenge. This article explores advanced techniques for cutting boron carbide, supported by visual guides, video demonstrations, and practical insights.
| Property | Value |
|---|---|
| Hardness (Mohs) | 9.3–9.5 |
| Density | 2.52 g/cm³ |
| Fracture Toughness | 2.5–3.5 MPa·m1/2 |
| Thermal Conductivity | 30–42 W/m·K |
| Compressive Strength | 2,200–3,000 MPa |
Boron carbide's hardness exceeds most conventional cutting tools, requiring diamond or cubic boron nitride (CBN) abrasives.
Prone to chipping and micro-cracks during machining.
Localized heat from cutting can induce thermal stress and fractures.
- Process: A diamond-coated wire (0.2–0.5 mm diameter) is tensioned and moved across the workpiece at 10–30 m/s.
- Applications: Precision slicing of boron carbide tiles for armor plates.
- Advantages:
- Minimal material loss (kerf width: 0.3–0.7 mm).
- Suitable for curved or complex shapes.
- Parameters:
- Wire Speed: 15–25 m/s.
- Feed Rate: 0.1–0.5 mm/min.
- Process: A high-power laser (CO₂ or fiber) melts/vaporizes material along the cutting path.
- Applications: Drilling holes in boron carbide neutron absorber rods.
- Advantages:
- No tool wear.
- Precision (±0.05 mm tolerance).
- Laser Power: 500–1,500 W.
- Wavelength: 10.6 µm (CO₂) or 1.06 µm (fiber).
- Process: A vibrating tool (20–40 kHz) drives abrasive slurry (diamond or B₄C grit) into the workpiece.
- Applications: Complex geometries like turbine blade coatings.
- Advantages:
- Low thermal stress.
- Suitable for brittle materials.
- Parameters:
- Amplitude: 10–50 µm.
- Abrasive Size: 10–50 µm diamond grit.
- Process: Rotary grinding wheels (resin or metal-bonded diamond) remove material via abrasion.

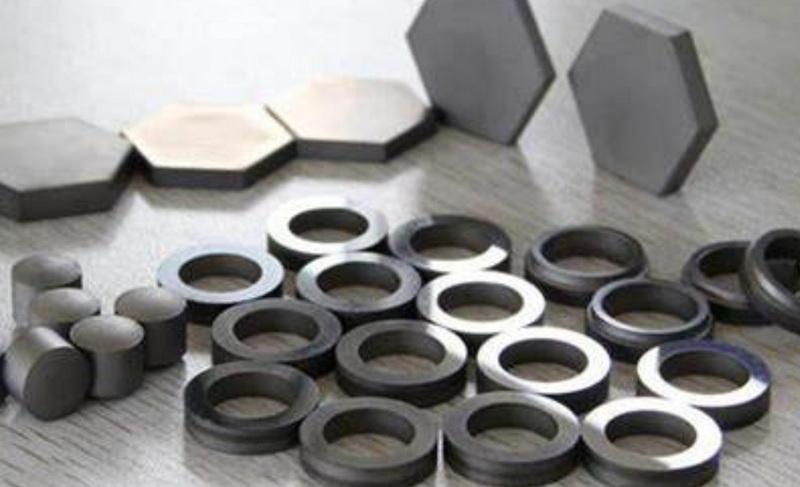

- Applications: Surface finishing of armor tiles.
- Advantages:
- High material removal rates.
- Surface roughness (Ra) down to 0.1 µm.
- Parameters:
- Wheel Speed: 1,500–3,000 RPM.
- Coolant: Water-soluble oils to prevent overheating.
| Method | Key Parameters | Optimal Range |
|---|---|---|
| Diamond Wire | Wire tension, feed rate, coolant flow | 20–40 N tension, 0.3 mm/min |
| Laser | Power, focal length, assist gas (N₂/Ar) | 1,000 W, 100 mm focal |
| Ultrasonic | Frequency, abrasive concentration, force | 25 kHz, 30% grit, 5 N |
| Grinding | Wheel grit size, depth of cut, coolant | 100–200 µm grit, 0.02 mm |
- Use diamond lapping films (3–9 µm grit) to eliminate micro-cracks.
- Surface Roughness Improvement: Ra from 2 µm to 0.2 µm.
- Heat to 800–1,200°C in argon atmosphere to relieve residual stresses.
- Cutting Need: Tiles for body armor require ±0.1 mm dimensional accuracy.
- Method: Diamond wire cutting followed by CNC grinding.
- Cutting Need: Neutron absorber rods with coolant channels.
- Method: Laser drilling with 0.5 mm hole spacing.

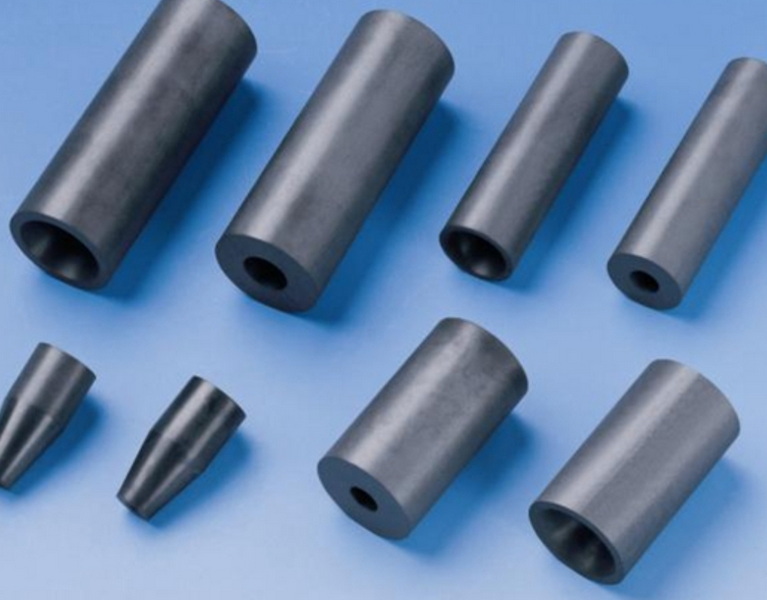

- Cutting Need: High-wear nozzles for sandblasting.
- Method: Ultrasonic machining for internal contours.
Cutting boron carbide demands specialized techniques like diamond wire cutting, laser machining, or ultrasonic methods to overcome its hardness and brittleness. Key factors include tool selection (diamond/CBN), parameter optimization, and post-processing to ensure dimensional accuracy and structural integrity. As industries increasingly adopt boron carbide for armor and nuclear applications, mastering these cutting methods becomes essential for manufacturers.
Diamond wire cutting is ideal for precision slicing, while laser cutting excels at drilling small holes.
No. Standard carbide tools wear out instantly. Diamond/CBN tools or non-contact methods (laser) are required.
Use low feed rates (<0.5 mm/min), coolant, and stress-relief annealing post-processing.
No. Waterjet abrasive (garnet) is softer than B₄C, making it ineffective.
Wear N95 masks (to avoid inhaling fine particles) and eye protection from diamond debris.
