Silicon carbide (SiC) is a highly versatile ceramic material known for its exceptional hardness, thermal conductivity, and resistance to corrosion. It is widely used in various industrial applications, including the production of ceramic components, semiconductor devices, and refractory materials. The process of molding silicon carbide into specific shapes is crucial for its application in these fields. This article will delve into the different methods used to shape silicon carbide, highlighting their advantages and challenges.
Silicon carbide is composed of silicon and carbon atoms, which form a strong covalent bond. This bond gives SiC its remarkable mechanical and thermal properties. The material can be produced in various forms, including powders, fibers, and monolithic bodies, depending on the intended application. Silicon carbide powders are often used as the starting material for molding processes due to their ease of handling and versatility.
Several techniques are employed to mold silicon carbide into desired shapes, each with its own set of advantages and limitations.
Dry pressing is a common method used for mass production of silicon carbide components. In this process, SiC powder is placed in a mold and subjected to mechanical pressure to form the desired shape. The advantages of dry pressing include good control over the final shape and high efficiency. However, it may not be suitable for producing complex shapes due to the limitations in achieving uniform compaction.
Isostatic pressing applies uniform pressure from all directions, resulting in components with consistent density and superior mechanical properties. This method is ideal for high-demand industrial applications but is more expensive than dry pressing. The uniform pressure ensures that the material is compacted evenly, reducing the risk of defects and improving the overall quality of the final product.
Slip casting is particularly useful for producing components with complex shapes. It involves mixing silicon carbide powder with a binder to create a slurry, which is then poured into a mold. This method is flexible but less efficient than dry pressing and is often used for custom production. The choice of binder is critical in slip casting, as it must provide sufficient strength to hold the shape while allowing easy removal from the mold.
After molding, the silicon carbide components are fragile and require drying and pre-sintering to enhance their strength.
Drying involves removing moisture or volatile organic binders from the components. This is typically done in a controlled environment to prevent cracking or warping. The drying process must be carefully monitored to ensure that the components do not undergo excessive shrinkage, which could affect their final dimensions.
Pre-sintering involves heating the components at a lower temperature to initiate binder bonding, improving their mechanical strength and preparing them for final sintering. This step is crucial for ensuring that the components can withstand the high temperatures of the sintering process without deforming.
Sintering is a critical step in the production of silicon carbide components, where the material is heated to high temperatures to achieve full density and strength.
There are several sintering techniques used for silicon carbide, including:
- Pressureless Sintering: This method involves heating the material in the absence of external pressure. It is simpler and less expensive than other methods but may result in lower density.
- Hot Pressing: Combines heat and pressure to achieve densification. This method produces components with high density and strength but requires specialized equipment.
- Spark Plasma Sintering (SPS): Uses electrical pulses to enhance sintering efficiency. SPS allows for rapid heating and cooling, which can improve the material's microstructure and properties.
- Chemical Vapor Deposition (CVD): Deposits material from the gas phase onto a substrate. CVD is used for producing thin films and coatings rather than bulk components.
Despite the advancements in molding and sintering techniques, challenges remain, such as achieving uniform density and minimizing defects. Future research focuses on improving these processes and exploring new applications for silicon carbide. The development of advanced binders and sintering aids is crucial for enhancing the properties of SiC components. Additionally, there is a growing interest in using silicon carbide in emerging technologies, such as electric vehicles and renewable energy systems, where its high thermal conductivity and mechanical strength are particularly valuable.

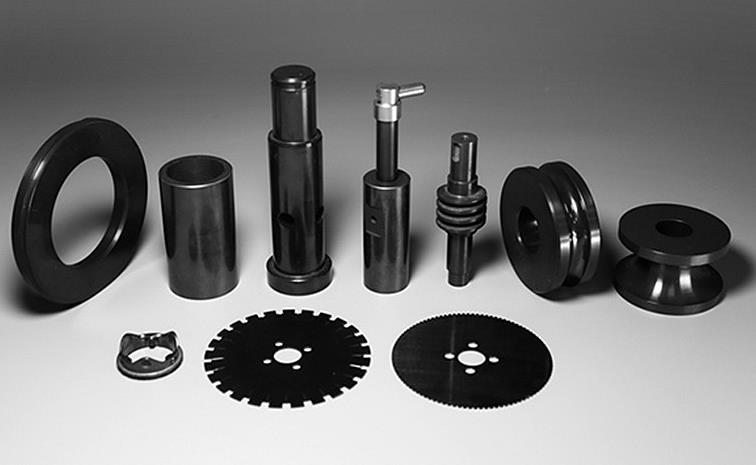

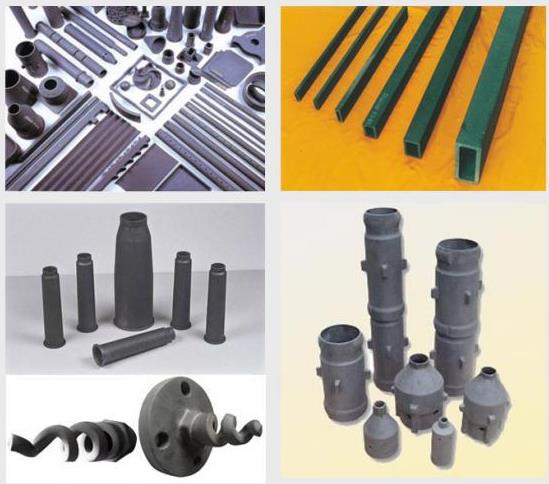

Silicon carbide is used in a wide range of applications due to its unique properties. In the semiconductor industry, SiC is used to produce high-power electronic devices, such as transistors and diodes, which are essential for efficient power conversion systems. In the aerospace industry, silicon carbide components are used for their high strength-to-weight ratio and resistance to extreme temperatures. The automotive industry also benefits from SiC, particularly in the production of brake discs and other wear-resistant components.
The production of silicon carbide components involves significant energy consumption, particularly during the sintering process. Therefore, there is a growing interest in developing more energy-efficient sintering techniques. Additionally, the environmental impact of silicon carbide production is relatively low compared to other materials, as it is primarily made from silicon and carbon, which are abundant elements. However, the use of binders and other additives can introduce environmental concerns, highlighting the need for sustainable production practices.
Molding silicon carbide into specific shapes is a complex process that requires careful selection of techniques based on the desired application. From dry pressing to slip casting, each method offers unique advantages. Understanding these processes is crucial for optimizing the production of silicon carbide components. As technology continues to evolve, silicon carbide will play an increasingly important role in various industries, driven by its exceptional properties and versatility.
The primary molding techniques for silicon carbide include dry pressing, isostatic pressing, and slip casting. Each method has its own advantages and is chosen based on the desired shape and application.
Sintering is crucial for achieving full density and strength in silicon carbide components. It involves heating the material to high temperatures, often with or without pressure, to enhance its mechanical properties.
Slip casting differs from other techniques like dry pressing and isostatic pressing because it involves creating a slurry that is poured into a mold. This method is particularly useful for producing components with complex shapes.
Challenges in molding silicon carbide include achieving uniform density, minimizing defects, and ensuring that the material retains its properties during the molding and sintering processes.
Emerging applications of silicon carbide include its use in semiconductor devices, particularly in the power electronics industry, and in advanced ceramic components for aerospace and automotive industries.
