Silicon carbide (SiC) is a compound of silicon and carbon, renowned for its exceptional hardness, thermal conductivity, and chemical stability. It is widely used in various applications, including abrasives, semiconductors, and high-performance ceramics. The production of silicon carbide primarily occurs through the Acheson process, which was developed by Edward Acheson in the late 19th century. This article delves into the intricacies of how silicon carbide is made, exploring the processes, materials involved, and various applications of this remarkable material.
The Acheson process is the most common method for producing silicon carbide. It involves heating a mixture of silica (SiO₂) and carbon (C) in an electric resistance furnace at extremely high temperatures, typically between 1,600°C (2,910°F) and 2,500°C (4,530°F). The chemical reaction that takes place can be summarized as follows:
SiO2+3C→SiC+2CO
This reaction illustrates how silica and carbon combine to form silicon carbide and carbon monoxide (CO) as a byproduct.
The primary raw materials for silicon carbide production are:
- Silica Sand: Composed mainly of silicon dioxide (SiO₂), it serves as the source of silicon.
- Carbon Source: Typically petroleum coke or anthracite coal is used due to its high carbon content.
In some cases, additives such as sawdust or salt may be included to facilitate gas escape during the reaction.
The Acheson furnace is a crucial component of the production process. It consists of a cylindrical chamber lined with graphite electrodes that generate heat through electrical resistance. The design allows for:
- High Temperature: The furnace can reach temperatures necessary for the carbothermal reduction reaction to occur.
- Controlled Environment: The atmosphere within the furnace can be controlled to optimize the reaction conditions.
1. Mixing Raw Materials: Silica sand and petroleum coke are mixed in specific proportions to ensure optimal reaction efficiency.
2. Loading into the Furnace: The mixture is placed inside the Acheson furnace.
3. Heating: An electric current passes through the graphite electrodes, heating the mixture to temperatures exceeding 2,000°C.
4. Chemical Reaction: As the temperature rises, silica and carbon react to form silicon carbide crystals around the graphite electrodes.
5. Cooling: Once the reaction is complete, the furnace is allowed to cool down gradually.
6. Harvesting: The solidified silicon carbide ingots are removed from the furnace for further processing.
Silicon carbide can be produced in various forms depending on its intended application:

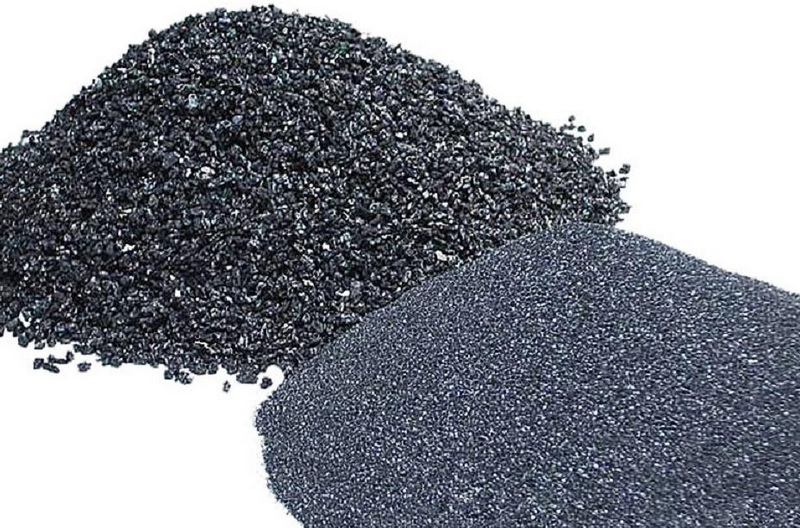

- Black Silicon Carbide: Typically produced from lower purity raw materials; it is used for grinding and polishing applications.
- Green Silicon Carbide: Made from higher purity materials; it is often used in high-performance applications like semiconductor manufacturing.
- Metallurgical Grade SiC: Used primarily in steelmaking and other metallurgical processes.
- Beta-Silicon Carbide: This form has a cubic crystal structure and is often used in high-temperature applications due to its enhanced thermal stability.
- Alpha-Silicon Carbide: Exhibiting a hexagonal crystal structure, alpha-SiC is known for its hardness and is commonly used in abrasive products.
While the Acheson process dominates silicon carbide production, other methods have emerged:
- Physical Vapor Transport (PVT): Used primarily for producing high-purity single crystals of SiC for semiconductor applications. In this method, SiC powder sublimates into gaseous species that then deposit onto a substrate to form single-crystal layers.
- Lely Process: Involves sublimation of SiC powder into high-temperature species to grow large single crystals. This technique allows for precise control over crystal growth conditions.
- Chemical Vapor Deposition (CVD): Utilized for producing thin films of silicon carbide on substrates for electronic devices. CVD processes can create high-quality SiC layers with excellent uniformity and low defect density.
Silicon carbide's unique properties make it suitable for a wide range of applications:
- Abrasives: Due to its hardness, it is widely used in grinding wheels, sandpaper, and cutting tools. Black SiC is particularly popular for these uses due to its cost-effectiveness.
- Semiconductors: SiC is increasingly used in power electronics due to its ability to operate at high voltages and temperatures. Devices like MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) made from SiC are crucial for efficient energy conversion systems.
- Refractories: Its thermal stability makes it ideal for kiln furniture and other high-temperature applications where materials must withstand extreme conditions without degrading.
- LED Technology: SiC substrates are used in manufacturing LEDs due to their excellent thermal conductivity. This property helps dissipate heat effectively during operation, enhancing LED performance and lifespan.
- Automotive Applications: With growing interest in electric vehicles (EVs), SiC components are becoming essential in power management systems due to their efficiency at high temperatures and voltages.
- Aerospace Industry: The lightweight nature and strength of SiC make it suitable for aerospace applications where both performance and weight savings are critical factors.
The production of silicon carbide also raises environmental concerns that need addressing:
- Energy Consumption: The Acheson process requires significant energy input due to the high temperatures needed for production. Efforts are ongoing to improve energy efficiency within this process.
- Carbon Emissions: As carbon sources are utilized during production, there are associated carbon emissions that contribute to environmental pollution. Research into alternative methods or raw materials aims to mitigate these impacts.
- Recycling Potential: Recycling waste materials from SiC production could reduce environmental footprints while providing additional raw materials for future production cycles.
Silicon carbide is a versatile material with numerous industrial applications stemming from its unique properties. The Acheson process remains the cornerstone of SiC production due to its efficiency and scalability. As technology advances, alternative methods like PVT and CVD are gaining prominence for specialized applications. Understanding how silicon carbide is made not only highlights its significance in modern manufacturing but also underscores its potential in emerging technologies such as power electronics and advanced ceramics. With ongoing research focused on improving production methods and addressing environmental concerns, silicon carbide will likely continue playing a vital role across various industries well into the future.
The primary raw materials are silica sand (SiO₂) and carbon sources like petroleum coke or anthracite coal.
The Acheson process requires temperatures between 1,600°C (2,910°F) and 2,500°C (4,530°F).
Silicon carbide can be produced as black SiC for abrasives or green SiC for higher purity applications such as semiconductors.
Silicon carbide is used in abrasives, semiconductors, refractories, automotive components, LED technology, and aerospace applications due to its hardness and thermal stability.
Yes, alternative methods include Physical Vapor Transport (PVT), Lely Process, and Chemical Vapor Deposition (CVD).
