Boron carbide abrasive is a remarkable material widely recognized for its exceptional hardness, chemical stability, and versatility in industrial applications. Often referred to as "black diamond," boron carbide (B4C) ranks as one of the hardest synthetic materials available, surpassed only by diamond and cubic boron nitride. This article explores the extensive industrial uses of boron carbide abrasive, its properties, advantages, and why it is preferred across sectors such as manufacturing, defense, nuclear, and more.
Boron carbide abrasive is a ceramic compound composed of boron and carbon atoms. Its outstanding hardness (Mohs hardness of approximately 9.3 to 9.5) and low density (about 2.52 g/cm3) make it an ideal abrasive for cutting, grinding, and polishing extremely hard materials. It also exhibits excellent chemical inertness and thermal stability, which enhances its durability in harsh industrial environments[1][2][5][9].
| Property | Value/Description |
|---|---|
| Chemical Formula | B4C |
| Mohs Hardness | 9.3 - 9.5 (second to diamond and CBN) |
| Density | ~2.52 g/cm3 |
| Melting Point | ~2445 °C |
| Thermal Conductivity | 30 – 42 W/m·K |
| Elastic Modulus | 450 – 480 GPa |
| Fracture Toughness | 2.9 – 4 MPa·m1/2 |
| Neutron Absorption | High absorption cross-section |
| Chemical Stability | Resistant to acids, alkalis, and heat |
These properties enable boron carbide abrasive to perform effectively in applications demanding high wear resistance, thermal endurance, and chemical inertness[5][9][14].
Boron carbide abrasive is extensively used in abrasive powders and pastes for lapping, polishing, and ultrasonic cutting of hard materials such as metals, ceramics, and gemstones. Its hardness allows it to outperform traditional abrasives like aluminum oxide and silicon carbide, providing faster cutting rates and superior surface finishes[2][4][12].
- Lapping and Polishing: Used for precision finishing of optical lenses, semiconductors, and hard metals.
- Ultrasonic Cutting: Enables intricate shaping and drilling of brittle materials like glass and ceramics.
- Wire Sawing: Boron carbide abrasive powders are used in wire saws to cut sapphire and technical ceramics with high precision[12].
Due to its extreme hardness and abrasion resistance, boron carbide abrasive is used in manufacturing wear parts such as blasting nozzles, wire-drawing dies, and sealing rings. These components endure high erosion and mechanical wear, making boron carbide an ideal material to extend their operational life[1][5][6][8].
- Sandblasting and Water Jet Nozzles: Boron carbide nozzles resist wear better than tungsten carbide or silicon carbide, reducing downtime and replacement costs.
- Wire Drawing Dies: Boron carbide abrasive enhances durability and precision in wire manufacturing.
- Seal Rings and Ceramic Molds: Used in harsh environments requiring chemical and thermal resistance.
Boron carbide abrasive plays a critical role in nuclear technology due to its high neutron absorption cross-section. It is used in control rods, neutron shielding, and radiation protection components in nuclear reactors. Its ability to absorb neutrons without forming long-lived radioactive isotopes makes it invaluable for reactor safety and efficiency[1][5][9][11].
- Control Rods: Boron carbide pellets regulate nuclear fission reactions.
- Shielding Materials: Protect personnel and equipment from neutron radiation.
- Additives in Concrete: Enhances neutron absorption in nuclear facility construction.

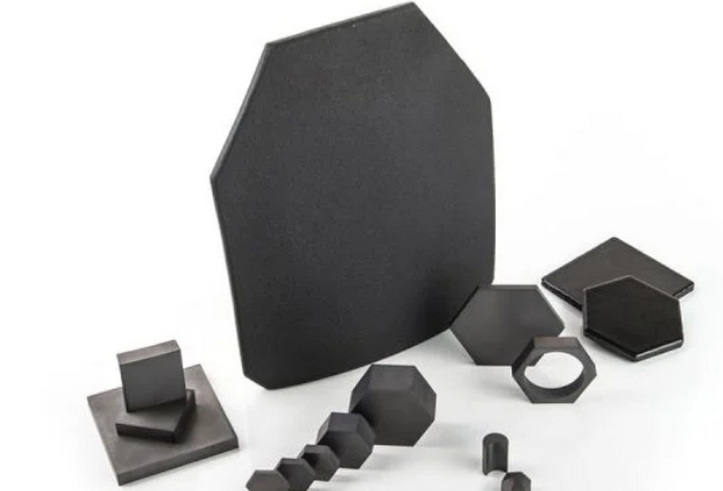

Boron carbide abrasive is a key material in ballistic armor due to its combination of low density and high hardness. It is used in personal body armor, vehicle armor, and military-grade protective gear. The material's high elastic modulus and fracture toughness allow it to stop high-velocity projectiles effectively[1][5][6][7].
- Body Armor Plates: Lightweight and highly resistant to penetration.
- Vehicle Armor: Provides enhanced protection without excessive weight.
- Protective Coatings: Boron carbide coatings improve wear resistance of defense equipment.
In the iron and steel industry, boron carbide abrasive is used as an antioxidant additive in low-carbon magnesia-carbon bricks and castables. It protects refractory materials from oxidation and erosion at high temperatures, improving the lifespan and performance of ladles, nozzles, and other furnace components[1][8][14].
- Antioxidant Additive: Enhances resistance of refractory bricks.
- Wear Parts: Used in high-temperature erosion-resistant components.
- Boronizing Agent: Boron carbide powder is used to boronize steel surfaces, increasing hardness and wear resistance.
- Exceptional Hardness: Enables efficient machining and polishing of extremely hard materials.
- Chemical Inertness: Resistant to acids, alkalis, and high temperatures.
- Low Density: Lightweight, beneficial for aerospace and defense applications.
- Thermal Stability: Maintains performance under high heat.
- Neutron Absorption: Critical for nuclear safety applications.
- Cost-Effectiveness: Outperforms conventional abrasives in efficiency and durability[2][5][6][9].
Boron carbide abrasive is available in a wide range of grit sizes, from very coarse (80-120) to ultra-fine (1300-1500), suitable for various industrial applications from rough grinding to precision lapping[2][11].
| Grit Size | Typical Application |
|---|---|
| Very Coarse (80-120) | Coarse grinding and shaping |
| Medium (250-300) | General grinding and polishing |
| Fine (360-400) | Precision finishing and lapping |
| Ultra Fine (1300-1500) | High-precision polishing and surface finishing |
Boron carbide abrasive is a vital industrial material whose unique combination of extreme hardness, chemical stability, and neutron absorption capabilities make it indispensable across multiple industries. From precision abrasive powders used in cutting and polishing to critical components in nuclear reactors and ballistic armor, boron carbide abrasive continues to enable advanced manufacturing and safety technologies. Its cost-effectiveness and performance superiority over traditional abrasives ensure that boron carbide remains a material of choice for demanding industrial applications.
Boron carbide abrasive ranks just below diamond and cubic boron nitride in hardness due to its strong covalent bonding and crystal structure. This hardness allows it to cut and polish extremely tough materials efficiently[1][5].
It is widely used in manufacturing (cutting, grinding, polishing), nuclear industry (control rods, shielding), defense (ballistic armor), and metallurgy (refractory materials and wear parts)[1][5][8].
Its high neutron absorption cross-section enables it to absorb neutrons effectively without producing long-lived radioactive isotopes, making it ideal for control rods and radiation shielding[1][9][11].
Boron carbide abrasive nozzles provide superior wear resistance, longer service life, and higher cutting efficiency compared to traditional materials like tungsten carbide or silicon carbide[5][8].
Yes, boron carbide abrasive powders are used for lapping and polishing natural and synthetic gemstones due to their ability to produce high-quality surface finishes[2][12].
