Silicon carbide, commonly known as carborundum, is a compound made of silicon and carbon. It is renowned for its exceptional hardness, thermal conductivity, and electrical conductivity, making it a versatile material in various industrial applications. This article delves into the hardness of silicon carbide on the Mohs scale, its crystal structures, and its diverse applications.
Silicon carbide is synthesized through the reaction of silicon and carbon at high temperatures. The resulting material exhibits remarkable properties, including high hardness, thermal resistance, and electrical conductivity. These attributes make silicon carbide indispensable in sectors such as electronics, automotive, aerospace, and renewable energy.
Silicon carbide exists in over 200 crystalline forms, with the most common being the 3C, 6H, and 4H polytypes. These polytypes have different bandgaps, which influence their electronic and optical properties. The crystal structure significantly affects the hardness of silicon carbide, with hexagonal structures generally being harder than cubic ones due to their tighter atomic bonding.

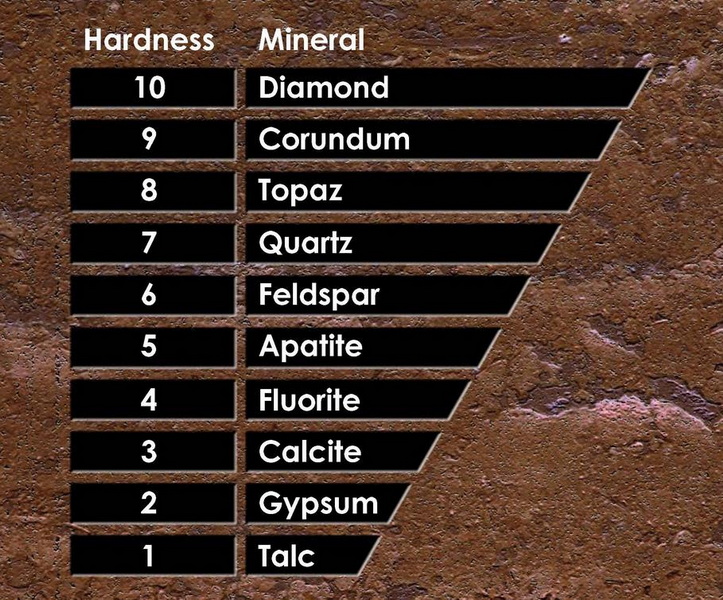

The Mohs hardness scale is a qualitative ordinal scale used to measure the scratch resistance of minerals. It ranges from 1 (talc) to 10 (diamond), with higher numbers indicating greater hardness. Silicon carbide has a Mohs hardness of 9 to 9.5, placing it among the hardest substances known, just below diamond and boron carbide.
- Black Silicon Carbide: Typically has a Mohs hardness of 9.2 to 9.3.
- Green Silicon Carbide: Exhibits a Mohs hardness of 9.4 to 9.5.
In addition to the Mohs scale, silicon carbide's hardness can also be measured using the Vickers hardness test. This method involves applying a load to the material's surface and measuring the resulting indentation. Silicon carbide generally has a Vickers hardness ranging from 2800 to 3400 HV, with black silicon carbide typically between 2800-3200 HV and green silicon carbide between 3100-3400 HV.
Silicon carbide's unique properties make it suitable for a wide range of applications:
1. Abrasives and Cutting Tools: Low-purity silicon carbide is used in abrasives due to its hardness and cost-effectiveness. It is commonly found in sandpaper, grinding wheels, and other abrasive tools.
2. Semiconductors: High-purity silicon carbide is used in the semiconductor industry for its high thermal conductivity and electrical properties. It is particularly useful in high-power electronic devices where heat dissipation is crucial.
3. Automotive and Aerospace: Silicon carbide components are used in high-performance car brakes and aerospace applications due to their thermal resistance and durability. In automotive, silicon carbide brake discs offer improved braking performance and longer lifespan compared to traditional materials.
4. Renewable Energy: Silicon carbide is used in solar inverters and energy storage systems for its efficiency and reliability. It enhances the performance of power electronics by allowing higher power density and efficiency.
5. Medical Applications: Silicon carbide is also explored in medical devices due to its biocompatibility and durability. It can be used in implants and surgical instruments.
The production of silicon carbide involves several steps:
1. Raw Materials: Silicon and carbon are the primary raw materials. Silicon is typically derived from silicon dioxide (sand), while carbon can come from petroleum coke or other carbon-rich materials.
2. Synthesis: The silicon and carbon are mixed and heated in an electric arc furnace at extremely high temperatures (around 2000°C) to form silicon carbide.
3. Purification: The resulting silicon carbide is then purified to remove impurities and achieve the desired purity level for specific applications.
4. Sintering: For applications requiring high density and strength, silicon carbide powder is sintered under high pressure and temperature.
As technology advances, silicon carbide is expected to play an increasingly important role in the development of high-performance electronics and renewable energy systems. Its ability to handle high voltages and temperatures makes it ideal for electric vehicles and grid-scale energy storage systems. Additionally, ongoing research aims to improve the efficiency and cost-effectiveness of silicon carbide production, which could further expand its applications.
Despite its advantages, silicon carbide faces challenges such as high production costs and the need for sophisticated manufacturing processes. However, these challenges also present opportunities for innovation and investment in new technologies that could reduce costs and improve efficiency.
Silicon carbide is an exceptionally hard material with a Mohs hardness of 9 to 9.5, making it ideal for various industrial and technological applications. Its diverse crystal structures and properties contribute to its versatility in fields such as electronics, automotive, and renewable energy.
Silicon carbide typically has a Mohs hardness between 9 and 9.5, with black silicon carbide ranging from 9.2 to 9.3 and green silicon carbide from 9.4 to 9.5.
The crystal structure significantly affects the hardness of silicon carbide. Generally, hexagonal silicon carbide is harder than cubic silicon carbide due to its tighter atomic bonding.
Silicon carbide is used in abrasives, semiconductors, automotive components (like high-performance brakes), aerospace, and renewable energy systems due to its hardness, thermal conductivity, and electrical properties.
Silicon carbide is synthesized by heating silicon and carbon at high temperatures, resulting in a compound with exceptional hardness and thermal resistance.
Silicon carbide offers higher power density, efficiency, and thermal conductivity compared to traditional materials, making it ideal for high-performance power devices and systems.
