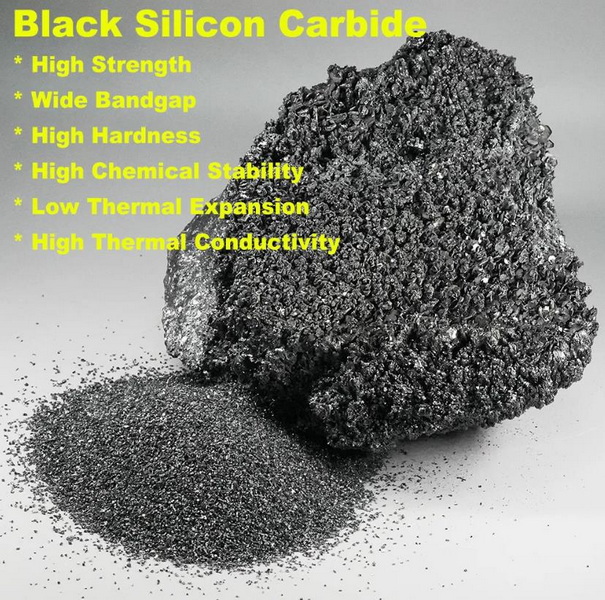

Silicon carbide, commonly known as SiC, is a compound made of silicon and carbon atoms. It is renowned for its exceptional hardness, which makes it a crucial material in various industrial applications. The hardness of silicon carbide is often measured using the Mohs scale, a method developed by Friedrich Mohs in 1812 to rank minerals based on their scratch resistance. In this article, we will delve into the hardness of silicon carbide, its measurement methods, and its applications.
Silicon carbide is composed of silicon and carbon atoms arranged in a tetrahedral structure, which contributes to its remarkable hardness and strength. It is used in a wide range of applications, including cutting tools, wear-resistant parts, and high-performance ceramics.
Silicon carbide exists in several crystal structures, primarily cubic (β-SiC) and hexagonal (α-SiC). The hexagonal structure generally exhibits higher hardness due to its tighter atomic bonding and more stable crystal arrangement. This structural variation allows silicon carbide to be tailored for specific applications, where different properties are required.
The hardness of silicon carbide can be measured using several methods:
1. Mohs Hardness Scale: This scale ranks minerals based on their scratch resistance. Silicon carbide typically has a Mohs hardness between 9 and 9.5, although some sources suggest a new Mohs hardness of 13, placing it among the hardest materials known, surpassed only by diamond and boron carbide.
2. Vickers Hardness Test: This method involves applying a load to the material's surface and measuring the resulting indentation. Silicon carbide's Vickers hardness ranges from 2800 to 3400 HV, depending on the type and purity of the material.
3. Knoop Hardness Test: Similar to the Vickers test, but it uses a different indenter shape. Silicon carbide's Knoop hardness is typically between 25,000 and 30,000 N/mm².
Several factors can influence the hardness of silicon carbide:
- Crystal Structure: Hexagonal structures are generally harder than cubic ones.
- Purity: Higher purity materials tend to be harder.
- Sintering Degree: A higher sintering degree can increase hardness.
- Grain Size: Smaller grain sizes contribute to higher hardness.
The exceptional hardness and mechanical properties of silicon carbide make it suitable for various demanding applications:
1. Cutting Tools: Silicon carbide is used in cutting tools due to its high wear resistance and ability to maintain sharpness. It is particularly effective in machining hard materials like steel and titanium.
2. Wear-Resistant Parts: It is used in components that require high durability and resistance to abrasion, such as seals, bearings, and pump parts.
3. Aerospace and Automotive Industries: Silicon carbide's strength and resistance to deformation make it ideal for components in these industries, including brake discs and ceramic composite materials.
4. Protective Coatings: Its hardness and structural stability are beneficial for protective coatings in harsh environments, such as in chemical processing equipment.
5. Semiconductor Applications: Silicon carbide is used in the production of high-power semiconductors due to its excellent thermal conductivity and electrical properties.
To further enhance the hardness of silicon carbide, several methods can be employed:
- Doping and Alloying: Techniques like solid solution doping and ion implantation can improve hardness by introducing impurities that strengthen the crystal structure.
- Surface Treatment: Coating and plating can increase surface hardness and reduce wear by adding a protective layer.
Despite its many advantages, silicon carbide faces challenges in terms of production costs and scalability. Research is ongoing to improve manufacturing processes and reduce costs, making silicon carbide more accessible for widespread use. Additionally, advancements in nanotechnology and composite materials are expected to further enhance the properties of silicon carbide, opening up new applications in fields like energy storage and medical devices.
Silicon carbide is an exceptionally hard material, with a Mohs hardness typically ranging between 9 and 9.5, although recent classifications suggest a higher value of 13. Its hardness, combined with its mechanical strength and durability, makes it a vital component in various industrial applications. Understanding and enhancing the hardness of silicon carbide are crucial for optimizing its performance in demanding environments.
Silicon carbide typically has a Mohs hardness between 9 and 9.5, but some classifications suggest a new Mohs hardness of 13.
The hexagonal crystal structure generally exhibits higher hardness than the cubic structure due to tighter atomic bonding.
Silicon carbide is used in cutting tools, wear-resistant parts, aerospace, automotive industries, and protective coatings due to its hardness and durability.
The hardness can be enhanced through doping, alloying, and surface treatments like coating and plating.
Factors influencing hardness include crystal structure, purity, sintering degree, and grain size.
