Silicon carbide (SiC) is a compound that has gained significant attention in various industries due to its exceptional properties, including high hardness, thermal stability, and chemical resistance. These attributes make SiC an ideal candidate for applications in electronics, aerospace, automotive, and more. However, the question arises: Can silicon carbide be machined? This article delves into the intricacies of machining silicon carbide, exploring the methods, challenges, and advancements in this field.
Silicon carbide is a binary compound composed of silicon and carbon. It exists in several crystalline forms, with the most common being 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal). SiC is renowned for its hardness (9-9.5 on the Mohs scale) and high thermal conductivity, making it suitable for high-performance applications. However, its extreme brittleness poses challenges in machining processes.
Understanding the properties of silicon carbide is essential for appreciating its machining challenges:
- Hardness: SiC is one of the hardest materials known, making it difficult to cut and shape.
- Thermal Conductivity: SiC has excellent thermal conductivity, which can lead to overheating during machining.
- Chemical Resistance: SiC is resistant to many chemicals, which can be beneficial in various environments but complicates certain machining processes.
- Brittleness: While hard, SiC is also brittle, meaning it can fracture under stress or impact.
Machining silicon carbide is notoriously difficult due to several factors:
- Brittleness: SiC's brittleness can lead to cracking during machining operations.
- Hardness: The high hardness of SiC requires specialized tools and techniques to achieve effective material removal.
- Thermal Conductivity: The ability of SiC to conduct heat can result in rapid tool wear and thermal damage during machining.
- Surface Finish Requirements: Many applications require a specific surface finish that can be challenging to achieve with conventional machining methods.
Despite these challenges, various machining methods have been developed to effectively process silicon carbide. Below are some of the most commonly used techniques:
Diamond grinding is one of the most prevalent methods for machining SiC. Diamond tools are employed due to their superior hardness, allowing them to effectively cut through SiC materials.
- Process: This involves using a rotating diamond wheel to grind down the surface of the SiC workpiece.
- Advantages: High precision and surface finish can be achieved with this method.
- Limitations: Tool wear can be significant, requiring frequent tool changes.
Ultrasonic-assisted machining involves using ultrasonic vibrations to enhance the grinding process.
- Process: The ultrasonic vibrations help in chip removal and reduce cutting forces.
- Advantages: This method can significantly reduce machining time and improve tool life by minimizing wear.
- Results: Studies have shown that ultrasonic-assisted grinding can achieve up to twice the efficiency compared to conventional grinding methods.
EDM is a non-conventional machining process that uses electrical discharges to remove material.
- Process: A series of rapid electrical discharges between an electrode and the workpiece erode the material.
- Advantages: EDM is particularly useful for intricate shapes and hard materials like SiC.
- Limitations: The process can be slow and requires careful control of parameters.
Laser machining utilizes focused laser beams to remove material from silicon carbide.
- Process: The laser heats the material to its melting point, causing it to vaporize or melt away.
- Advantages: This method allows for high precision and minimal thermal impact on surrounding areas.
- Challenges: It requires careful handling of gases produced during the process.
Hybrid machining combines multiple processes to enhance efficiency and effectiveness.
- Examples: Techniques such as laser-assisted grinding or EDM combined with ultrasonic vibrations are being explored.
- Benefits: These methods aim to leverage the strengths of each individual process while mitigating their weaknesses.
With ongoing research and technological advancements, several innovative techniques are emerging in the field of silicon carbide machining:
Water jet machining uses high-pressure water jets mixed with abrasives to cut through materials.
- Advantages: This method minimizes thermal effects on the material since it does not generate heat during cutting.
- Applications: Ideal for producing intricate shapes without altering the material properties.
Micro-machining involves removing very small amounts of material at a time using specialized tools.
- Process: Techniques such as laser micro-machining or micro-milling are employed for precision applications.
- Benefits: These techniques allow for detailed work on small components used in electronics or medical devices.

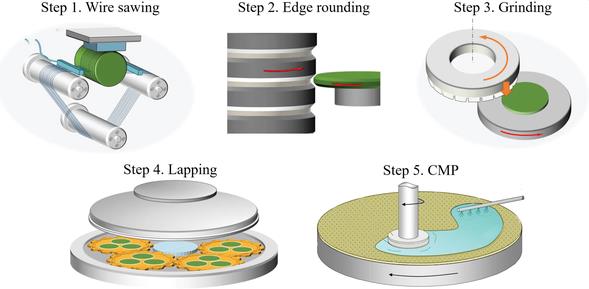

CMP combines chemical etching with mechanical polishing to achieve ultra-smooth surfaces.
- Process: A slurry containing abrasive particles is used alongside a polishing pad to refine the surface finish.
- Applications: Widely used in semiconductor manufacturing where surface quality is critical.
Machined silicon carbide finds applications across various sectors:
- Electronics: Used in power devices due to its high thermal conductivity and breakdown voltage. SiC MOSFETs are increasingly popular in power electronics because they handle higher voltages and temperatures than traditional silicon devices.
- Aerospace: Components such as turbine blades benefit from SiC's lightweight and strong properties. The aerospace industry values SiC for its ability to withstand extreme temperatures while maintaining structural integrity.
- Automotive: Brake discs made from SiC offer improved performance over traditional materials. The automotive sector utilizes SiC for electric vehicle components due to its efficiency in power conversion systems.
- Biomedical Devices: Its biocompatibility makes it suitable for certain medical applications such as implants or prosthetics where durability and resistance to wear are paramount.
As industries continue to evolve, so too will the methods used for machining silicon carbide:
1. Automation and Robotics: The integration of automation into manufacturing processes will enhance precision and efficiency in machining operations involving SiC.
2. Artificial Intelligence (AI): AI-driven analytics will optimize machining parameters based on real-time data, leading to improved outcomes in terms of speed and quality.
3. Sustainability Practices: As environmental concerns grow, there will be a push towards more sustainable practices within manufacturing processes that utilize silicon carbide.
4. Research Innovations: Ongoing research into new cutting materials and techniques will continue to address existing challenges associated with SiC machining.
Machining silicon carbide presents unique challenges due to its hardness and brittleness; however, advancements in technology have led to effective methods such as diamond grinding, ultrasonic-assisted machining, EDM, laser machining, hybrid techniques, water jet machining, micro-machining, and chemical mechanical polishing. These processes enable manufacturers to harness the exceptional properties of SiC for a variety of high-performance applications across diverse industries.
The primary challenges include its brittleness leading to cracking, high hardness requiring specialized tools, thermal conductivity causing rapid tool wear, and achieving specific surface finish requirements.
Diamond grinding is preferred due to diamonds' superior hardness, which allows effective cutting through hard materials like silicon carbide while achieving high precision.
Ultrasonic-assisted machining enhances efficiency by reducing cutting forces and improving chip removal rates, leading to shorter processing times compared to conventional methods.
Applications include electronics (power devices), aerospace (turbine blades), automotive (brake discs), and biomedical devices due to its unique properties such as high thermal conductivity and chemical resistance.
Yes, laser machining can produce toxic gases during processing; therefore, proper ventilation and safety measures are essential during operations.
