Boron carbide body armor has become a cornerstone of modern ballistic protection, widely used by military and law enforcement agencies worldwide. Its unique combination of extreme hardness, lightweight nature, and exceptional resistance to impact makes it an ideal choice for personal protection in high-risk environments. This comprehensive article explores what makes boron carbide body armor so effective, delving into its material properties, manufacturing processes, ballistic performance, applications, and future developments.

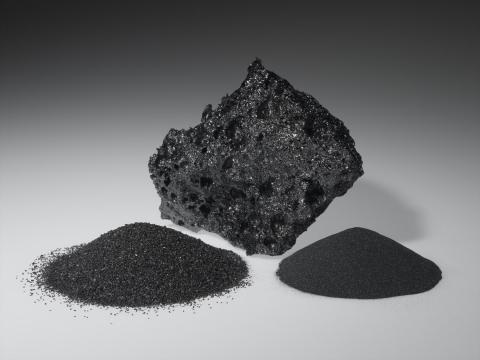

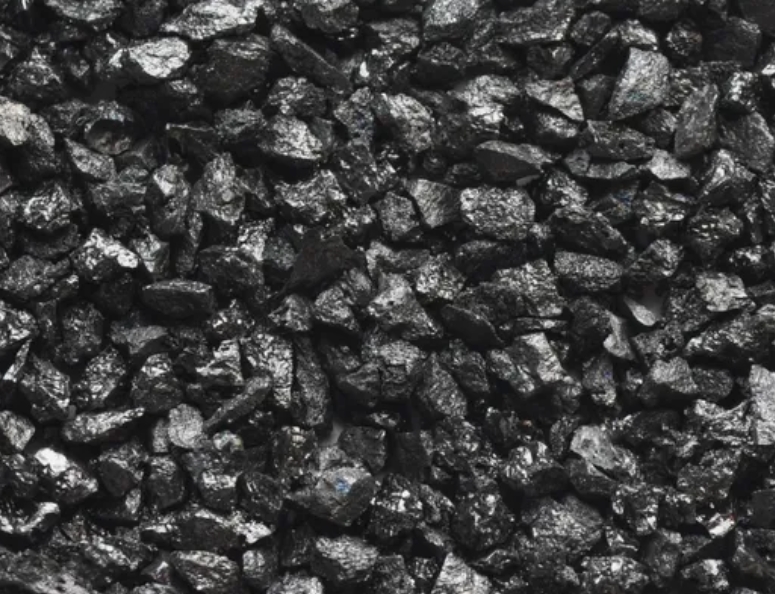

Boron carbide (B₄C) is a ceramic material known for its extreme hardness-ranking third after diamond and cubic boron nitride-and its low density (~2.52 g/cm3). These properties make it an ideal material for body armor, providing high levels of protection while minimizing weight.
Boron carbide body armor typically consists of ceramic plates made from dense, sintered B₄C powder, often backed by composite materials like Kevlar or ultra-high molecular weight polyethylene (UHMWPE) to absorb residual energy and prevent penetration.
| Property | Description |
|---|---|
| Chemical Formula | B₄C (approximate) |
| Density | ~2.52 g/cm3 (lightweight) |
| Hardness (Mohs) | 9.5 (extremely hard) |
| Melting Point | ~2450 °C |
| Flexural Strength | ~400 MPa |
| Fracture Toughness | ~3.5 MPa·m1/2 |
| Thermal Conductivity | High (~30 W/m·K) |
| Chemical Stability | Highly inert and corrosion resistant |
These properties contribute directly to the armor's ability to resist penetration, absorb kinetic energy, and maintain structural integrity under extreme conditions.
The manufacturing process involves:
- Powder synthesis: High-purity boron carbide powder is produced via carbothermal or magnesiothermal reduction.
- Powder processing: The powder is milled and classified to achieve uniform particle size and purity.
- Sintering: Hot pressing or spark plasma sintering densifies the powder into ceramic plates.
- Machining: Due to extreme hardness, diamond tools are used to shape and finish plates to precise dimensions.
- Composite assembly: Plates are combined with fiber backings to absorb residual energy and prevent spallation.
Innovations like drilling holes in pre-sintered plates reduce manufacturing costs and improve efficiency.
When a projectile strikes boron carbide armor:
- The ceramic surface fractures locally, absorbing and dissipating the bullet's kinetic energy.
- The hard ceramic breaks the projectile, reducing its penetration capability.
- The backing material absorbs residual energy and captures fragments from both the projectile and ceramic.
- This combination prevents penetration and reduces blunt force trauma to the wearer.
- Superior Hardness: Provides excellent resistance to penetration.
- Lightweight: Reduces fatigue and increases mobility.
- Multi-hit Capability: Can withstand multiple impacts with minimal loss of protection.
- Thermal Stability: Maintains performance under extreme temperatures.
- Chemical Inertness: Resistant to corrosion and environmental degradation.
- Enhanced Mobility: Lightweight design improves operational effectiveness.
- Personal Protective Equipment: Used in Small Arms Protective Inserts (SAPI) and Enhanced SAPI (ESAPI) plates worn by military and law enforcement personnel.
- Vehicle Armor: Reinforces armored personnel carriers, tanks, helicopters, and aircraft.
- Ballistic Shields: Provides lightweight, portable protection for tactical teams.
- Specialized Defense Systems: Integrated into naval vessels, aerospace components, and critical infrastructure protection.
- Brittleness: Susceptible to cracking or shattering under certain impact conditions.
- High Cost: Manufacturing and raw materials are expensive compared to other ceramics.
- Machining Difficulty: Requires specialized diamond tooling and processes.
- Supply Constraints: Limited production capacity affects availability.
Recent advancements have significantly improved the quality and performance of boron carbide armor plates. Techniques such as spark plasma sintering (SPS) allow rapid densification at lower temperatures, reducing grain growth and enhancing mechanical properties. Additionally, additive manufacturing (3D printing) is being explored to create complex geometries and reduce material waste.
Laser machining and waterjet cutting have improved the precision and efficiency of shaping boron carbide plates, overcoming challenges posed by its extreme hardness and brittleness.
Ongoing research focuses on enhancing the toughness and multi-hit capability of boron carbide armor. For example, silicon doping has been shown to reduce phase transformations during ballistic impacts, improving durability. Composite ceramics combining boron carbide with silicon carbide or other materials aim to balance hardness with improved fracture toughness.
Nanostructured boron carbide powders are also being developed to optimize sintering and mechanical properties, potentially leading to lighter and stronger armor.
Field reports from military deployments highlight the effectiveness of boron carbide armor plates in protecting personnel from high-velocity rifle rounds and shrapnel. Studies indicate a significant reduction in penetration and blunt force trauma compared to traditional steel armor.
In vehicle armor applications, boron carbide plates have contributed to enhanced mobility due to weight savings, while maintaining or improving protection levels.
Compared to alumina and silicon carbide ceramics, boron carbide offers superior hardness and lower density, making it the preferred choice for weight-sensitive applications. While alumina is more cost-effective, its higher density and lower hardness limit its use in advanced ballistic protection.
Steel armor, though tough and ductile, is significantly heavier, reducing wearer mobility and increasing fatigue.
The future of boron carbide armor includes integration with smart materials and sensors for real-time damage assessment. Research into self-healing ceramics and hybrid composites aims to extend armor lifespan and performance.
Environmental sustainability is also a focus, with efforts to reduce energy consumption during manufacturing and recycle armor components.
Boron carbide body armor plates represent a pinnacle of modern ballistic protection technology. Their combination of extreme hardness, lightweight design, and chemical and thermal stability makes them ideal for personal body armor, vehicle and aircraft protection, and specialized industrial applications. Despite challenges such as brittleness and high cost, ongoing research and manufacturing innovations continue to enhance their performance and accessibility. Understanding the properties and applications of boron carbide body armor plates is essential for selecting effective protective solutions in defense and beyond.
Its exceptional hardness, lightweight design, and energy absorption capabilities provide superior ballistic protection.
Through powder synthesis, sintering, machining, and composite assembly with fiber backings.
Yes, it has multi-hit capability, though performance may degrade after repeated impacts.
Yes, it is significantly lighter than steel or other ceramic armors.
Yes, including silicon doping and additive manufacturing to enhance toughness and impact resistance.
