Boron carbide (B₄C) is a highly valued ceramic material known for its exceptional hardness, thermal stability, and neutron absorption capabilities. Its molecular structure consists of B₁₂ icosahedra linked by three-atom C-B-C chains, forming a rhombohedral lattice. This article explores the types of bonds in boron carbide, its properties, synthesis methods, and applications, supported by scientific data, visual aids, and practical examples.
Boron carbide is composed primarily of boron and carbon, with a complex crystal structure featuring B₁₂ icosahedra interconnected by C-B-C chains. The structure is layered, with B₁₂ icosahedra and bridging carbons forming a network plane parallel to the c-plane.
Boron carbide exhibits strong covalent bonding between boron and carbon atoms. The B₁₂ icosahedra are linked by three-atom C-B-C chains, which provide structural integrity and contribute to its hardness.
The short bond lengths within the C-B-C chains are due to substantial π-bonding, which enhances the stability of these chains and contributes to the material's hardness.
Boron carbide has an electron deficiency, leading to disorder in its structure. This disorder results in a semiconductor nature, with localized electronic states contributing to its semiconducting properties.
Table: Key Bonding Features of Boron Carbide
| Bond Type | Description |
|---|---|
| Covalent Bonds | Strong B-C bonds in icosahedra and chains |
| π-Bonding | Enhances stability of C-B-C chains |
| Electron Deficiency | Leads to semiconductor behavior |
Boron carbide is known for its hardness (9.3–9.75 Mohs), ranking third after diamond and cubic boron nitride. Its durability makes it ideal for wear-resistant components and abrasive tools.
It has a high neutron absorption cross-section, making it crucial for neutron shielding in nuclear reactors.
Boron carbide exhibits p-type semiconductor properties, useful in high-temperature electronic devices.
Boron carbide is synthesized primarily through the carbothermal reduction of boric oxide (B₂O₃) with carbon in an electric arc furnace. The reaction occurs at temperatures above 2,000°C:
2B2O3+7C→B4C+6CO
This method produces high-purity boron carbide powder, which is then milled and purified for various applications.
- Magnesiothermic Reduction: Uses magnesium to reduce boric oxide in the presence of carbon, producing ultrafine boron carbide particles.
- Chemical Vapor Deposition (CVD): Creates boron carbide coatings by reacting boron halides with carbon sources.

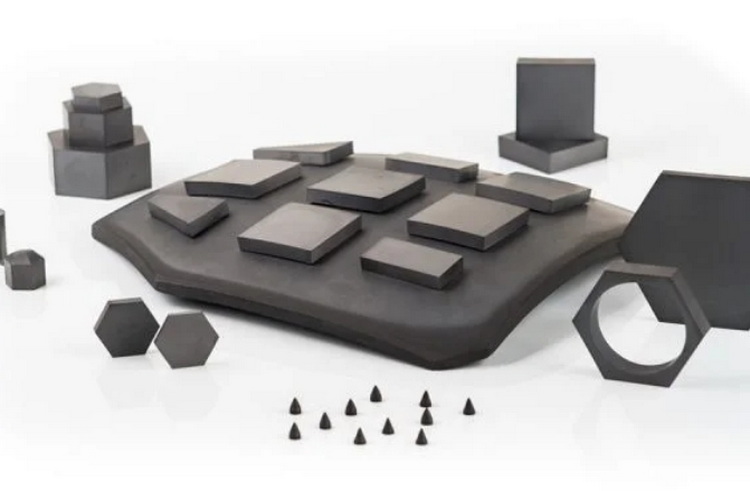

Used in body armor and vehicle plating due to its lightweight and hardness.
Employed in control rods and neutron shielding for nuclear reactors.
Ideal for grinding and polishing hard materials like tungsten carbide.
Used in lightweight composites for aircraft components.
1. High Energy Costs: The carbothermal reduction process requires significant energy.
2. Material Purity: Achieving high purity is challenging due to impurities during synthesis.
3. Sintering Difficulty: Boron carbide is hard to sinter to full density without dopants.
1. Advanced Sintering Techniques: Improvements in hot pressing and sinter HIP to enhance density and purity.
2. Nanoparticle Synthesis: Developing ultra-fine boron carbide particles for advanced ceramics.
3. Sustainable Production Methods: Focus on reducing energy consumption and waste during synthesis.
Boron carbide is characterized by strong covalent bonds and π-bonding in its C-B-C chains, contributing to its hardness and semiconductor properties. Its applications span defense, nuclear, and aerospace industries. As technology advances, innovations in production methods will further enhance its utility across diverse sectors.
Boron carbide features strong covalent bonds between boron and carbon atoms, with π-bonding enhancing the stability of C-B-C chains.
The layered structure with B₁₂ icosahedra linked by C-B-C chains provides exceptional hardness due to strong covalent and π-bonding.
Yes—boron carbide exhibits semiconductor properties, making it suitable for high-temperature electronic devices.
The production process is energy-intensive but produces minimal waste, making it relatively environmentally friendly compared to other ceramics.
Boron carbide is less hard than diamond but still ranks among the hardest materials known.
