Silicon carbide is a fascinating compound formed by the elements silicon and carbon. This article delves deeply into the elemental nature, structure, properties, manufacturing processes, and wide-ranging applications of silicon carbide (SiC). Through detailed explanations and engaging visual and video content, you will gain a thorough understanding of this extraordinary material.
Silicon carbide is a compound consisting of silicon and carbon atoms bonded together in a crystal lattice. Its chemical formula, SiC, reflects the one-to-one ratio of silicon to carbon atoms. Known for its exceptional hardness and thermal stability, silicon carbide is used in numerous industries ranging from electronics to abrasives.

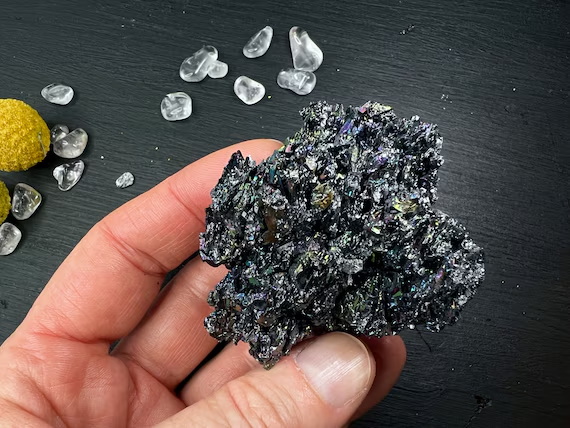

Though it occurs naturally as the rare mineral moissanite, most silicon carbide used commercially is synthetically produced due to the limited availability of natural sources.
- Silicon (Si): A metalloid element found abundantly in the Earth's crust, silicon is fundamental in semiconductor technology and forms the backbone of silicon carbide.
- Carbon (C): A versatile non-metal element, carbon forms various allotropes such as diamond and graphite, and in silicon carbide, it bonds with silicon to create a durable compound.
In silicon carbide, silicon and carbon atoms are bonded covalently in a tetrahedral arrangement, resulting in a strong, rigid crystal lattice that imparts remarkable mechanical and thermal properties.
Silicon carbide exists in many crystalline forms called polytypes. These polytypes share the same chemical formula but differ in the stacking sequence of their atomic layers, which affects their physical and electronic properties.
- Cubic Polytype: This form has a cubic crystal structure and is often formed at lower temperatures. It is used in some specialized electronic applications.
- Hexagonal Polytypes: These include several variations with hexagonal crystal structures. They are widely used in power electronics because of their favorable electrical characteristics.
The diversity of polytypes allows silicon carbide to be tailored for specific uses, enhancing its versatility across industries.
Silicon carbide is renowned for its extreme hardness, placing it among the hardest materials known. This hardness makes it ideal for abrasive applications and components requiring wear resistance.
The material boasts excellent thermal conductivity, which allows it to effectively dissipate heat. It also has a low coefficient of thermal expansion, meaning it maintains its shape and size even when subjected to temperature changes. Additionally, silicon carbide can withstand very high temperatures without degrading, thanks to a protective oxide layer that forms on its surface.
As a wide bandgap semiconductor, silicon carbide can operate at higher voltages, temperatures, and frequencies than traditional silicon. This makes it highly valuable in power electronics, LEDs, and sensor technologies.
Silicon carbide is chemically inert in most environments, resisting corrosion from acids, alkalis, and molten salts. This chemical resistance combined with its mechanical strength makes it suitable for harsh industrial environments.

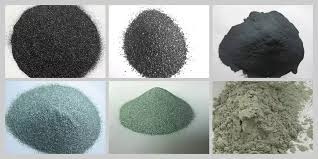

Since natural silicon carbide is rare, it is predominantly manufactured synthetically. One common method involves heating a mixture of silica and carbon sources in an electric furnace at very high temperatures. This process results in the formation of silicon carbide crystals and carbon monoxide gas.
High-quality single crystals of silicon carbide are produced using advanced methods such as sublimation and chemical vapor deposition. These crystals are then sliced into wafers used in semiconductor devices, enabling the production of high-performance electronic components.
Due to its hardness, silicon carbide is widely used in grinding wheels, sandpapers, and cutting tools. It efficiently machines hard materials and is favored in lapidary arts.
Silicon carbide is a critical material in power electronics, enabling devices that operate efficiently at high voltages and temperatures. This leads to improved energy efficiency and reduced cooling requirements in power systems.
In electric vehicles, silicon carbide components improve power module efficiency, contributing to longer driving ranges. Aerospace applications include turbine blades and heat exchangers, where SiC's high-temperature resistance is invaluable.
Its high melting point and thermal conductivity make silicon carbide suitable for kiln furniture, furnace linings, and crucibles used in high-temperature industrial processes.
Silicon carbide also serves as a catalyst support in chemical reactions and is used in artistic printmaking techniques due to its unique surface texture.
Silicon carbide is a compound formed by the elements silicon and carbon, bonded together in a way that produces a material with extraordinary hardness, thermal conductivity, chemical stability, and semiconductor capabilities. Its multiple crystal forms allow it to be customized for a wide range of applications, from abrasives and ceramics to cutting-edge electronics and aerospace components. The synthetic production of silicon carbide has made it widely accessible, fueling its growing importance in modern technology. As industries increasingly demand materials that perform reliably under extreme conditions, silicon carbide stands out as a critical material shaping the future of electronics, automotive, and industrial applications.
Silicon carbide is made from silicon and carbon atoms bonded together in a one-to-one ratio.
The strong covalent bonds between silicon and carbon atoms in a rigid crystal lattice give silicon carbide its exceptional hardness.
Silicon carbide is used in abrasives, power electronics, automotive components, aerospace parts, and refractory materials.
It is primarily produced synthetically by heating silica and carbon sources at high temperatures in an electric furnace, followed by crystal growth techniques for electronic-grade material.
Silicon carbide can operate at higher voltages and temperatures with greater efficiency, making it ideal for power devices and harsh environment applications.
