Silicon carbide (SiC) is a unique and versatile material known for its exceptional hardness, thermal conductivity, chemical stability, and semiconductor properties. Its wide-ranging applications in industries such as abrasives, refractories, electronics, and automotive components stem from its diverse structural forms and classifications. This comprehensive article explores the classification of silicon carbide, detailing its polymorphs, polytypes, manufacturing variations, and applications. Visual are incorporated throughout to enhance understanding, followed by a detailed FAQ section.
Silicon carbide is a compound of silicon and carbon atoms forming a highly stable crystal lattice. The material's classification is complex due to its numerous crystalline forms and manufacturing processes, each imparting distinct properties. These classifications influence SiC's suitability for various industrial and technological applications.
Polymorphism refers to the ability of a compound to exist in multiple crystal structures. Silicon carbide is notable for its extensive polymorphism, with over 200 identified crystalline forms. These polymorphs differ in the arrangement of atoms within the crystal lattice, leading to variations in physical and electronic properties.
Most SiC polymorphs are polytypes, which are variations of the same chemical compound that differ only in the stacking sequence of atomic layers along one crystallographic direction. The atoms in the layers are arranged identically in two dimensions but differ in the third.
- Stacking Sequences: The layers can be stacked in different sequences labeled A, B, and C, leading to various polytypes.
- Common Polytypes: Include 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal).
- Structure: Cubic zinc blende.
- Formation: Typically formed at lower temperatures.
- Properties: Highest electron mobility, lower bandgap.
- Applications: Emerging use in high-frequency devices and catalysts.
- Structure: Hexagonal with four-layer stacking.
- Properties: High electron mobility and wide bandgap.
- Applications: Power electronics, high-temperature devices.
- Structure: Hexagonal with six-layer stacking.
- Properties: Slightly lower electron mobility than 4H.
- Applications: Industrial power devices and sensors.
- 2H-SiC: Wurtzite-like hexagonal structure.
- 15R-SiC, 21R-SiC: Rhombohedral polytypes with complex stacking.
- Process: Sintering SiC powder with additives at high temperatures.
- Properties: High density, excellent mechanical strength.
- Applications: Mechanical seals, kiln furniture, wear parts.
- Process: Infiltrating porous carbon with molten silicon, reacting to form SiC.
- Properties: Lower density, residual free silicon.
- Applications: Wear-resistant components, mechanical seals.
- Process: Chemical vapor infiltration to deposit SiC on carbon preforms.
- Properties: High purity, good mechanical properties.
- Applications: High-performance ceramics, nuclear applications.
- Process: Gas-phase deposition of SiC films.
- Properties: Extremely pure, used for coatings and electronic devices.
- Applications: Semiconductor substrates, protective coatings.

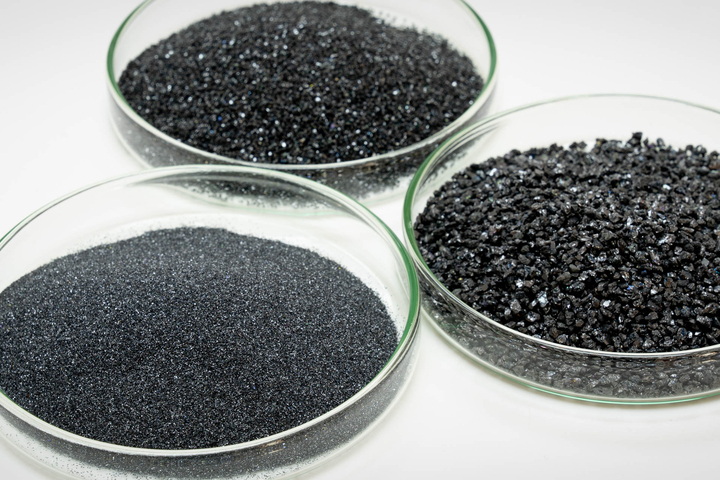

- Composition: Approximately 95% SiC with impurities.
- Properties: Tougher, used for grinding and abrasive applications.
- Applications: Processing low tensile strength materials like glass and cast iron.

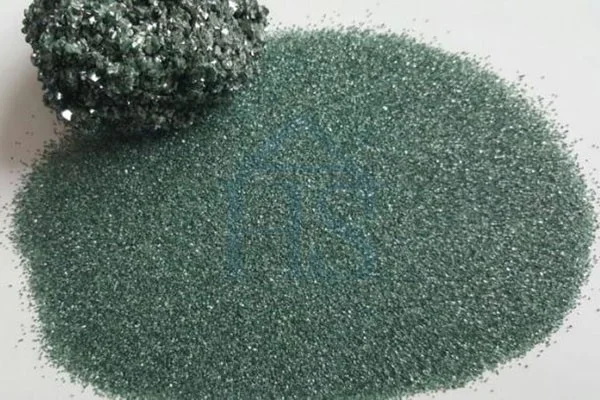

- Composition: Over 97% pure SiC.
- Properties: Self-sharpening, harder and more brittle.
- Applications: Precision grinding of hard materials like cemented carbide and titanium alloys.
- Hardness: SiC is extremely hard, with variations depending on polytype and purity.
- Thermal Conductivity: High, aiding in heat dissipation.
- Electrical Properties: Wide bandgap varies with polytype, affecting semiconductor performance.
- Chemical Stability: Resistant to oxidation and corrosion.
Black and green SiC are widely used in grinding wheels, sandpapers, and cutting tools due to their hardness and friability.
SiC's thermal stability makes it ideal for kiln furniture, crucibles, and furnace linings.
4H and 6H SiC polytypes dominate in power electronics, enabling efficient, high-temperature devices.
Lightweight, wear-resistant SiC composites and coatings improve performance and durability.
SiC membranes and catalysts aid in water treatment and pollution control.
- Polytype Control: Achieving single-phase polytypes is difficult but critical for device performance.
- Defect Management: Micropipes and dislocations affect mechanical and electronic properties.
- Cost: Complex manufacturing processes increase expenses.
- Machining: Hardness complicates shaping and finishing.
- Nanostructured SiC: Enhancing toughness and functional properties.
- Hybrid Materials: Combining SiC with other ceramics or metals.
- Additive Manufacturing: 3D printing of SiC components.
- Quantum Technologies: Exploiting SiC's spin properties.
Silicon carbide's classification encompasses its numerous polytypes, manufacturing methods, and purity levels, each influencing its properties and applications. Its complex atomic structure and versatile forms enable a broad spectrum of industrial and technological uses. Despite challenges, ongoing research and innovation continue to expand SiC's capabilities, cementing its role as a vital material in modern engineering.
The primary polytypes are 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal), differing in atomic layer stacking.
SiC is classified as sintered, reaction-bonded, recrystallized, or CVD based on production methods.

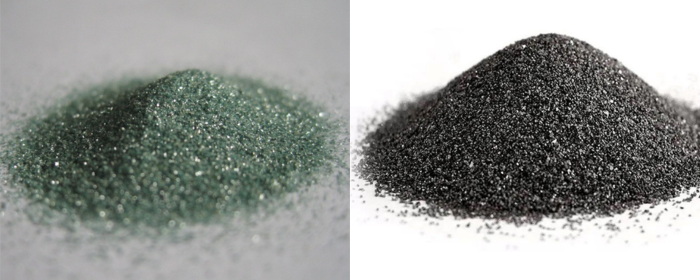

Black SiC is less pure and tougher; green SiC is purer, harder, and used for precision grinding.
Different polytypes have distinct electronic and mechanical properties critical for device performance.
Controlling defects, achieving single-phase polytypes, high costs, and machining difficulties.
