A silicon carbide grinding wheel is a specialized abrasive tool engineered for high-performance grinding, shaping, sharpening, and surface finishing of a wide range of materials. Renowned for its sharpness, hardness, and thermal stability, the silicon carbide grinding wheel is a staple in workshops, factories, and laboratories worldwide. This article explores what a silicon carbide grinding wheel is, how it works, its key properties, types, applications, and tips for optimal use.

What Is Silicon Carbide Grinding Wheel

Introduction to Silicon Carbide Grinding Wheels

Silicon carbide grinding wheels are abrasive wheels made by bonding sharp, hard silicon carbide grains together with a suitable binder. Silicon carbide (SiC) is a synthetic material known for its high hardness, thermal conductivity, and chemical stability. These wheels are designed to cut, grind, and shape a variety of hard and brittle materials, making them indispensable in metalworking, stone fabrication, glass processing, and advanced manufacturing.

Key Properties of Silicon Carbide Grinding Wheels

- Extreme Hardness: Silicon carbide is harder than most conventional abrasives, making it ideal for grinding hard and brittle materials.

- Sharp Cutting Action: The grains are very sharp and friable, which means they break down to expose new cutting edges, ensuring consistent performance.

- Thermal Conductivity: SiC wheels dissipate heat efficiently, reducing the risk of thermal damage to sensitive workpieces.

- Chemical Stability: Resistant to most acids, alkalis, and oxidation, allowing use on a variety of materials.

- Brittleness: While extremely hard, silicon carbide is more brittle than some other abrasives, which can affect edge retention.

How Silicon Carbide Grinding Wheels Are Made

The manufacturing process involves mixing silicon carbide grains with a bonding agent (such as vitrified, resin, or rubber bonds), shaping the mixture into a wheel, and firing or curing it to harden the structure. The choice of bond and grit size determines the wheel's hardness, porosity, and cutting characteristics.

- Green Silicon Carbide: Contains higher purity, is sharper and more brittle, and is used for grinding hard and brittle materials like carbide, glass, and ceramics.

- Black Silicon Carbide: Slightly less pure, tougher, and used for grinding softer metals and non-metallic materials.

Types and Shapes of Silicon Carbide Grinding Wheels

- Straight Wheels: Used for surface and cylindrical grinding.

- Cup Wheels: Ideal for grinding flat surfaces, stones, and concrete.

- Dish and Saucer Wheels: Used for grinding in tight spaces or on complex shapes.

- Bench and Pedestal Wheels: Mounted on bench grinders for sharpening and shaping tools.

- Flexible or Flap Wheels: For blending, deburring, and finishing.

Each shape and type is available in various grit sizes, from coarse for rapid material removal to fine for polishing and finishing.

Applications of Silicon Carbide Grinding Wheels

Metalworking

- Non-Ferrous Metals: Excellent for grinding aluminum, copper, brass, and magnesium without loading or clogging.

- Carbide Tool Sharpening: Green silicon carbide wheels are the industry standard for sharpening tungsten carbide-tipped tools.

- Cast Iron: Fast, clean grinding of cast iron components.

Stone and Concrete

- Stone Fabrication: Used for shaping, smoothing, and finishing granite, marble, and other natural stones.

- Concrete Surface Prep: Removes coatings, epoxies, and surface imperfections from concrete floors.

Glass and Ceramics

- Glass Grinding: Smooths edges and shapes glass pieces for art, construction, or industrial use.

- Ceramic Processing: Used for fine grinding and finishing of ceramic components.

Advanced Manufacturing

- Semiconductor Industry: Fine grinding and lapping of silicon wafers and other semiconductor materials.

- Composite Materials: Effective on hard, brittle composites used in aerospace and automotive industries.

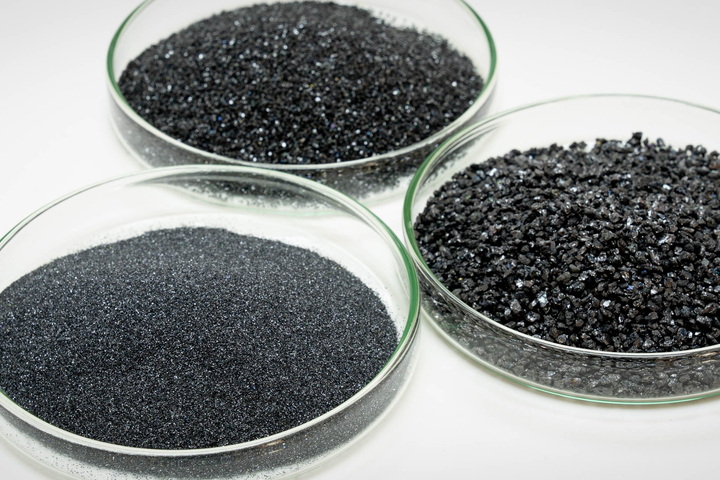

Silicon Carbide

Advantages of Silicon Carbide Grinding Wheels

- Fast Cutting: Sharp grains provide rapid material removal.

- Cool Grinding: Efficient heat dissipation minimizes thermal damage.

- Versatility: Suitable for a wide range of materials, especially hard, brittle, and non-ferrous materials.

- Affordable: Generally more cost-effective than diamond wheels for many applications.

Limitations and Considerations

- Not Ideal for Steel: Silicon carbide wheels are not recommended for grinding steel, as the carbon in SiC can react with iron at high temperatures, dulling the wheel and reducing effectiveness.

- Brittleness: The friable nature means they may wear faster or lose edge retention when used on tough, ductile materials.

- Bond Selection: The bond type and wheel hardness must match the material and grinding application for best results.

How to Choose the Right Silicon Carbide Grinding Wheel

- Material to Be Ground: Match the wheel type to the material—green SiC for carbide, black SiC for non-ferrous metals and stone.

- Grit Size: Coarse grits for rapid removal, fine grits for finishing.

- Bond Type: Vitrified bonds for rigidity and precision, resin bonds for flexibility and shock resistance.

- Wheel Shape: Select based on the geometry of the workpiece and grinding operation.

- Machine Compatibility: Ensure the wheel fits your grinder and is rated for the intended speed.

Maintenance and Dressing of Silicon Carbide Grinding Wheels

Regular dressing keeps the wheel sharp and true, removes glazing, and restores cutting performance. Use a dressing stick or diamond dresser with a lower grit than the wheel for best results.

Safety Tips for Using Silicon Carbide Grinding Wheels

- Wear PPE: Always use safety goggles, gloves, and a dust mask.

- Check Wheel Condition: Inspect for cracks or damage before use.

- Mount Properly: Ensure the wheel is securely mounted and balanced.

- Use Guards: Always operate with the grinder's safety guards in place.

- Follow Speed Ratings: Never exceed the maximum operating speed of the wheel.

Conclusion

A silicon carbide grinding wheel is a high-performance abrasive tool essential for grinding, sharpening, and finishing hard and brittle materials such as carbide, glass, ceramics, stone, and non-ferrous metals. Its unmatched hardness, sharpness, and thermal stability make it a preferred choice in metalworking, stone fabrication, and advanced manufacturing. By selecting the right wheel type, grit, and bond for your application, and following best practices for use and maintenance, you can achieve precise, efficient, and long-lasting grinding results.

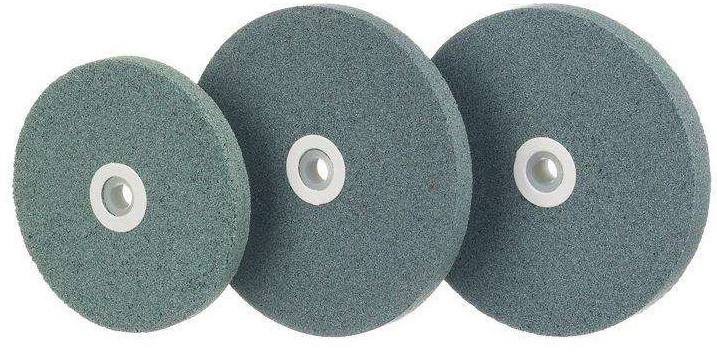

Silicon Carbide Abrasive Wheel

FAQ

1.What materials are best suited for silicon carbide grinding wheels?

Silicon carbide grinding wheels excel on non-ferrous metals, carbides, ceramics, glass, and stone, but are not ideal for steel.

2.How do I choose the right grit size for my grinding wheel?

Coarse grits are used for rapid material removal, while finer grits are chosen for polishing and finishing tasks.

3.Can silicon carbide grinding wheels be used for sharpening carbide tools?

Yes, green silicon carbide wheels are the industry standard for sharpening carbide-tipped tools and inserts.

4.How should I maintain and dress a silicon carbide grinding wheel?

Regular dressing with a dressing stick or diamond dresser keeps the wheel sharp, flat, and efficient.

5.Are silicon carbide grinding wheels safe to use on all grinders?

They are safe when properly mounted, matched to the grinder's speed rating, and used with appropriate safety equipment and guards.
