Silicon carbide (SiC) is a remarkable compound that has transformed numerous industries due to its outstanding physical properties. Known for its exceptional hardness, thermal conductivity, chemical inertness, and wide range of crystalline forms, silicon carbide is widely used in abrasives, high-performance ceramics, semiconductors, and advanced engineering applications. This comprehensive article delves deeply into the physical properties of silicon carbide, explaining how these properties arise from its unique crystal structures and bonding, and illustrating their implications for various industrial uses.
Silicon carbide is a compound of silicon and carbon with the chemical formula SiC. It exists in a variety of crystalline forms known as polytypes, which differ in the stacking sequence of silicon and carbon atoms. The most common polytypes are 3C (beta-SiC), 4H-SiC, and 6H-SiC, each exhibiting distinct physical and electronic properties.
Discovered in the late 19th century, silicon carbide has become a cornerstone material in industrial abrasives, ceramics, and semiconductor devices. Its unique combination of physical properties enables its use in harsh environments and advanced technological applications.
Silicon carbide exhibits over 200 polytypes, but the most commercially relevant are:
- 3C-SiC (β-SiC): Cubic zinc blende structure, stable below 1700 °C.
- 4H-SiC and 6H-SiC (α-SiC): Hexagonal structures, stable above 1700 °C.
These polytypes differ in their lattice parameters, bandgap energies, and physical properties, influencing their suitability for different applications.
SiC consists of strong covalent bonds between silicon and carbon atoms arranged tetrahedrally. This bonding imparts exceptional mechanical strength and thermal stability.

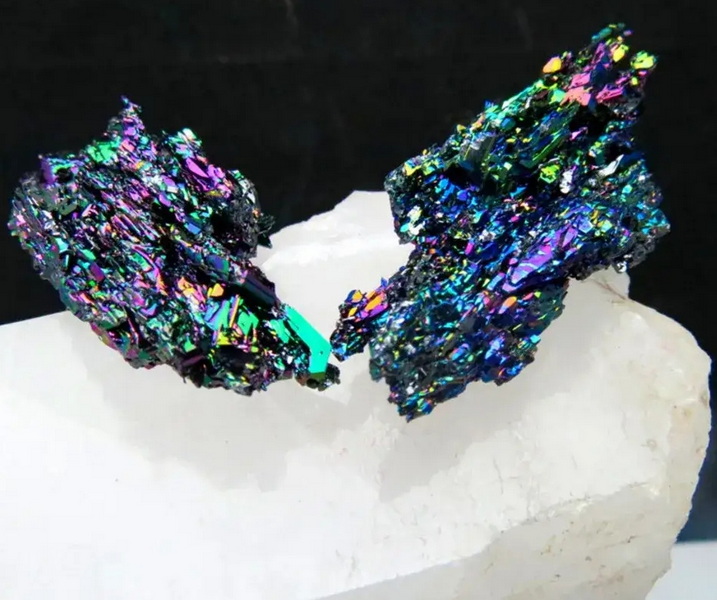

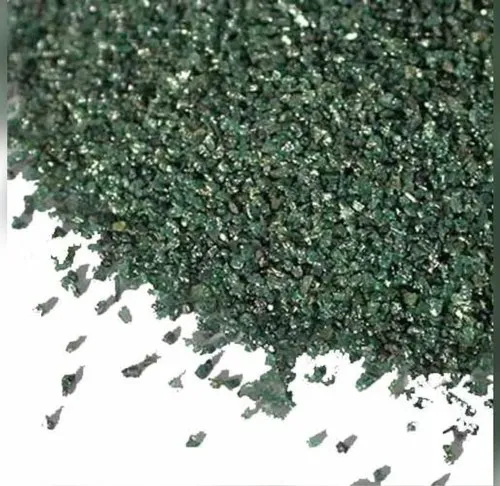

- Silicon carbide typically appears as black, green, or bluish-black crystals or powders.
- The iridescent luster is due to a thin passivated layer of silicon dioxide formed on the surface.
- Industrial SiC often contains iron impurities, influencing its coloration.
- The density of silicon carbide is approximately 3.21 g/cm3, making it denser than many ceramics but lighter than metals like steel.
- Density varies slightly among polytypes but remains close to this value.
- Silicon carbide ranks between 9 and 10 on the Mohs hardness scale, making it one of the hardest known materials.
- Its hardness is surpassed only by diamond and boron carbide.
- Vickers hardness values range from 25,000 to 30,000 N/mm2, indicating extreme resistance to scratching and abrasion.
- Melting Point: SiC does not melt but sublimates at approximately 2730 °C.
- Thermal Conductivity: Exceptionally high, around 120 to 170 W/m·K at room temperature, superior to most ceramics and metals.
- Thermal Expansion Coefficient: Low, about 2.3 × 10⁻⁶ K-1, which helps maintain dimensional stability under thermal cycling.
- Thermal Shock Resistance: Excellent, due to the combination of high thermal conductivity and low expansion.
- Young's Modulus: Approximately 440 GPa, indicating high stiffness.
- Flexural Strength: Around 490 MPa, showing good resistance to bending.
- Fracture Toughness: Moderate, about 6.8 MPa·m⁰·⁵, sufficient for many structural applications.
- Wear Resistance: Outstanding, due to hardness and chemical inertness.
- Silicon carbide is a wide bandgap semiconductor with bandgap energies depending on polytype:
- 3C-SiC: ~2.36 eV
- 4H-SiC: ~3.23 eV
- 6H-SiC: ~3.05 eV
- This allows operation at higher voltages, temperatures, and frequencies than silicon.
- Insoluble in water, alcohol, and most acids.
- Resistant to oxidation up to about 700 °C; forms a protective SiO₂ layer.
- Chemically inert under most conditions, except in molten alkalis or at very high temperatures.
- SiC crystals grow as tetrahedral units linked in three-dimensional networks.
- The surface often exhibits thin oxide films causing iridescence.
- Polytypes influence microstructural features such as grain size and stacking faults.
- Scanning electron microscopy (SEM) reveals sharp, angular grains.
- Transmission electron microscopy (TEM) shows atomic arrangements and defects.
- High hardness and wear resistance make SiC ideal for grinding wheels, sandpapers, and cutting tools.
- Thermal stability and shock resistance enable use in kiln furniture, furnace linings, and heat exchangers.
- Wide bandgap and thermal conductivity allow high-power, high-frequency devices such as MOSFETs and diodes.
- SiC composites are used for lightweight, heat-resistant components.
- Biocompatibility and chemical inertness support use in implants and prosthetics.
Silicon carbide's physical properties-extreme hardness, high thermal conductivity, low thermal expansion, chemical inertness, and wide bandgap semiconductor behavior-make it a uniquely versatile material. Its multiple crystalline polytypes offer tailored properties for diverse applications, from abrasives and ceramics to advanced electronics and aerospace components. The combination of mechanical strength and thermal stability underpins SiC's role in modern technology, and ongoing research continues to expand its industrial potential.
Silicon carbide has a Mohs hardness between 9 and 10, making it one of the hardest materials available.
SiC exhibits thermal conductivity ranging from 120 to 170 W/m·K, superior to most metals and ceramics.
SiC is highly chemically inert, insoluble in water and most acids, and resistant to oxidation up to about 700 °C.
The most common polytypes are 3C (cubic), 4H, and 6H (both hexagonal), differing in atomic stacking sequences.
Its wide bandgap and high thermal conductivity allow devices to operate at higher voltages and temperatures than silicon-based electronics.
