Sandblasting plays a crucial role across countless industries where thorough cleaning, shaping, or surface preparation is required. While the basic idea is simple—using a stream of abrasive particles propelled under high pressure—the success of any sandblasting project hinges on the abrasives themselves. These tiny grains might appear insignificant at a glance, but their composition, shape, and physical properties define how effectively surfaces can be cleaned, smoothed, roughened, or restored.
This article provides a detailed look into abrasive grains, exploring what they are, how they work in sandblasting, and why their characteristics are fundamental to achieving reliable results. As you read on, you will discover the scientific foundation of abrasives, the different types available for sandblasting, how to select the right abrasive for your needs, and practical advice on safe and eco-friendly usage.
Abrasive grains are hard, granular particles that act as the workhorses in the sandblasting process. Their task is to mechanically abrade, cut, or scour a target surface by striking it at high speed. The efficiency and safety of any sandblasting job almost always depend on choosing the right type and size of abrasive grain.
Most abrasive grains are derived from naturally occurring minerals or manufactured materials. Depending on their origin and composition, they can be harder or softer, sharper or rounder, more friable or more robust. Each of these qualities determines how much material the grain can remove per impact, whether it introduces surface damage, and how long the abrasive can be recycled.
Understanding abrasive grains begins with a few core scientific principles that govern their action and suitability for particular tasks.
Hardness reflects a grain's ability to resist being scratched or deformed. For sandblasting, the grains must be harder than the target material to cut or abrade it efficiently. Abrasives such as aluminum oxide and silicon carbide are chosen for their extreme hardness, which allows them to penetrate and shear away contaminants or coatings.
While hardness is needed for cutting, toughness ensures that an abrasive grain does not shatter immediately after impact. Tough grains endure the repeated collisions of blasting and retain much of their form, allowing them to be reused multiple times, which is both cost-effective and environmentally friendly.
The effectiveness of abrasive grains also depends on their shape. Sharp, angular grains cut more aggressively, leaving behind a rough surface suitable for coating adhesion. Rounded grains, like glass beads, are gentler, providing mild cleaning or peening without excessive surface erosion. The internal crystalline structure also matters: polycrystalline abrasives tend to break into fresh, sharp pieces, while monocrystalline grains retain their shape until fully worn.
Friability is a grain's tendency to break or fracture under pressure. An ideal abrasive grain will fracture just enough to expose new cutting edges as it wears. This “self-sharpening” quality allows the grain to maintain its cutting efficiency longer.
Denser grains carry more mass, allowing each particle to hit with more kinetic energy at the same speed. As a result, dense grains like steel shot are often used for peening or cleaning large, hard surfaces.
Selecting the right abrasive grain depends upon the project's requirements, the hardness of the substrate, the desired surface profile, safety regulations, and environmental considerations. Here are some of the most widely used abrasive materials:
Renowned for its durability and hardness, aluminum oxide is one of the most popular synthetic abrasives. Its sharp, angular grains give it a superior cutting ability, making it suitable for removing rust, mill scale, paint, and other tough contaminants from metals and hard surfaces.
Even harder and sharper than aluminum oxide, silicon carbide is used for the most demanding sandblasting tasks. Its friable nature means that with each impact, the grains renew their sharpness, making it perfect for aggressive cleaning or etching of stone and ceramics.
Garnet is a naturally occurring mineral with high durability and just the right level of friability. The angular profile of garnet grains makes it excellent for precision surface preparation and industrial cleaning. Additionally, it produces less dust and has a lower environmental impact compared to some alternatives.
Glass beads are spherical, soft abrasives used more for polishing, cleaning, and peening than for aggressive material removal. Because they do not cause significant surface damage, glass beads are often used to produce a smooth, satin finish on delicate parts or to improve metal fatigue life through shot peening.
Steel grit (angular) and shot (spherical) are made from hardened steel alloys. These abrasive grains are incredibly resilient and reusable, making them ideal for large-scale, heavy-duty operations like shipbuilding, automotive bodywork, and surface cleaning before painting or coating.
Plastic abrasives are softer options used when gentle cleaning or coating removal is necessary, often on substrates like aluminum or composite materials where minimal surface alteration is essential. They are common in industries such as aerospace and electronics.
Organic abrasives made from walnut shell or corncob provide an eco-friendly option for delicate cleaning tasks. These materials clean without damaging underlying surfaces, making them the media of choice for cleaning engine components, historic artifacts, and even artworks.
Baking soda is used where gentle, water-soluble abrasive action is desired, particularly for cleaning food processing equipment, restoring fire-damaged surfaces, or removing graffiti without harming the substrate.

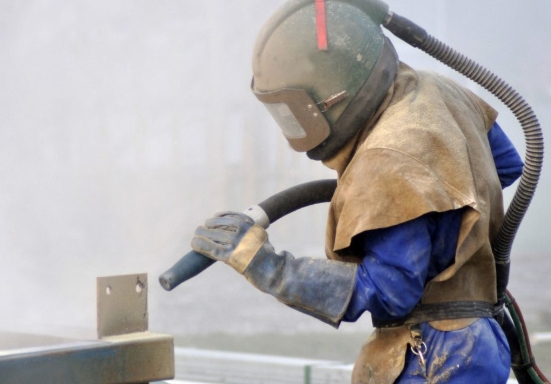

The logic of sandblasting lies in propelling abrasive grains toward a surface at high speed using compressed air or another powered system. Upon impact, each grain's kinetic energy delivers a punch strong enough to physically cut, chip, or abrade the target material, stripping away undesirable layers or modifying the underlying finish.
- Cutting: Hard, angular grains act like microscopic chisels, slicing into and dislodging stubborn coatings or corrosion.
- Plowing: Softer or rounder grains move material mainly by pushing and scraping, often used for finishing or light cleaning rather than removal.
- Fracturing and Self-Sharpening: Certain grains (like silicon carbide) fracture upon impact, constantly exposing new, sharp edges that persistently cut until the grain is spent.
- Peening: Spherical grains (such as steel shot or glass beads) impact the surface, inducing compressive stress and increasing fatigue resistance—a process vital for boosting the durability of metallic components.
Several working parameters influence the effectiveness of abrasive grains in sandblasting:
- Pressure: Increased air pressure accelerates grains, resulting in higher impact energy and faster material removal—but also more wear on both the substrate and equipment.
- Abrasive Flow Rate: The rate at which abrasive is fed impacts both productivity and cost.
- Nozzle Distance and Angle: The closer and more perpendicular the nozzle, the deeper the impact—and the rougher the finish.
- Substrate Material: Softer targets require less aggressive abrasives and gentler settings.
Larger grains provide aggressive removal and deeper surface profiling but may leave rougher finishes. Finer grains are better for smoothing or polishing, but are slower at removing tough coatings.
Sharp, angular abrasives cut more rapidly into hard surfaces and create better adhesion profiles for painting or coating. Rounded grains offer lighter cleaning and do not significantly change the surface roughness.
Optimal results occur when the abrasive is harder than the material being blasted, but not so much harder that it damages the substrate or increases wear on equipment.
Reusability is key for cost and sustainability. Hard, tough abrasives like steel grit and glass beads can be recycled multiple times, while softer or more friable media are typically used just once.
Impurities in abrasive media can embed in the substrate, introducing corrosion risks or affecting paint adhesion. Using clean, carefully graded abrasives is especially vital in critical industries such as aerospace or marine maintenance.
Moisture causes abrasives to cake or clump, resulting in inconsistent flows, blockages, and reduced efficiency. Dry storage and delivery systems preserve abrasive quality.
Choosing the best abrasive grain involves balancing both technical and practical requirements:
- Desired Surface Profile: Coarse abrasives create high anchors for paint or coatings, while fine media produce smooth finishes for delicate tasks.
- Base Material Sensitivity: Soft or sensitive materials require lower-hardness abrasives to prevent damage.
- Efficiency vs. Cost: Abrasives that can be recycled reduce long-term costs, even if their initial investment is higher.
- Health & Safety Concerns: Some media produce hazardous dust—such as silica, which can cause serious respiratory issues.
- Regulatory and Environmental Factors: Non-toxic, biodegradable, or recyclable abrasives are increasingly favored to minimize environmental impact and disposal costs.

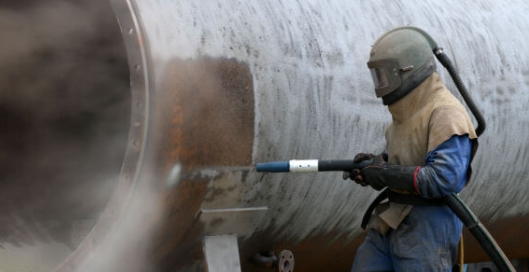

Abrasive grains are crucial in a wide variety of commercial, artistic, and maintenance operations:
- Surface Preparation: Essential in automotive repair, ship maintenance, and construction for preparing surfaces before painting, welding, or coating.
- Rust and Scale Removal: Effectively cleans metal surfaces of rust, mill scale, and oxide layers, enhancing component longevity.
- Restoration Work: Cleans and restores historical monuments, stonework, bricks, and public art without harm to original surfaces.
- Peening in Manufacturing: Boosts fatigue life and strength of metal parts, especially in aerospace, automotive, and heavy machinery.
- Graffiti Removal and Building Cleaning: Non-destructive for brick, masonry, and concrete surfaces.
- Creative and Artistic Applications: Allows controlled etching or texturing of glass, stone, and metals for artistic expression or custom signage.
Sandblasters are exposed to high-velocity particles, noise, and airborne dust. Operators must use appropriate personal protective equipment, including respiratory protection, gloves, eye protection, and durable clothing. Using containment systems and proper ventilation reduces exposure to harmful dust and debris.
Spent blasting media, especially when contaminated with lead paint or hazardous materials, must be properly collected and disposed of according to environmental regulations. Using recyclable or biodegradable abrasives can limit landfill waste and streamline cleanup.
The sandblasting industry faces growing demand for sustainability. This has fueled the development of safer media (like recycled glass, garnet, and agricultural products) that deliver effective results with minimal environmental impact.
Abrasive grains are indispensable to the modern practice of sandblasting, shaping everything from ship hulls and industrial machinery to delicate artworks and architectural treasures. Their effectiveness comes from a blend of hardness, toughness, shape, friability, and density—all factors that determine how they interact with surfaces.
Knowing how to select and use the right abrasive not only maximizes efficiency but also ensures safety and environmental stewardship. As technology and industry move forward, understanding the science behind abrasive grains will remain key to innovation in surface treatment and restoration.
Abrasive grains remove unwanted material from surfaces, such as rust, coatings, or contaminants, by impacting the substrate at high speed. Their chief function is creating a clean, profiled, or polished surface suitable for further treatment.
You should consider the substrate's hardness, the desired finish, reusability, safety requirements, and environmental impact. Coarse, hard abrasives suit heavy-duty cleaning, while softer or finer media are best for sensitive or precise work.
Certain grains, such as crystalline silica sand, produce dust that can cause serious respiratory hazards if inhaled. Always follow health and safety guidelines, use protective gear, and select safer alternatives where possible.
Many types, including steel shot, steel grit, and glass beads, can be collected and reused multiple times. The extent of reusability depends on the abrasive's toughness and the blasting application.
Choosing media that are recyclable or biodegradable reduces environmental impact, disposal costs, and regulatory burden. Environmentally responsible operations favor such abrasives for both legal compliance and corporate sustainability.
