Views: 222 Author: Lake Publish Time: 2025-05-05 Origin: Site
Content Menu
● Introduction to Tungsten Carbide and Silicon Carbide
● Hardness Comparison: Tungsten Carbide vs Silicon Carbide
>> Rockwell Hardness (HRA/HRC)
● Crystal Structure and Bonding
>> Tungsten Carbide Crystal Structure
>> Silicon Carbide Crystal Structure
● Mechanical Properties Comparison
● Thermal Properties and Stability
● Applications and Suitability
>> Tungsten Carbide Applications
>> Silicon Carbide Applications
● Summary of Hardness: Which Is Harder?
● FAQ
>> 1. Is tungsten carbide harder than silicon carbide?
>> 2. Which material is tougher, tungsten carbide or silicon carbide?
>> 3. What are the main applications of tungsten carbide?
>> 4. Where is silicon carbide commonly used?
>> 5. How do the thermal properties of tungsten carbide and silicon carbide compare?
Tungsten carbide and silicon carbide are two of the hardest materials widely used in industrial, manufacturing, and engineering applications. Both exhibit exceptional hardness, wear resistance, and thermal stability, yet they differ in composition, structure, and specific properties. A common question arises: Is tungsten carbide harder than silicon carbide? This article provides a comprehensive, detailed comparison of tungsten carbide and silicon carbide, focusing on hardness and other key material properties. It covers their crystal structures, mechanical characteristics, thermal behavior, applications, and cost considerations.
Tungsten carbide (WC) is a chemical compound consisting of equal parts tungsten and carbon atoms. It is a dense, extremely hard material with a hexagonal crystal structure. Tungsten carbide is often used in cutting tools, mining equipment, wear-resistant coatings, and industrial machinery due to its toughness and hardness.

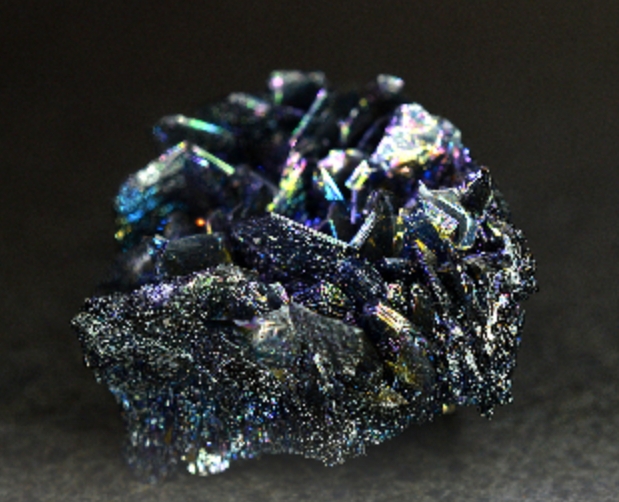

Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms arranged in a crystalline lattice. It is known for its high hardness, thermal conductivity, and chemical inertness. Silicon carbide finds applications in abrasives, semiconductors, high-temperature ceramics, and power electronics.
- Tungsten Carbide: Approximately 9 to 9.5 on the Mohs scale.
- Silicon Carbide: Approximately 9 to 9.5 on the Mohs scale.
Both materials rank very high on the Mohs scale, just below diamond (which is 10). This indicates both are extremely hard and suitable for abrasive and cutting applications.
- Tungsten Carbide: Typically ranges from 1500 to 2600 Hv, depending on grain size and cobalt binder content.
- Silicon Carbide: Typically ranges from 2400 to 2800 Hv.
Silicon carbide generally exhibits a higher Vickers hardness than tungsten carbide, indicating it is harder at the microscopic indentation scale.
- Tungsten Carbide: Approximately 89 to 95 HRA, corresponding roughly to 69 to 81 HRC.
- Silicon Carbide: Not commonly measured on Rockwell scales but known to be very hard.
- Tungsten carbide has a hexagonal close-packed (HCP) crystal structure.
- It features strong covalent bonds between tungsten and carbon atoms.
- The bonding also includes some metallic character, which contributes to its toughness and resistance to fracture.
- Silicon carbide exists in numerous polytypes, with the most common being 4H-SiC and 6H-SiC.
- It has a covalent crystal lattice with strong directional bonds between silicon and carbon atoms.
- The strong covalent bonding and rigid lattice contribute to its extreme hardness and thermal stability.
| Property | Tungsten Carbide (WC) | Silicon Carbide (SiC) |
|---|---|---|
| Density (g/cm3) | ~15.6 | ~3.1 |
| Young’s Modulus (GPa) | 530 – 700 | 370 – 490 |
| Fracture Toughness (MPa·m^0.5) | ~12 | 3.4 – 4.6 |
| Flexural Strength (MPa) | ~1830 | 410 – 600 |
| Compressive Strength (MPa) | ~4780 | 2780 – 3900 |
| Thermal Conductivity (W/m·K) | ~85 | 120 – 170 |
- Tungsten carbide is denser and tougher, with significantly higher fracture toughness.
- Silicon carbide is lighter, has higher thermal conductivity, and slightly lower fracture toughness.
- Melting point: ~2870 °C.
- Thermal conductivity: ~85 W/m·K.
- Thermal expansion coefficient: ~5.4 µm/m·K.
- Moderately resistant to oxidation but can degrade in harsh chemical environments.
- Melting point: ~2730 °C.
- Thermal conductivity: 120–170 W/m·K, superior to tungsten carbide.
- Thermal expansion coefficient: 4.0–4.5 µm/m·K.
- Excellent chemical corrosion resistance and thermal stability.
- Cutting tools (end mills, drill bits, inserts).
- Mining tools and wear-resistant parts.
- Industrial machinery components.
- Jewelry (scratch-resistant wedding bands).
- Armor-piercing ammunition.
- Abrasives and grinding wheels.
- High-temperature ceramics and kiln furniture.
- Semiconductor devices and power electronics.
- Automotive brake discs and diesel particulate filters.
- Nuclear fuel cladding materials.
- Tungsten carbide is generally more expensive due to tungsten's rarity and processing complexity.
- Silicon carbide is less costly, widely produced synthetically, and available in large quantities.
- Cost considerations often influence material choice depending on application requirements.
- Silicon carbide is generally considered harder than tungsten carbide based on Vickers hardness and Mohs scale.
- Tungsten carbide is tougher and more fracture-resistant, making it better for impact-heavy applications.
- Silicon carbide excels in thermal conductivity and chemical resistance.
- Both materials are extremely hard and used in demanding industrial environments.
Both tungsten carbide and silicon carbide are among the hardest materials available, but silicon carbide generally exhibits higher hardness values. Tungsten carbide offers superior toughness and impact resistance, making it ideal for cutting tools and wear parts subjected to mechanical stress. Silicon carbide's exceptional hardness, thermal conductivity, and chemical inertness make it suitable for abrasive applications and high-temperature environments. The choice between these materials depends on the specific requirements of hardness, toughness, thermal properties, and cost.
No, silicon carbide is generally harder than tungsten carbide based on hardness scales such as Vickers and Mohs.
Tungsten carbide is tougher and more resistant to fracture compared to silicon carbide.
Tungsten carbide is used in cutting tools, mining equipment, industrial machinery, and jewelry.
Silicon carbide is used in abrasives, semiconductors, high-temperature ceramics, and automotive components.
Silicon carbide has higher thermal conductivity and better chemical resistance, while tungsten carbide is moderately resistant to oxidation but has lower thermal conductivity.
