Silicon carbide (SiC) and graphite are two widely used materials in various industrial and technological applications. Both have unique properties that make them valuable in different contexts, but the question often arises: Is silicon carbide better than graphite? This comprehensive article explores the properties, advantages, disadvantages, and applications of both materials to provide a detailed comparison. We will also discuss emerging composite materials that combine the best of both worlds.
Silicon carbide is a compound of silicon and carbon with the chemical formula SiC. It is a hard, crystalline material known for its exceptional thermal conductivity, high melting point, and chemical stability. SiC is widely used in abrasives, cutting tools, high-temperature ceramics, and semiconductor devices.
Graphite is an allotrope of carbon characterized by its layered, planar structure. It is soft, slippery to the touch, and an excellent conductor of electricity and heat. Graphite is commonly used in lubricants, batteries, refractories, and as electrodes in high-temperature processes.
| Property | Silicon Carbide (SiC) | Graphite |
|---|---|---|
| Density (g/cm³) | 3.0 – 3.2 | 1.8 |
| Melting Point (°C) | ~2,700 (decomposes) | ~3,650 |
| Hardness (Mohs scale) | 9 – 9.5 | 1 – 2 |
| Compressive Strength (MPa) | 2,780 – 3,900 | ~90 |
| Flexural Strength (MPa) | 410 – 600 | ~80 |
| Thermal Conductivity (W/m·K) | 120 – 170 | ~6 |
| Thermal Expansion (µm/m·K) | 4.0 – 4.5 | 4.9 |
| Electrical Conductivity | Semiconductor (resistive) | Excellent conductor |
- Hardness and Strength: SiC is significantly harder and stronger than graphite, making it ideal for abrasive and structural applications.
- Thermal Conductivity: SiC has much higher thermal conductivity, beneficial for heat dissipation in electronics and high-temperature environments.
- Electrical Conductivity: Graphite is an excellent electrical conductor, whereas SiC behaves as a semiconductor with high resistivity.
- Density: Graphite is lighter, which can be advantageous in weight-sensitive applications.
SiC exhibits excellent thermal conductivity and can withstand rapid temperature changes due to its low thermal expansion and high melting point. It is stable up to about 1,600°C in oxidizing environments and up to 2,700°C in inert atmospheres.
Graphite has a higher melting point (~3,650°C) and excellent thermal shock resistance but oxidizes readily above 700°C in the presence of oxygen, requiring protective atmospheres or coatings for high-temperature use.
- Silicon Carbide: Highly resistant to chemical corrosion, including strong acids and molten salts. It oxidizes at temperatures above 1,000°C but maintains structural integrity better than graphite in oxygen-rich environments.
- Graphite: Chemically inert in many environments but oxidizes easily in air at elevated temperatures (~450°C), limiting its use in oxidizing atmospheres without protective measures.
- Graphite: Excellent electrical conductor due to delocalized electrons within its layered structure. Used extensively in electrodes, batteries, and electrical contacts.
- Silicon Carbide: Semiconductor with a wide bandgap (~3 times that of silicon), enabling high-voltage, high-frequency, and high-temperature electronic devices such as MOSFETs and diodes.

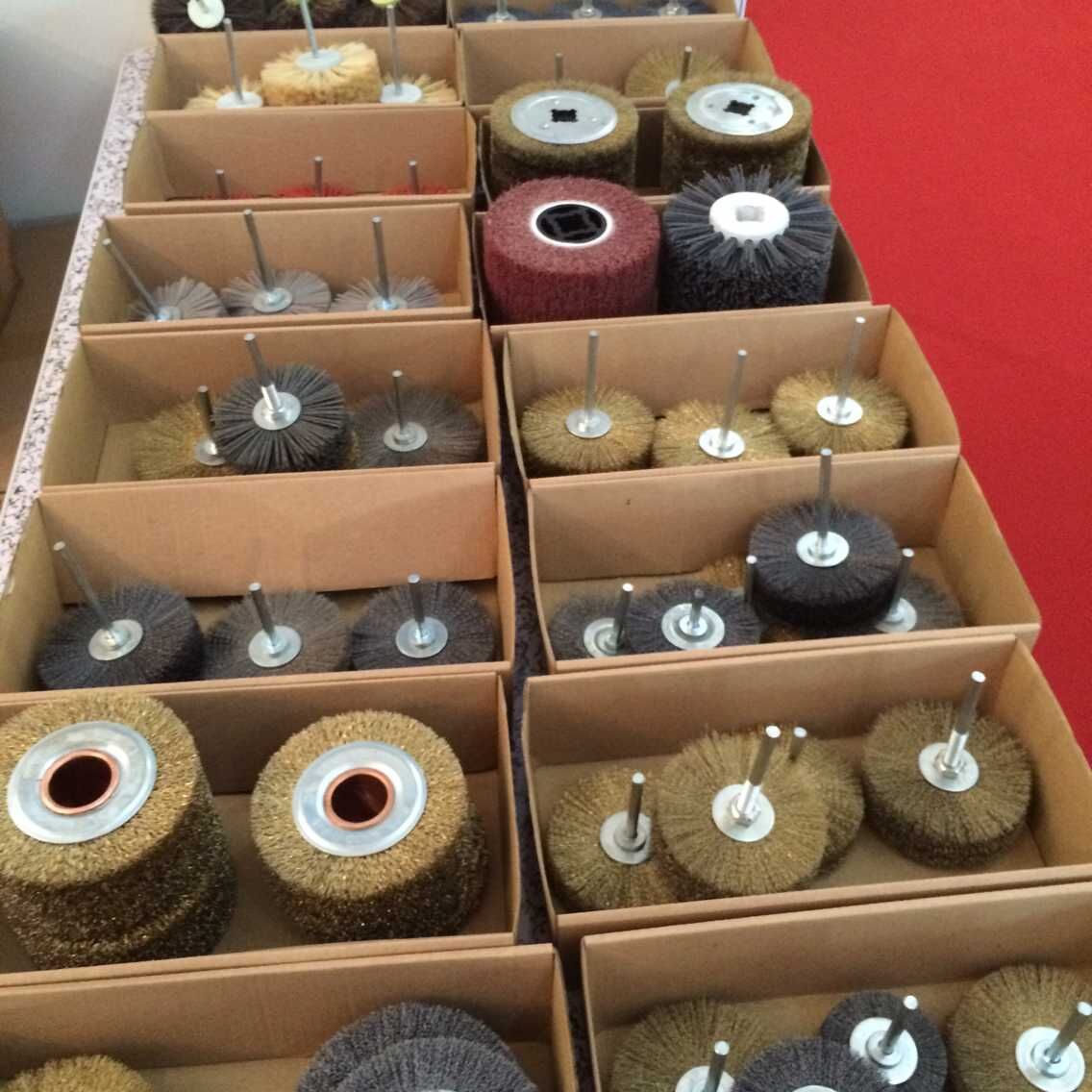

- Abrasives and Cutting Tools: Due to its hardness, SiC is used in grinding wheels, sandpapers, and cutting tools.
- Semiconductors: SiC devices operate efficiently at high voltages and temperatures, revolutionizing power electronics.
- High-Temperature Ceramics: Used in kiln furniture, furnace linings, and armor plating.
- Automotive: SiC composites are used in high-performance brake discs and diesel particulate filters.
- Foundry Crucibles: SiC crucibles offer superior wear resistance and chemical stability for melting metals.
- Lubricants: Graphite's layered structure provides excellent self-lubrication.
- Refractories: Graphite crucibles and furnace linings withstand extreme temperatures in steelmaking.
- Electrodes: Used in electric arc furnaces and batteries.
- Brake Linings and Batteries: Graphite is a key component in brake pads and lithium-ion battery anodes.
- Foundry Crucibles: Graphite crucibles are widely used for melting metals due to their high melting point and thermal conductivity.

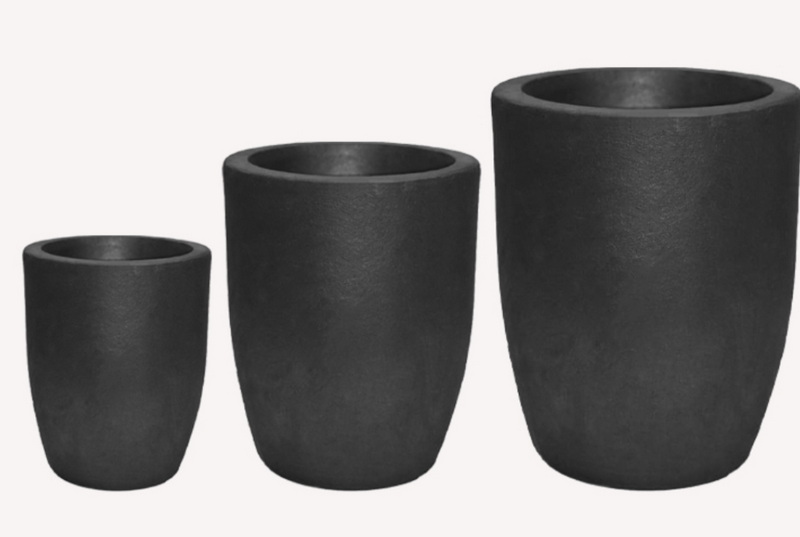

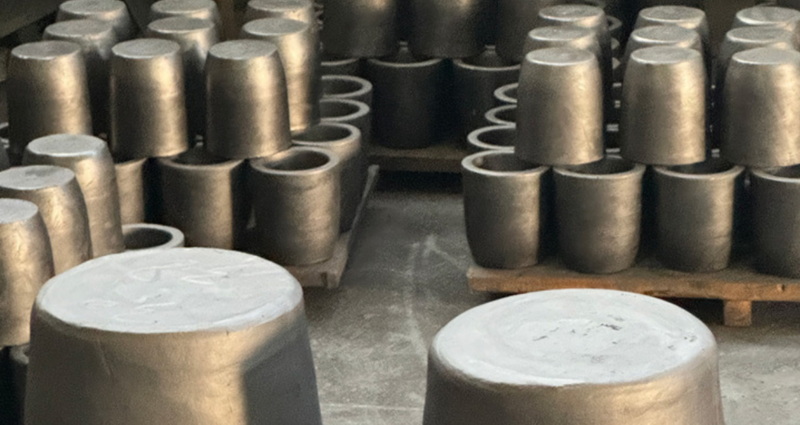

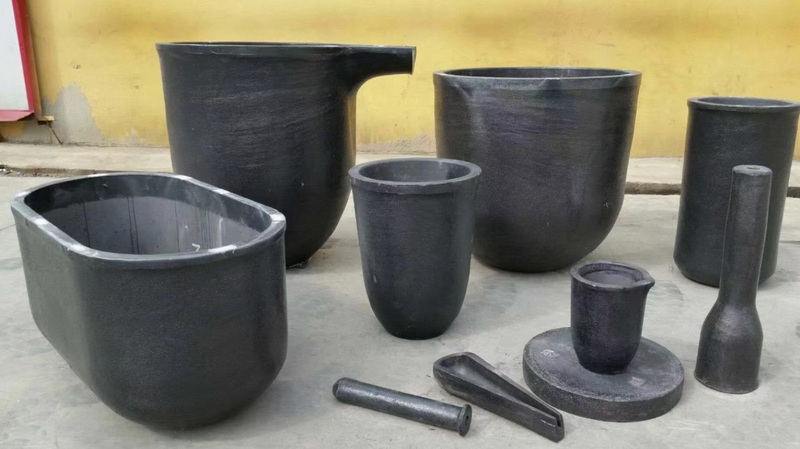

| Feature | Silicon Carbide Crucibles | Graphite Crucibles |
|---|---|---|
| Maximum Operating Temp | ~1,600°C | ~3,000°C |
| Thermal Conductivity | ~360 W/m·K | ~700 W/m·K |
| Oxidation Resistance | Up to 1,000°C | Oxidizes above 450°C |
| Chemical Resistance | Excellent | Good, but less than SiC |
| Porosity | Low | Higher |
| Wear Resistance | High | Moderate |
| Cost | Higher | Lower |
| Heat Retention | Lower (cools faster) | Higher (retains heat longer) |
| Impact Resistance | Higher | Lower |
- SiC crucibles are preferred for rapid heating, chemical resistance, and durability in corrosive environments.
- Graphite crucibles excel in very high-temperature applications and electrical conductivity but require protective atmospheres to prevent oxidation.
Recent advances have led to composite materials combining SiC and graphite, such as SiC30, which leverage the strength and wear resistance of SiC with the lubricating and electrical properties of graphite.
- Improved tolerance to edge running and lubrication failure.
- Enhanced thermal shock resistance.
- Excellent chemical resistance and mechanical strength.
- Used in pump bearings, mechanical seals, and high-precision components.
- Cost: Graphite is generally less expensive and easier to machine, making it suitable for cost-sensitive applications.
- Durability: SiC offers longer service life and better performance in harsh environments, justifying higher initial costs.
- Sustainability: SiC's energy efficiency in electronics contributes to environmental benefits.
Is silicon carbide better than graphite? The answer depends on the application:
- For high hardness, wear resistance, thermal conductivity, and chemical stability, silicon carbide outperforms graphite.
- For electrical conductivity, lubrication, and very high-temperature applications, graphite remains superior.
- In many cases, composite materials combining SiC and graphite offer the best of both worlds.
Choosing between silicon carbide and graphite requires careful consideration of the specific requirements, including temperature, mechanical stress, chemical exposure, and cost.
Yes, silicon carbide is significantly harder than graphite, making it ideal for abrasive and cutting applications.
No, graphite is a much better electrical conductor. Silicon carbide is a semiconductor and is used in different electronic components.
Graphite generally has higher thermal conductivity, but silicon carbide's thermal conductivity is still excellent and better suited for high-temperature stability.
SiC crucibles offer superior chemical resistance, wear resistance, and thermal shock resistance, but graphite crucibles can withstand higher temperatures and are more cost-effective.
They combine the strength and wear resistance of SiC with the lubricating and electrical properties of graphite, improving performance in demanding mechanical applications.
