Silicon carbide (SiC) is a compound of silicon and carbon that exhibits remarkable properties, making it a material of significant interest in various industrial applications. Understanding whether silicon carbide is amorphous or crystalline is crucial for its application in electronics, optics, and materials science. This article explores the structural characteristics of silicon carbide, detailing its crystalline forms and discussing the conditions under which it can exist in an amorphous state.
Silicon carbide exists primarily in crystalline forms known as polytypes. These polytypes arise from variations in the stacking sequence of silicon and carbon atoms. The two most common forms are:
- Cubic (β-SiC): This form has a zinc blende structure and is stable at lower temperatures.
- Hexagonal (α-SiC): This includes several polytypes such as 4H-SiC and 6H-SiC, which are stable at higher temperatures.

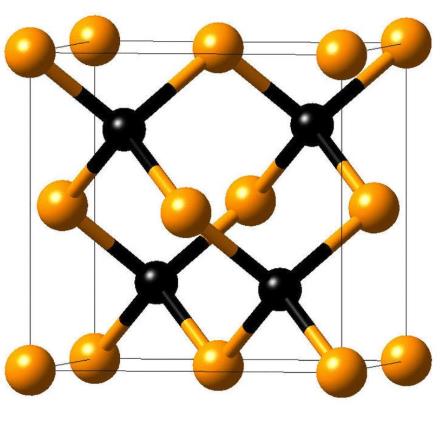

The crystalline structure of silicon carbide is characterized by a tetrahedral bonding configuration where each silicon atom forms four covalent bonds with carbon atoms, and vice versa. This arrangement leads to a variety of stacking sequences, each resulting in different polytypes.
| Polytype | Crystal Structure | Density (g/cm³) | Bandgap (eV) |
|---|---|---|---|
| 3C (β) | Zinc blende | 3.21 | 2.36 |
| 4H | Hexagonal | 3.21 | 3.23 |
| 6H (α) | Hexagonal | 3.21 | 3.05 |
The existence of over 250 crystalline forms indicates the polymorphic nature of silicon carbide, with variations in properties like thermal conductivity and electronic characteristics depending on the polytype.
In addition to its crystalline forms, silicon carbide can also exist in an amorphous state, particularly when produced through processes like pyrolysis of preceramic polymers. The amorphous phase lacks long-range order, which differentiates it from the well-defined structures of its crystalline counterparts.
Amorphous silicon carbide can be synthesized through various methods:
1. Chemical Vapor Deposition (CVD): This process allows for the deposition of thin films of SiC on substrates by chemically reacting gaseous precursors.
2. Sol-Gel Process: In this method, a solution containing silicon and carbon precursors undergoes hydrolysis and polymerization to form a gel that can be converted into amorphous SiC upon heating.
3. Pyrolysis: Heating organic precursors containing silicon and carbon at high temperatures can yield amorphous SiC.
Silicon carbide's unique properties stem from its crystal structure:
- High Thermal Conductivity: SiC exhibits excellent thermal conductivity, making it suitable for high-temperature applications.
- Wide Bandgap: The wide bandgap allows SiC to operate efficiently in high-voltage and high-frequency applications.
- Mechanical Strength: Its hardness and strength make it ideal for abrasive materials and cutting tools.
| Property | Crystalline SiC | Amorphous SiC |
|---|---|---|
| Structure | Ordered | Disordered |
| Thermal Conductivity | High | Moderate |
| Mechanical Strength | High | Lower than crystalline |
| Bandgap | Variable | Typically lower |
Due to its exceptional properties, silicon carbide is utilized in various fields:
SiC is widely used in semiconductor devices due to its high breakdown voltage and thermal stability. It enables the manufacture of power electronic devices such as MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) that are critical for efficient power conversion systems.
One of the most significant applications of SiC is in power electronics. Devices made from SiC can handle higher voltages and currents than those made from traditional silicon, leading to improved efficiency in power converters used in renewable energy systems like solar inverters and wind turbines.
The ability to withstand high temperatures makes SiC suitable for applications in harsh environments, such as aerospace and automotive industries. Components made from SiC can operate at elevated temperatures without degradation.
In electric vehicles (EVs), SiC is increasingly being used for onboard chargers and power management systems due to its efficiency at high temperatures and voltages. This leads to lighter components that improve overall vehicle performance.
SiC's hardness makes it suitable for grinding wheels and cutting tools. It is often used in applications requiring high wear resistance, such as ceramics processing and metalworking.
In industrial settings, SiC abrasives are used for surface finishing, polishing, and cutting hard materials like glass, ceramics, and metals due to their superior hardness compared to traditional abrasives.
SiC's optical properties are exploited in high-performance optical systems, including mirrors and lenses used in telescopes and other scientific instruments.
Silicon carbide coatings are applied to optical components to enhance their durability against environmental factors while maintaining transparency and optical clarity.
Recent advancements have seen silicon carbide being explored as a substrate material for solar cells due to its thermal stability and efficiency in energy conversion.
Research into integrating SiC with photovoltaic technologies aims to improve the efficiency of solar panels by utilizing its excellent thermal properties to manage heat dissipation effectively.
Silicon carbide offers several advantages over traditional semiconductor materials like silicon:
1. Higher Efficiency: Devices made with SiC can operate at higher voltages, frequencies, and temperatures than those made with silicon.
2. Reduced Size: The ability to handle higher power levels allows for smaller device sizes, contributing to more compact electronic systems.
3. Enhanced Reliability: SiC devices tend to have better reliability under extreme conditions compared to their silicon counterparts.
The following table summarizes key differences between silicon carbide and silicon:
| Property | Silicon | Silicon Carbide |
|---|---|---|
| Bandgap | ~1.1 eV | ~2.36 - 3.23 eV |
| Thermal Conductivity | Moderate (~150 W/m·K) | High (~120-200 W/m·K) |
| Breakdown Voltage | Lower | Higher |
| Temperature Stability | Limited (~150°C) | High (>600°C) |
Despite its advantages, working with silicon carbide presents challenges:
- Cost: The production of high-quality SiC substrates can be expensive compared to traditional materials.
- Doping Difficulties: Achieving effective doping levels for p-type conductivity is more challenging with SiC compared to silicon.
- Processing Techniques: The fabrication processes for SiC devices require specialized equipment due to the material's hardness and thermal properties.
The cost factor remains a significant barrier for widespread adoption of SiC technologies. As research progresses toward more efficient manufacturing processes that reduce costs, it is expected that SiC will become more accessible for various applications.
Ongoing research aims to address the challenges associated with silicon carbide while exploring new applications:
1. Advanced Doping Techniques: Researchers are investigating novel methods for achieving better p-type doping that could enhance the performance of SiC devices.
2. Integration with Other Materials: Combining SiC with other semiconductor materials could lead to hybrid devices that leverage the strengths of both.
3. Sustainable Manufacturing Processes: Developing greener methods for producing SiC could reduce costs and environmental impact.
Innovations such as additive manufacturing techniques are being explored for producing complex structures using silicon carbide, potentially opening new avenues for application across various industries.
In conclusion, silicon carbide is primarily crystalline but can exist in an amorphous state under certain conditions. Its diverse polytypes exhibit varying properties that make it suitable for numerous applications across different industries. Understanding the structural characteristics of silicon carbide is essential for optimizing its use in technology.
Silicon carbide mainly exists as cubic (β-SiC) and hexagonal (α-SiC) polytypes, with several variations within these categories.
The crystal structure influences properties such as thermal conductivity, mechanical strength, and electronic characteristics, with different polytypes exhibiting distinct behaviors.
Yes, due to its wide bandgap and high thermal stability, silicon carbide is widely used in semiconductor devices for high-voltage and high-frequency applications.
Amorphous silicon carbide lacks long-range order in its atomic structure and can be produced through processes like pyrolysis.
Silicon carbide's unique combination of hardness, thermal conductivity, and electronic properties makes it valuable in industries ranging from electronics to abrasives.
