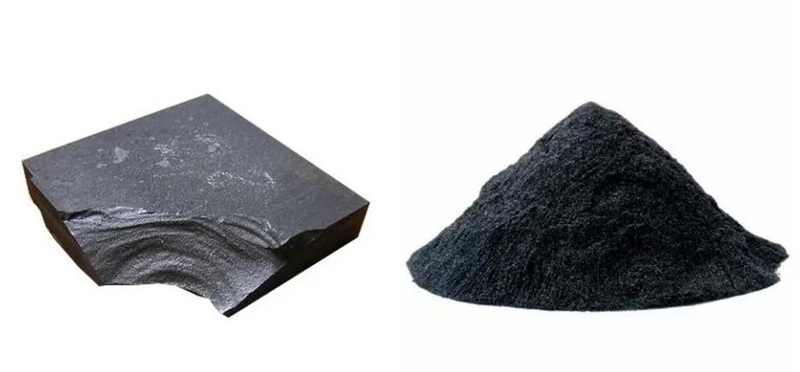

Boron carbide, with the chemical formula B4C, is a material renowned for its exceptional hardness, low density, and high thermal stability. It is often classified as a ceramic due to its composition and properties, which are typical of ceramic materials. In this article, we will delve into the characteristics of boron carbide, its applications, and explore why it is considered a ceramic.
Boron carbide is composed of boron and carbon atoms, forming a unique crystal structure that includes B12 icosahedrons and C-B-C chains. This structure contributes to its remarkable mechanical properties, such as high hardness and resistance to abrasion. Boron carbide is also known for its ability to absorb neutrons, making it useful in nuclear applications.
The chemical formula of boron carbide is B4C, but it can form non-stoichiometric compounds within a certain range, such as (B12+xC3-x, 0≤x≤0.1). This flexibility allows for the optimization of specific properties by adjusting the components. The B12 icosahedrons in its structure are linked by C-B-C chains, providing a framework that enhances its mechanical strength.
Boron carbide is extremely hard, with a Vickers hardness of 28-35 GPa and a Mohs hardness of 9.5-9.75, making it one of the hardest materials known, second only to diamond. Its low density of 2.52 g/cm³, combined with its high hardness, makes it an excellent lightweight protective material. However, like many ceramic materials, boron carbide is brittle and prone to cracking under impact.
Boron carbide has a high melting point of 2450°C and good thermal conductivity, ranging from 30-35 W/(m·K). It also exhibits a low coefficient of thermal expansion, which is beneficial in high-temperature applications where dimensional stability is crucial. This thermal stability makes it suitable for use in environments where other materials might degrade.
As a ceramic material, boron carbide exhibits semiconductor properties with a band gap of about 2.09 eV. Its resistivity ranges from 0.1-10 Ω·cm, making it suitable for certain electronic applications. The semiconductor properties can be tailored by introducing impurities or defects into the material.
Boron carbide is chemically stable, offering excellent resistance to oxidation below 1000°C and good resistance to acids and alkaline environments. However, it can oxidize at higher temperatures, forming B2O3. This oxidation can be mitigated by applying protective coatings or using it in inert atmospheres.
Due to its extreme hardness, boron carbide is widely used as an abrasive in grinding and cutting operations, particularly in the manufacture of precision components. It is often used in the form of powders or pastes for polishing and lapping.

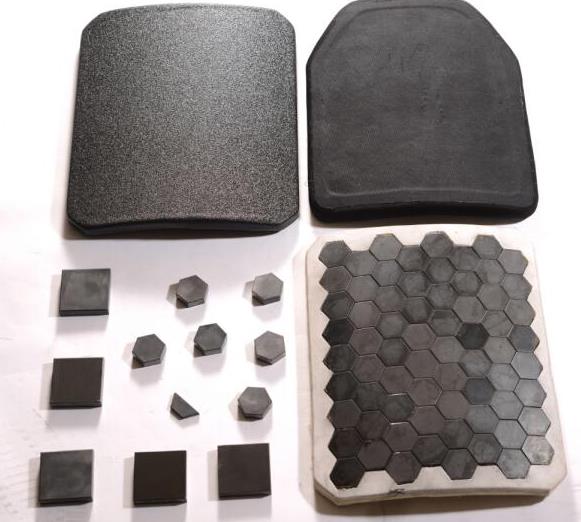

Boron carbide's high hardness and low density make it an ideal material for body armor and vehicle armor, providing effective protection against high-velocity projectiles. Its use in composite armor systems enhances the overall protective capability without adding excessive weight.
Its ability to absorb neutrons without generating long-lived radio-nuclides makes boron carbide useful in nuclear reactors as control rods and shutdown pellets. This property helps in controlling nuclear reactions and ensuring safety in reactors.
Boron carbide is used in high-temperature furnaces due to its thermal stability and resistance to high temperatures. It can withstand extreme conditions, making it suitable for applications where other materials would fail.
The semiconductor properties of boron carbide make it a candidate for electronic devices, particularly those requiring high thermal stability and resistance to harsh environments. However, its use in this field is still under development due to challenges in processing and doping.
Ceramics are typically defined by their rigid covalent or ionic bonds, which often result in high hardness but low toughness and plasticity. Boron carbide fits this definition due to its composition and properties:
- Composition: Boron carbide is a compound of boron and carbon, which are typical elements found in ceramic materials.
- Properties: It exhibits high hardness, thermal stability, and chemical resistance, all characteristic of ceramics.
- Applications: Its use in abrasive tools, armor, and high-temperature applications aligns with common ceramic applications.
Despite its excellent properties, boron carbide ceramics face challenges such as brittleness and difficulty in sintering to high densities without sintering aids. Recent research has focused on enhancing its mechanical properties through the introduction of nanoporosity and amorphous carbon at grain boundaries. Additionally, efforts are being made to improve its toughness by incorporating secondary phases or using advanced sintering techniques like spark plasma sintering (SPS).
The development of boron carbide composites with other materials is another area of interest. By combining boron carbide with polymers or metals, it is possible to create materials with improved toughness and ductility while retaining its hardness and thermal stability. These composites have potential applications in advanced armor systems and high-performance components.
Boron carbide is indeed a ceramic material due to its composition, properties, and applications. Its unique structure and exceptional hardness make it valuable in various industries, from abrasives and armor to nuclear applications. However, its brittleness and sintering difficulties pose challenges for further development.
Boron carbide has a chemical formula of B4C, with a structure composed of B12 icosahedrons and C-B-C chains. It can form non-stoichiometric compounds within a certain range.
Boron carbide is primarily used as an abrasive, in ballistic protection, nuclear applications, and as a refractory material due to its hardness and thermal stability.
Boron carbide is difficult to sinter to high relative densities without sintering aids due to its inherent properties, which require specific conditions to achieve full densification.
Boron carbide has a high melting point of 2450°C, thermal conductivity of 30-35 W/(m·K), and a low coefficient of thermal expansion, making it suitable for high-temperature applications.
Boron carbide's ability to absorb neutrons without generating long-lived radio-nuclides makes it crucial for controlling nuclear reactions and ensuring safety in reactors.
