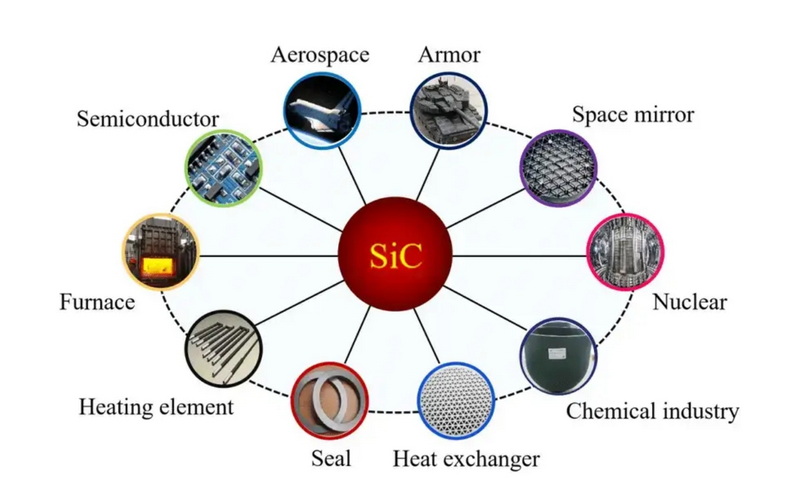

● Applications of Mixed Silicon Carbide Compound
>> 2. Semiconductor Manufacturing
>> 3. Aerospace
● FAQ
>> 1. What is the ideal grit-to-carrier ratio for general lapping?
>> 2. Can I mix different grit sizes in one compound?
>> 3. How do I clean residual compound from surfaces?
>> 4. What carrier is best for high-temperature applications?
>> 5. How long does mixed compound last?
Silicon carbide (SiC) lapping compound is a critical abrasive material used for precision surface finishing in industries ranging from automotive to aerospace. Properly mixing silicon carbide lapping compound ensures optimal performance, consistency, and longevity. This article provides a step-by-step guide to mixing silicon carbide lapping compound, including material selection, ratio calculations, and application techniques, supported by technical insights and visual aids.
Silicon carbide lapping compound consists of two primary components:
1. Abrasive Grit: Silicon carbide particles (grit sizes range from 80 to 3,000).
2. Carrier Medium: Grease (oil-based) or water-soluble gel for lubrication and adhesion.
- Grit Sizes:
- Coarse (80–220 grit): For heavy material removal (e.g., valve seats).
- Fine (400–3,000 grit): For polishing (e.g., optical lenses).
- Purity: ≥99% SiC for consistent performance.
- Grease-Based: Petroleum or synthetic grease (ideal for high-temperature applications).
- Water-Based: Environmentally friendly and easy to clean (e.g., Kemet's water-soluble pastes).
- Glass or ceramic mixing bowl.
- Spatula or industrial mixer.
- Precision scale (for measuring ratios).
- Antistatic Agents: Reduce dust buildup.
- Corrosion Inhibitors: Protect metal surfaces (e.g., Clover Lapping Compound).
Match the grit size to your application:
- Coarse Grits (80–220): Valve grinding, gear teeth finishing.
- Fine Grits (400–3,000): Polishing semiconductors or optical components.
Choose a carrier based on operational needs:
- Grease-Based: For durability in high-heat environments (e.g., automotive engines).
- Water-Based: For eco-friendly, easy-clean applications (e.g., Kemet's ISO 9001-certified pastes).
Table: Grit Size vs. Applications
| Grit Range | Application | Carrier Type |
|---|---|---|
| 80–220 | Valve seats, gears | Grease-based |
| 400–800 | Mechanical seals, bearings | Water-based |
| 1,000–3,000 | Optical lenses, semiconductors | Water/grease hybrid |
- Standard Ratio: 1 part SiC grit to 2 parts carrier (by weight).
- High-Performance Ratio: 1:1.5 for aggressive cutting (e.g., Falcon Tool's Clover Compound).
- Manual Mixing: Use a spatula to blend grit and carrier in a circular motion for 5–10 minutes.
- Mechanical Mixing: Industrial mixers ensure homogeneity for large batches (e.g., Lapmaster's automated systems).
- Spread Test: Apply a thin layer on glass. Grit should distribute evenly without clumping.
- Performance Test: Lap a test metal piece (e.g., stainless steel) and check surface finish under a microscope.
- Too Thick: Add carrier in 10% increments.
- Too Thin: Add grit gradually.
- Storage: Keep in airtight containers at 15–25°C (e.g., Kemet's 1kg sealed jars).
- Valve Lapping: Restore engine efficiency by mating valve seats (e.g., Beaver Economy Compound).
- Gear Polishing: Smooth gear teeth for reduced friction.
- Wafer Finishing: Achieve sub-micron flatness for silicon wafers.
- Optics: Polish lenses and mirrors for laser systems.
- Turbine Blade Lapping: Ensure precision in jet engine components.
1. Wear PPE: Gloves, goggles, and masks to avoid inhalation.
2. Avoid Contamination: Use clean tools and containers.
3. Environmental Compliance: Dispose of grease-based compounds per local regulations.
1. Nanoparticle Additives: Ultra-fine SiC grit (≤1µm) for mirror finishes.
2. Biodegradable Carriers: Eco-friendly gels derived from plant oils.
3. Smart Compounds: Embedded sensors to monitor wear in real time.
Mixing silicon carbide lapping compound requires precision in grit selection, carrier ratio, and blending techniques. Whether for automotive valves or semiconductor wafers, a well-mixed compound ensures efficient material removal and superior surface finishes. Innovations in nanoparticle technology and sustainable carriers will further enhance the versatility of SiC lapping compounds.
A 1:2 ratio (grit:carrier) is standard. Adjust based on material hardness and desired finish.
No—mixed grits create uneven surfaces. Use a single grit size per batch.
For grease-based: Use mineral spirits. For water-based: Rinse with warm water.
Synthetic grease (e.g., Clover Compound) withstands temperatures up to 200°C.
1–2 years if stored in sealed containers away from moisture and heat.
