Boron carbide control rods are a crucial component in nuclear reactors, playing a key role in controlling the rate of nuclear fission. These rods are made from boron carbide (B4C), a material renowned for its high neutron absorption capabilities. In this article, we will delve into the mechanics of boron carbide control rods, their applications, and the challenges associated with their use.
Boron carbide is a compound composed of boron and carbon, with a chemical formula of B4C. It is widely used in nuclear reactors due to its high neutron capture cross-section, particularly for the isotope 10B. When neutrons collide with 10B, they induce a nuclear reaction that absorbs the neutron and releases alpha particles and lithium, effectively reducing the number of neutrons available for fission.
The neutron absorption process in boron carbide can be described by the following nuclear reaction:
10B+n→7Li+4He
This reaction not only absorbs neutrons but also produces helium gas, which can lead to swelling in the control rod material over time.

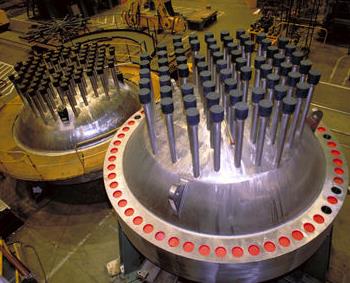

Control rods are designed to be inserted into or withdrawn from the reactor core to adjust the rate of fission. The rods are typically made by filling tubes with boron carbide powder or pellets. These tubes are often made from materials like stainless steel to provide structural integrity and prevent corrosion.
In BWRs, control rods are often cruciform in shape, allowing more boron carbide to be packed into each rod. This design enhances the neutron absorption capability and extends the service life of the rods.
PWRs may use different materials like silver-indium-cadmium alloys, but boron carbide is also common due to its high neutron absorption efficiency.

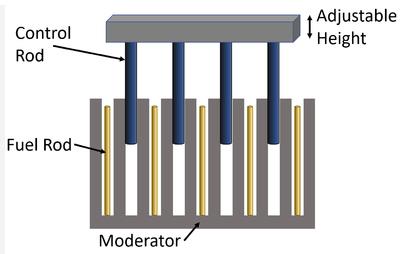

Control rods operate by adjusting their position within the reactor core:
- Insertion: When control rods are inserted into the core, they absorb more neutrons, reducing the rate of fission and thus decreasing the reactor's power output.
- Withdrawal: Conversely, withdrawing the control rods reduces neutron absorption, allowing more neutrons to induce fission and increasing the reactor's power output.
The helium produced during neutron absorption can cause the boron carbide to swell, leading to mechanical stress and potential damage to the rod's cladding. Advanced designs, such as the Westinghouse CR 99, use high-density boron carbide pins to mitigate these issues by allowing for free expansion gaps and minimizing mechanical strain.
High-temperature conditions can degrade the boron carbide, affecting its neutron absorption efficiency. Research into the chemical state mapping of degraded B4C has provided insights into how boron compounds change under severe conditions, aiding in the development of more resilient materials.
In the event of an uncontrolled chain reaction, boron carbide control rods can be rapidly inserted to absorb excess neutrons. Additionally, liquid boron compounds like boric acid can be used as a neutron poison to quickly stop the reaction.
Control rod drop time is critical in emergency shutdowns. Modern reactors aim for a shutdown time of less than 3 seconds to ensure safety. The control rod guide tube is designed with fast insertion and buffer sections to prevent damage during rapid insertion.
| Reactor Type | B44C Usage | Average Rods per Reactor | Replacement Cycle |
|---|---|---|---|
| PWR | 68% | 53 | 18 years |
| BWR | 92% | 177 | 15 years |
| PHWR | 41% | 28 | 12 years |
| SMR | 100% | 12 | 25 years |
Data: IAEA 2024 Nuclear Technology Review
Laser powder bed fusion now produces control rods with:
- Functionally Graded Structures: 100% dense outer layer, 85% dense core
- Internal Cooling Channels: Reduce peak temperatures by 150°C
- Embedded Sensors: Real-time burnup measurement
Next-gen control rods integrate with:
- Chromium-coated zirconium cladding
- Uranium silicide fuel pellets
- Silicon carbide matrix composites
From their atomic-scale neutron interactions to megawatt-scale energy regulation, boron carbide control rods exemplify materials engineering mastery. As nuclear technology advances toward Gen-IV reactors and fusion hybrids, these components will continue evolving through nanotechnology integration and AI-optimized designs. Their 80-year service history proves that sometimes, the most crucial technologies are those working silently in the background.
Boron carbide control rods primarily function to absorb neutrons, thereby controlling the rate of nuclear fission in reactors.
The neutron absorption process involves the reaction of $${}^{10}$$B with neutrons to produce $${}^{7}$$Li and $${}^{4}$$He, effectively reducing the number of neutrons available for fission.
Besides boron carbide, other materials used in control rods include silver-indium-cadmium alloys, cadmium, and hafnium, depending on the reactor type.
Boron carbide control rods face challenges such as swelling due to helium production and mechanical stress, which can lead to material degradation over time.
Advanced designs, such as the Westinghouse CR 99, use high-density boron carbide pins with free expansion gaps to minimize mechanical strain caused by swelling.
