Sandblasting is a versatile technique for decorating ceramic mugs, offering a unique three-dimensional effect by mechanically removing the glaze layer. This process allows for intricate designs and personalized creations, making it a popular choice for both hobbyists and professionals. However, the success of sandblasting on ceramic mugs, especially those with fine details, heavily relies on selecting the appropriate sandblasting media. This article explores the various media options available, their characteristics, and which ones are best suited for achieving detailed designs on ceramic mugs.
Sandblasting media, also known as abrasive blasting media, are materials used to remove surface layers through impact. The choice of media significantly impacts the final result, affecting the texture, depth, and overall quality of the engraving. Different media vary in hardness, shape, and material composition, each offering unique advantages and disadvantages for specific applications.
- Aluminum Oxide Grit: Known for its sharpness and durability, aluminum oxide is a popular choice for surface treatments and preparations. It is available in various grades, with a 99.5% pure white grade and a standard brown grade. White aluminum oxide is preferred when contamination from the blasting media is a concern, as it's less likely to leave residue or discoloration on the ceramic surface. Brown aluminum oxide, while more cost-effective, may leave a slight residue and is better suited for less delicate applications.
- Ceramic Sandblasting Media: An economical alternative to white aluminum oxide, ceramic media is designed to improve grain toughness. It offers similar performance at a lower cost and is suitable for various surfaces, including metal, glass, plastic, and wood. Ceramic media often has a spherical shape, which provides a more uniform and less aggressive blasting action compared to the angular shape of aluminum oxide. This makes it a good option for achieving a smooth, consistent finish on ceramic mugs.
- Crushed Glass Grit: Made from 100% recycled glass beads, crushed glass grit is an eco-friendly and health-friendly option. It is non-toxic and non-hazardous, making it suitable for applications around water and for removing coatings and surface contamination. Crushed glass is less aggressive than aluminum oxide, which can be beneficial for detailed work on delicate ceramic mugs. It also produces a brighter, cleaner finish, which can enhance the visibility of intricate designs.
- Soda: Made from baking soda, soda is a non-destructive cleaning agent. It effectively removes rust from metals without causing depression or damage to the underlying material. While soda blasting is typically used for cleaning and restoration, it can also be used on ceramic mugs to create a subtle, etched effect. However, it's not ideal for deep engraving or intricate designs.
- Steel Grit: With high hardness, steel grit provides fast stripping action and is commonly used for cleaning, etching, and surface preparations. Due to its aggressive nature, steel grit is generally not recommended for sandblasting ceramic mugs, especially those with fine details, as it can easily damage the surface and obliterate intricate designs.
- Material of the Mug: Different ceramic materials react differently to various media. For example, porcelain is harder and more resistant to abrasion than earthenware, so it can withstand more aggressive media. Consider the hardness and fragility of the ceramic mug when selecting your media.
- Desired Effect: The desired level of detail and texture will influence the choice of media. For intricate designs, finer media are generally preferred. If you want a deep, heavily textured design, a coarser media may be appropriate. For a subtle, frosted effect, a very fine media like plastic media or soda can be used.
- Equipment Compatibility: Ensure the chosen media is compatible with your sandblasting equipment. Some media, like steel grit, require specialized equipment due to their density and abrasive nature. Using the wrong media in your sandblaster can damage the equipment or lead to inconsistent results.
- Safety: Always prioritize safety by using appropriate personal protective equipment (PPE) and selecting media that minimize health risks. Some media, like silica sand, can cause serious respiratory problems if inhaled. Always use a respirator and work in a well-ventilated area when sandblasting.
Achieving detailed designs on ceramic mugs requires a balance between effective material removal and precision. Here are some of the best media options for this purpose:
1. Fine Aluminum Oxide: Fine-grade aluminum oxide is an excellent choice for detailed work due to its sharp edges and ability to create clean, precise lines. Its durability allows for multiple uses, making it a cost-effective option. The sharp edges of the aluminum oxide grit effectively cut through the glaze, creating crisp, well-defined lines. Be sure to use a fine grit to avoid over-blasting and damaging the ceramic.
2. Ceramic Sandblasting Media: Ceramic media offers a good balance of performance and cost. Its engineered composition ensures consistent results, making it suitable for intricate designs on ceramic mugs. The spherical shape of ceramic media provides a more uniform blasting action, reducing the risk of uneven etching. It's also less likely to leave a residue on the ceramic surface compared to some other media.
3. Crushed Glass Grit: For those seeking an environmentally friendly option, crushed glass grit provides a good level of precision while being non-toxic and safe to use. It may require slightly more pressure to achieve the desired effect compared to aluminum oxide. Crushed glass grit is a good option for creating a softer, more diffused look. It's also less likely to cause damage to delicate ceramic mugs.
4. Plastic Media: Plastic media is softer than other options, making it ideal for delicate ceramic mugs where minimal material removal is desired. It is particularly useful for creating a subtle, frosted effect on the surface. Plastic media is available in various grades, with finer grades being suitable for detailed work. It's also a good option for removing paint or coatings from ceramic mugs without damaging the underlying surface.
1. Preparation: Begin by cleaning the ceramic mug to remove any dirt, grease, or contaminants. Use a degreasing cleaner to ensure the surface is free of oils, which can interfere with the blasting process. Apply a masking film with the desired design cut out to protect the areas that should not be sandblasted. Ensure the masking film is securely adhered to the mug to prevent media from seeping underneath.

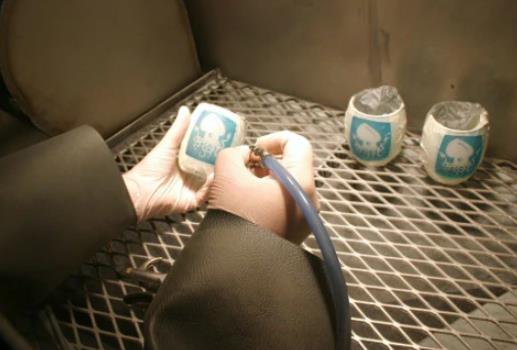

2. Sandblasting: Load the chosen media into the sandblasting equipment and adjust the pressure according to the media type and desired effect. Start with a lower pressure setting and gradually increase it until you achieve the desired etching depth. Carefully blast the exposed areas of the mug, holding the nozzle at a consistent distance and angle. Maintain a steady hand and avoid dwelling in one spot for too long, as this can lead to over-blasting.
3. Finishing: Once the sandblasting is complete, remove the masking film to reveal the design. Clean the mug to remove any residual media. Use a soft brush or cloth to remove any loose particles. You can also rinse the mug with water and dry it thoroughly. If desired, you can apply a sealant to protect the etched design and prevent staining.
- Multi-Layer Sandblasting: For more complex designs with varying depths, consider using a multi-layer sandblasting technique. This involves applying multiple layers of masking film, each with a different section of the design cut out. By sandblasting each layer separately, you can create a design with different levels of etching, adding depth and dimension.
- Using Stencils: Instead of cutting out a design from masking film, you can use pre-made stencils. Stencils are available in a variety of materials, including vinyl and metal. Vinyl stencils are easy to use and are suitable for simple designs. Metal stencils are more durable and can be used for more intricate designs.
- Controlling the Angle of Attack: The angle at which you hold the sandblasting nozzle can affect the shape and depth of the etching. Holding the nozzle at a shallow angle will create a wider, shallower etch, while holding it at a steeper angle will create a narrower, deeper etch. Experiment with different angles to achieve the desired effect.
- Post-Processing: After sandblasting, you can enhance the design by adding color or texture. For example, you can use paint markers to fill in the etched areas with color. You can also use a textured coating to create a more tactile surface.
- Wear Appropriate PPE: Always wear a respirator, eye protection, and gloves when sandblasting. The respirator will protect you from inhaling harmful dust particles, the eye protection will protect your eyes from flying debris, and the gloves will protect your hands from abrasion.
- Work in a Well-Ventilated Area: Sandblasting can generate a lot of dust, so it's important to work in a well-ventilated area. If possible, use a sandblasting cabinet with a dust collection system.
- Dispose of Media Properly: Dispose of used sandblasting media properly. Some media may be hazardous and require special disposal procedures.
Choosing the right sandblasting media is crucial for achieving detailed and high-quality designs on ceramic mugs. Fine aluminum oxide, ceramic media, crushed glass grit, and plastic media are all excellent options, each offering unique advantages for different applications. By considering the material of the mug, desired effect, equipment compatibility, and safety precautions, you can select the best media for your specific needs. Experiment with different techniques and settings to master the art of sandblasting and create personalized ceramic mugs that are both beautiful and functional.
The best grit size for sandblasting ceramic mugs with detail depends on the media type and the desired effect. For aluminum oxide, a grit size between 180 and 220 is generally recommended for fine detail work. For ceramic media, a grit size between 100 and 180 may be suitable. For crushed glass grit, a grit size between 80 and 120 may be appropriate. Always start with a finer grit and increase it if necessary.
No, you should not use regular play sand for sandblasting ceramic mugs. Play sand typically contains silica, which can cause serious respiratory problems if inhaled. It's also too coarse and inconsistent for achieving detailed designs. Always use a designated sandblasting media that is specifically designed for abrasive blasting.
To prevent chipping when sandblasting ceramic mugs, use a lower air pressure, a finer grit media, and a consistent nozzle distance. Avoid dwelling in one spot for too long, as this can lead to over-blasting and chipping. You can also use a softer media, like plastic media, to minimize the risk of damage.
For sandblasting ceramic mugs, you should use a high-quality masking film that is specifically designed for abrasive blasting. These films are typically made of vinyl or rubber and have a strong adhesive that will prevent media from seeping underneath. Ensure the masking film is securely adhered to the mug before sandblasting.
To clean a sandblasted ceramic mug, use a soft brush or cloth to remove any loose particles of media. You can also rinse the mug with water and dry it thoroughly. If desired, you can apply a sealant to protect the etched design and prevent staining. Avoid using abrasive cleaners or scrub brushes, as these can damage the etched surface.
