Boron carbide is one of the most remarkable and advanced ceramic materials known today. Renowned for its extreme hardness, low density, and exceptional mechanical and chemical properties, boron carbide occupies a unique position in the family of ceramics. It is widely used in applications ranging from ballistic armor and abrasives to nuclear reactors and cutting tools.This article provides a comprehensive and detailed exploration of what makes boron carbide a special type of ceramic. We will discuss its chemical composition, crystal structure, physical and mechanical properties, manufacturing processes, and diverse applications.
Yes, boron carbide is a ceramic material. More specifically, it is classified as an advanced, non-oxide ceramic composed of boron and carbon atoms. Unlike traditional ceramics such as clay or alumina, boron carbide is a covalently bonded ceramic with a complex crystal structure that imparts extraordinary hardness and wear resistance.
Ceramics are generally defined as inorganic, non-metallic solids with high melting points, hardness, and chemical stability. Boron carbide fits this definition perfectly and is often referred to as a "black diamond" due to its exceptional hardness, second only to diamond and cubic boron nitride in the hardness scale.
Boron carbide's chemical formula is approximately B₄C, but in reality, it exists as a family of compounds with varying boron-to-carbon ratios. The idealized formula is often represented as B₁₂C₃, reflecting its complex crystal structure.
- Boron carbide has a rhombohedral crystal structure composed of B₁₂ icosahedra and C-B-C linear chains.
- The B₁₂ icosahedra are clusters of twelve boron atoms arranged in a cage-like geometry, which are linked by carbon-boron-carbon chains.
- This unique arrangement provides high structural stability and contributes to the material's extreme hardness and low density.
- The structure exhibits some degree of disorder and carbon deficiency, leading to variations in physical properties.
- The crystal contains two primary units: the B₁₂ icosahedron and the B₆ octahedron.
- The bonding between these units is strong and covalent, contributing to the ceramic's mechanical strength.
- Variations in atomic arrangements and bonding affect electrical conductivity and mechanical toughness.

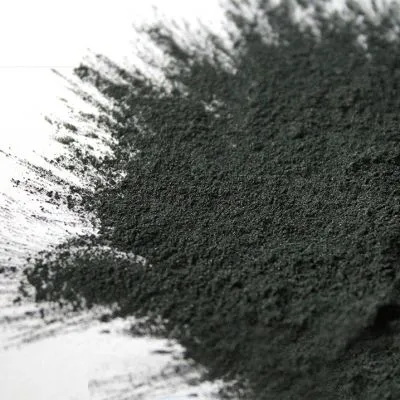

Boron carbide is renowned for its outstanding physical and mechanical properties:
| Property | Value / Description |
|---|---|
| Density | ~2.52 g/cm3(lightweight) |
| Hardness (Mohs) | 9.5–9.75 (third hardest material known) |
| Vickers Hardness | >30 GPa |
| Elastic Modulus | ~460 GPa |
| Fracture Toughness | ~3.5 MPa·m1/2 |
| Melting Point | ~2450 °C |
| Thermal Conductivity | 30–35 W/m·K |
| Electrical Conductivity | Semiconductor behavior, p-type |
- Boron carbide's hardness approaches that of diamond, making it extremely resistant to wear, abrasion, and scratching.
- This makes it ideal for applications requiring durable, wear-resistant materials.
- Its low density combined with high strength makes boron carbide one of the best materials for lightweight armor and protective components.
- This advantage is critical in military and aerospace applications where weight savings improve performance.
Boron carbide exhibits excellent thermal and chemical stability:
- It can withstand temperatures up to 2450 °C without melting, sublimating instead at very high temperatures.
- It maintains mechanical integrity under extreme heat and thermal shock.
- Chemically inert, boron carbide resists oxidation, acids, alkalis, and most corrosive environments below ~1000 °C.
- Its high neutron absorption cross-section makes it valuable in nuclear reactor shielding.
Producing boron carbide ceramics involves complex high-temperature processes:
- Synthesis: Typically produced by carbothermal reduction of boron oxide with carbon at temperatures above 2000 °C or by magnesiothermal reduction.
- Powder Processing: The synthesized powder is milled to fine particle sizes to enhance sintering.
- Sintering: Hot pressing or pressureless sintering consolidates the powder into dense ceramic bodies.
- Advanced Techniques: Isostatic pressing and spark plasma sintering improve density and mechanical properties.
- Shaping: Machining is challenging due to hardness; near-net shape forming and 3D printing are emerging technologies.
Manufacturing quality directly influences the final performance of boron carbide ceramics.

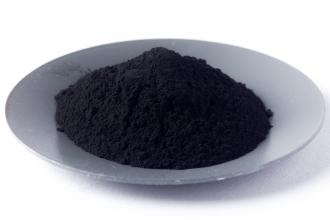

Boron carbide's unique combination of properties enables diverse applications:
- Used in personal body armor plates, helmets, and vehicle armor due to its lightweight and high hardness.
- Provides excellent protection against high-velocity projectiles and shrapnel.
- Employed in grinding wheels, sandpapers, and cutting tools for machining hard materials.
- Its wear resistance extends tool life and improves cutting efficiency.
- Used as neutron absorbers in control rods and radiation shielding due to high neutron capture cross-section.
- Chemically stable under radiation exposure.
- Boron carbide's semiconductor properties enable applications in high-temperature electronics and sensors.
- Wear-resistant coatings, polishing pastes, and refractory components.
Compared to other ceramics like alumina or silicon carbide, boron carbide offers:
- Higher hardness and wear resistance.
- Lower density, enabling lighter components.
- Superior ballistic protection at reduced weight.
- Excellent chemical and thermal stability.
These advantages make it the material of choice for demanding applications in defense, aerospace, and industrial tooling.
Despite its benefits, boron carbide ceramics face challenges:
- Brittleness: Like most ceramics, it is brittle and prone to cracking under impact or stress concentration.
- Manufacturing Complexity: High-temperature sintering and machining difficulties increase production costs.
- Cost: Raw materials and processing are expensive compared to conventional ceramics.
- Limited Toughness: Efforts to improve fracture toughness are ongoing through composite approaches.
Boron carbide is a special type of ceramic distinguished by its extraordinary hardness, low density, and excellent thermal and chemical stability. Its unique crystal structure, featuring B₁₂ icosahedra and C-B-C chains, imparts exceptional mechanical strength and ballistic resistance. Widely used in body armor, abrasives, nuclear shielding, and advanced electronics, boron carbide stands out among ceramics for its performance in extreme environments.
While challenges such as brittleness and manufacturing complexity remain, ongoing research and technological advances continue to enhance its toughness and cost-effectiveness. Boron carbide's combination of properties makes it an indispensable material in modern high-performance applications.
Yes, boron carbide is a covalently bonded, non-oxide advanced ceramic known for its hardness and stability.
Its unique crystal structure of boron icosahedra and carbon-boron-carbon chains creates strong covalent bonds, resulting in hardness second only to diamond and cubic boron nitride.
It is used in ballistic armor, abrasives, nuclear shielding, cutting tools, and high-temperature electronics.
Through high-temperature carbothermal or magnesiothermal reduction, followed by powder processing and sintering techniques such as hot pressing.
They are brittle, costly to produce, and difficult to machine, though research is ongoing to improve toughness and reduce costs.
