Silicon carbide (SiC) is a unique and highly versatile material that has become indispensable in advanced engineering, electronics, and industrial applications. Its remarkable combination of physical, mechanical, thermal, electrical, and chemical properties sets it apart from traditional ceramics and even some metals. This comprehensive article explores the properties of silicon carbide in depth, supported by images and diagrams suggestions to enhance understanding. At the end, a detailed FAQ section addresses common questions about SiC.

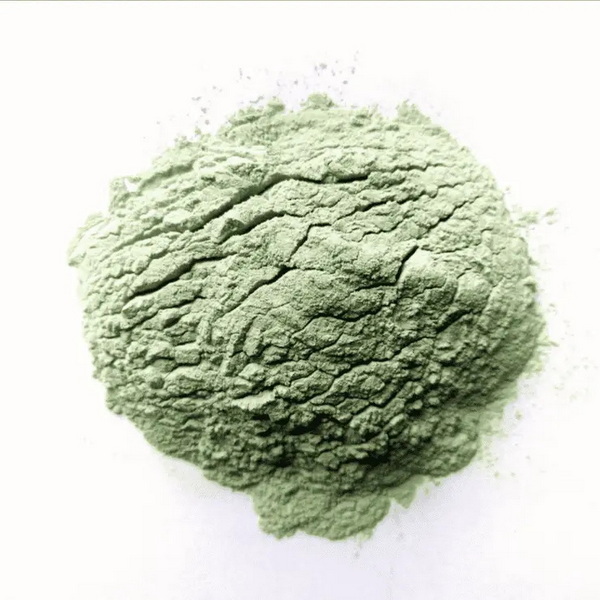

Silicon carbide is a compound of silicon and carbon, typically appearing as a black-grey to green powder or as a solid grey crystalline material. It is renowned for its exceptional hardness, high thermal conductivity, chemical inertness, and semiconducting behavior. These properties make SiC a material of choice in sectors such as aerospace, automotive, electronics, energy, and defense.
- Color: Black-grey to green powder; solid grey when in crystalline form.
- Odor: Odorless.
- Density: 3.16–3.21 g/cm3, denser than most ceramics but lighter than many metals.
- Solubility: Insoluble in water, alcohol, and most acids; only soluble in molten alkalis and some metal melts.
Silicon carbide exists in more than 200 polytypes, with the most common being:
- 3C-SiC (β-SiC): Cubic zinc blende structure.
- 4H-SiC and 6H-SiC (α-SiC): Hexagonal structures.
These polytypes impact the electronic and thermal properties of SiC.
- Mohs Hardness: 9–13 (new scale), making it one of the hardest known materials, surpassed only by diamond and boron carbide.
- Knoop Hardness: 25,000–30,000 N/mm2.
- Vickers Hardness: Up to 32 GPa.
This exceptional hardness ensures outstanding wear and abrasion resistance, making SiC ideal for cutting tools, abrasives, and armor.
- Fracture Toughness: 6.8 MPa·m⁰·⁵, indicating good resistance to crack propagation.
- Young's Modulus: 440 GPa, reflecting high stiffness.
- Flexural Strength: 490 MPa, demonstrating strong resistance to bending.
These properties allow SiC to withstand high mechanical loads and pressures in demanding environments.
The tetrahedral bonding of silicon and carbon atoms in the crystal lattice provides SiC with exceptional structural integrity, preventing deformation under stress and enabling use in high-stress and protective applications.
- Value: 120–348 W/m·K (depending on polytype and purity).
- Comparison: Higher than most ceramics and many metals, enabling efficient heat dissipation.
- Coefficient: 2.3–4.8 × 10-6 /°C, very low compared to metals.
- Implication: Minimal dimensional changes under temperature fluctuations, ideal for precision components.
- Sublimation Point: ~2,700°C (SiC does not melt but sublimates at extremely high temperatures).
- Strength at High Temperatures: Maintains mechanical strength up to 1,400°C and beyond.
These thermal properties make SiC suitable for heat exchangers, kiln furniture, and high-power electronic devices.
- Bandgap: 2.36 eV (3C-SiC) to 3.23 eV (4H-SiC), much wider than silicon.
- Electrical Conductivity: Naturally a semiconductor; can be doped n-type (with nitrogen or phosphorus) or p-type (with boron, aluminum, gallium, or beryllium).
- Breakdown Electric Field: High, allowing operation at higher voltages than silicon.
- Current Density: High maximum current density, enabling compact, efficient power devices.
- Certain heavily doped polytypes of SiC exhibit superconductivity at very low temperatures (~1.5 K), though this is not typical for most applications.
- Acid and Alkali Resistance: Insoluble in water, alcohol, and most acids and bases; only attacked by molten alkalis and some metal oxide melts.
- Corrosion Resistance: Forms a thin passivated layer of silicon dioxide (SiO₂) on the surface, further enhancing chemical stability.
- Oxidation Resistance: Excellent up to 1,500°C in inert or reducing atmospheres.
- SiC is stable against most organic and inorganic chemicals, making it suitable for use in harsh chemical environments and aggressive processing conditions.
- SiC's hardness and toughness make it extremely resistant to wear, erosion, and abrasion, even under high-pressure or high-velocity conditions.
- SiC can be machined to ultra-high tolerances, enabling its use in high-precision components like vacuum chucks, mirrors, and semiconductor substrates.
- At 3.2 g/cm3, SiC is much lighter than steel (7.8 g/cm3), making it ideal for aerospace and automotive applications where weight savings are critical.
- Used for grinding wheels, sandpapers, and cutting tools due to its hardness and wear resistance.
- Heat exchanger tubes, kiln furniture, and furnace parts leverage SiC's thermal stability.
- SiC MOSFETs, diodes, and power modules operate at higher voltages, temperatures, and frequencies than silicon-based devices.
- Lightweight, hard SiC ceramics are used in ballistic armor and protective vehicle plating.
- SiC's chemical inertness is used in pump parts, mechanical seals, and valves exposed to corrosive media.
| Property | Silicon Carbide | Aluminum Oxide | Tungsten Carbide | Steel |
|---|---|---|---|---|
| Mohs Hardness | 9–13 | ~9 | 8.5–9 | 4–5 |
| Density (g/cm³) | 3.2 | 3.9 | 15.6 | 7.8 |
| Thermal Conductivity (W/m·K) | 120–348 | 30 | 85 | 50 |
| Bandgap (eV) | 2.3–3.2 | 8.8 | - | - |
| Chemical Resistance | Excellent | Good | Good | Poor |
| Max Operating Temp (°C) | 1,400+ | 1,000+ | 600–800 | 500–600 |
Silicon carbide is a truly exceptional material, offering a rare combination of extreme hardness, high thermal conductivity, chemical inertness, and advanced semiconducting properties. Its ability to perform reliably in harsh environments, resist wear and corrosion, and enable high-power electronics makes it indispensable in modern technology. Whether in the form of abrasives, ceramics, or semiconductor devices, SiC continues to drive innovation across industries.
Silicon carbide's hardness comes from its strong covalent bonds and tetrahedral crystal structure, making it one of the hardest known materials after diamond and boron carbide.
Yes, silicon carbide is a wide-bandgap semiconductor. Its electrical conductivity can be tailored by doping, making it suitable for high-power electronic devices.
SiC is highly resistant to most acids, alkalis, and corrosive chemicals, only being attacked by molten alkalis and some metal melts.
SiC is used in abrasives, high-temperature ceramics, semiconductor devices, armor, and chemical processing equipment.
SiC maintains its mechanical strength and chemical stability at temperatures exceeding 1,400°C, making it ideal for extreme thermal environments.
