Boron carbide armour is widely recognized as one of the most advanced and effective materials used in modern combat gear. Its unique combination of hardness, light weight, and ballistic resistance has made it a preferred choice for military and law enforcement personnel worldwide. This article explores the many advantages of boron carbide armour, detailing its physical and chemical properties, performance in ballistic protection, manufacturing innovations, and practical applications in personal and vehicle armour systems. Supported by images and scientific insights, this comprehensive guide will provide a detailed understanding of why boron carbide armour is a game-changer in protective gear.
Boron carbide, often dubbed the “black diamond,” is a synthetic ceramic material known for its exceptional hardness and low density. It ranks as the third hardest material after diamond and cubic boron nitride. Its outstanding properties make it an ideal candidate for ballistic protection, where stopping power, weight, and durability are critical.
Unlike heavier and less hard materials such as steel or aluminum oxide, boron carbide armour offers superior protection while significantly reducing the weight burden on the wearer or vehicle. This advantage translates into improved mobility, endurance, and operational effectiveness in combat scenarios.
| Property | Description |
|---|---|
| Chemical Formula | B₄C (approximate) |
| Density | ~2.49 g/cm3 (lightweight) |
| Hardness (Mohs) | ~9.5 (extremely hard) |
| Melting Point | ~2763 °C |
| Flexural Strength | ~330 MPa |
| Elastic Modulus | ~400 GPa |
| Thermal Conductivity | High (efficient heat dissipation) |
| Chemical Stability | Highly inert, corrosion resistant |
Boron carbide's low density combined with extreme hardness allows for lightweight armour that does not compromise on ballistic resistance. Its chemical inertness ensures durability in harsh environments.
Boron carbide armour excels at stopping a wide range of ballistic threats, including:
- Handgun rounds traveling below ~900 meters per second
- Armor-piercing projectiles up to certain velocity thresholds
- High-velocity rifle rounds with effective multi-hit capability
When a bullet strikes boron carbide armour, the ceramic surface shatters locally, dissipating the projectile's energy and preventing penetration. The backing material (often Kevlar or other composites) absorbs residual energy and catches fragments, providing comprehensive protection.
Research from Texas A&M University and other institutions has shown that adding small amounts of silicon to boron carbide enhances its resilience against high-speed impacts, improving multi-hit performance and durability.
One of the most significant advantages of boron carbide armour is its lightweight nature. Compared to traditional steel armour, boron carbide plates weigh approximately 25-50% less for the same level of ballistic protection. This weight reduction offers:
- Increased wearer mobility and comfort
- Reduced fatigue during extended missions
- Enhanced vehicle fuel efficiency and payload capacity
- Ability to design thinner, more ergonomic armour plates
These factors are critical in modern combat where agility and endurance can be decisive.
Boron carbide's high melting point and chemical inertness allow it to withstand extreme temperatures and corrosive environments without degradation. This stability ensures:
- Reliable performance in desert, arctic, and maritime conditions
- Resistance to chemical agents and environmental contaminants
- Longevity of armour plates with minimal maintenance
Its efficient thermal conductivity also helps dissipate heat generated by ballistic impacts, reducing thermal damage.
Manufacturing boron carbide armour involves advanced ceramic processing techniques such as pressureless sintering and reaction bonding. Innovations include:
- Composite ceramics combining boron carbide with silicon carbide to balance cost and performance
- Precision shaping and machining for ergonomic armour plates
- Integration with advanced backing materials like ultra-high molecular weight polyethylene (UHMWPE) and Kevlar
- Development of spall liners to contain ceramic fragments upon impact
These advancements have made boron carbide armour more accessible and effective for military and law enforcement use worldwide.

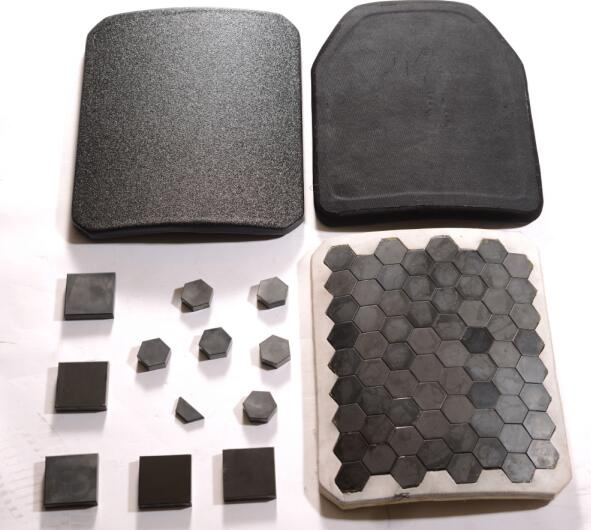

Boron carbide is the material of choice for Small Arms Protective Inserts (SAPI) and Enhanced Small Arms Protective Inserts (ESAPI) used by the U.S. military and allied forces. Its lightweight and high hardness provide superior ballistic protection for soldiers and law enforcement officers.
Boron carbide plates reinforce armored personnel carriers, tanks, helicopters, and other military vehicles. The material's combination of light weight and high strength improves vehicle mobility and survivability.
Due to its thermal stability and neutron absorption properties, boron carbide is also used in aerospace components and nuclear shielding.
Despite its advantages, boron carbide armour has some limitations:
- Brittleness: It can crack or shatter under very high-velocity impacts or repeated hits.
- Cost: Production is expensive due to raw material costs and complex manufacturing.
- Performance Ceiling: Less effective against extremely high-velocity or heavy armor-piercing rounds compared to some newer materials.
- Handling: Requires careful handling and integration with backing materials to maximize protection.
Ongoing research aims to address these challenges through composite materials and improved processing.
Boron carbide armour represents a pinnacle of modern ballistic protection, combining extreme hardness, lightweight design, and chemical and thermal stability. Its ability to stop a wide range of ballistic threats while enabling greater mobility makes it invaluable for military and law enforcement personnel. Although challenges such as brittleness and cost remain, ongoing research and material innovations continue to enhance its performance and accessibility. Boron carbide armour not only protects lives but also advances the capabilities and effectiveness of combat gear in the modern battlefield.
Boron carbide is harder and lighter than many other ceramics like silicon carbide and alumina, offering excellent ballistic protection with reduced weight.
It effectively stops most handgun and many rifle rounds below 900 meters per second but is less effective against very high-velocity or heavy armor-piercing rounds.
Its low density (~2.49 g/cm³) combined with high hardness allows thinner plates that weigh less than steel or other ceramic armours.
It is produced through advanced ceramic processing like pressureless sintering and reaction bonding, often combined with composite backing materials.
It can be brittle under high-velocity impacts, is expensive to produce, and requires careful integration with backing layers for optimal protection.
