Identifying silicon carbide sandpaper involves understanding its unique properties and characteristics. Silicon carbide (SiC) is a synthetic abrasive material known for its exceptional hardness and sharpness, making it ideal for sanding and polishing various surfaces. This article provides a comprehensive guide on how to distinguish silicon carbide sandpaper from other types, such as aluminum oxide, supported by scientific insights, visual aids, and practical examples.
Silicon carbide sandpaper is made from silicon carbide particles bonded onto a paper or cloth backing. It is renowned for its hardness (9–9.5 Mohs) and sharpness, making it suitable for sanding hard materials like metal, stone, and ceramics. Key properties include:
- Hardness: Silicon carbide is one of the hardest abrasive materials, second only to diamond.
- Sharpness: Its sharp particles are effective for cutting through tough surfaces.
- Heat Resistance: Can withstand high temperatures without degrading.
- Versatility: Used in both wet and dry sanding applications.
- Color: Silicon carbide sandpaper often appears darker than aluminum oxide due to the carbon content.
- Grit Size: Available in various grit sizes (e.g., 60, 120, 220), with coarser grits for heavy material removal and finer grits for polishing.
- Sanding Efficiency: Silicon carbide sandpaper cuts more aggressively than aluminum oxide, especially on hard surfaces.
- Durability: While sharp, silicon carbide is more brittle than aluminum oxide, leading to quicker wear.
- Suitable for: Wood, metal, glass, ceramics, and plastics.
- Not Ideal for: Soft metals or delicate surfaces due to its sharpness.
Table: Comparison of Silicon Carbide vs. Aluminum Oxide Sandpaper
| Property | Silicon Carbide Sandpaper | Aluminum Oxide Sandpaper |
|---|---|---|
| Hardness | 9–9.5 Mohs | 9 Mohs |
| Sharpness | Sharper | Less sharp |
| Durability | Brittle, less durable | More durable |
| Material Compatibility | Suitable for hard surfaces | Versatile but less effective on very hard metals |
- Use: Ideal for sanding wood surfaces, especially for removing old finishes.
- Benefits: Provides a smooth finish without clogging.
- Use: Effective for sanding metal surfaces, including stainless steel and titanium.
- Benefits: Sharp particles efficiently remove rust and scale.
- Use: Used for polishing and finishing metal components.
- Benefits: Offers a high-quality finish with minimal scratches.
- Use: Suitable for sanding machinery parts and industrial surfaces.
- Benefits: Resists clogging and maintains sharpness over time.
- Silicon Carbide: Harder (9–9.5 Mohs) and sharper than aluminum oxide (9 Mohs).
- Aluminum Oxide: Less sharp but more durable and less prone to clogging.
- Silicon Carbide: Effective on hard materials like stone and glass.
- Aluminum Oxide: Suitable for a wide range of materials, including wood and soft metals.
- Silicon Carbide: Generally more expensive than aluminum oxide.
- Aluminum Oxide: Widely available and cost-effective.

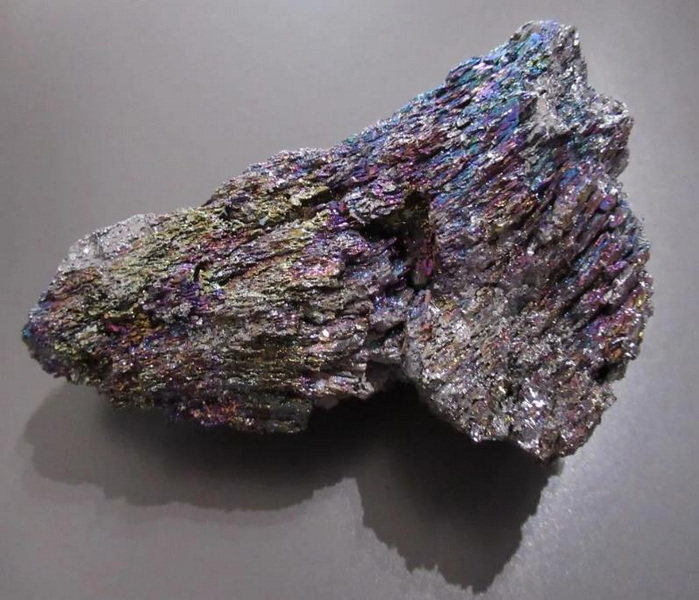

Silicon carbide is produced primarily through the Acheson process, which involves heating a mixture of silica sand (SiO₂) and carbon in an electric resistance furnace at temperatures between 1,600°C and 2,500°C. This process yields SiC crystals that are used in various applications, including abrasives, semiconductors, and refractory materials.
- Physical Vapor Transport (PVT): Produces high-purity SiC crystals by sublimation.
- Chemical Vapor Deposition (CVD): Deposits SiC films using silane and hydrocarbons.
- Preceramic Polymers: Pyrolysis of preceramic polymers to form SiC ceramics.
Silicon carbide is known for its hardness, ranking among the hardest materials known. Its durability makes it ideal for wear-resistant components and abrasive tools.
SiC has a high thermal conductivity, making it suitable for applications requiring efficient heat dissipation.
SiC exhibits semiconductor properties, useful in high-temperature electronic devices.
Table: Key Properties of Silicon Carbide
| Property | Value/Description |
|---|---|
| Hardness | 9–10 Mohs |
| Density | 3.21 g/cm3 |
| Thermal Conductivity | 120–170 W/m·K |
| Semiconductor Bandgap | 2.36–3.23 eV |
1. High Energy Costs: The Acheson process requires significant energy.
2. Material Purity: Achieving high purity is challenging due to impurities during synthesis.
3. Sintering Difficulty: SiC is hard to sinter to full density without dopants.
1. Advanced Sintering Techniques: Improvements in hot pressing and sinter HIP to enhance density and purity.
2. Nanoparticle Synthesis: Developing ultra-fine SiC particles for advanced ceramics.
3. Sustainable Production Methods: Focus on reducing energy consumption and waste during synthesis.
1. PPE: Always wear gloves and safety goggles to protect against sharp particles.
2. Work Environment: Ensure good ventilation to avoid inhaling dust.
3. Storage: Keep sandpaper in a dry environment to prevent moisture absorption.
- Ceramic: Offers better durability and cooler operation than aluminum oxide but is more expensive.

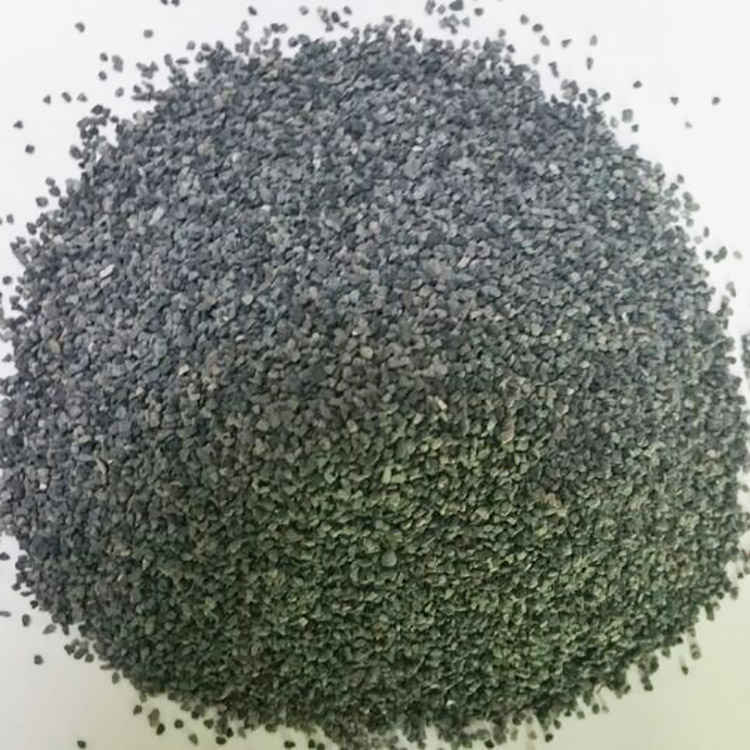

- Zirconia: Known for its high durability and resistance to wear, often used in high-speed applications.
- Use: Ideal for extremely hard surfaces like glass or ceramics.
- Benefits: Provides a precise finish but is very expensive.
Silicon carbide sandpaper is distinguished by its exceptional hardness, sharpness, and versatility in sanding applications. While it is more expensive and brittle than aluminum oxide, its ability to efficiently cut through hard materials makes it a preferred choice for precision sanding tasks. As technology advances, innovations in abrasive materials will continue to enhance performance and sustainability.
Identify silicon carbide sandpaper by its dark color, sharpness, and high grit sizes (e.g., 60–220).
Yes—silicon carbide sandpaper is effective in both wet and dry sanding applications.
Silicon carbide is sharper but less durable than aluminum oxide due to its brittleness.
Primary applications include woodworking, metalworking, automotive, and aerospace industries.
Yes—silicon carbide sandpaper can be reused multiple times, but its sharpness decreases over time.
