Silicon carbide and quartz are two materials widely recognized for their hardness and durability, but they differ significantly in their physical properties and applications. Understanding the hardness of these materials is essential for industries ranging from electronics and abrasives to construction and jewelry. This comprehensive article explores the question: Is silicon carbide harder than quartz? We will examine their hardness values, crystal structures, measurement methods, and practical implications.

Introduction to Silicon Carbide and Quartz

Silicon carbide (SiC) is a synthetic compound composed of silicon and carbon atoms. It is renowned for its exceptional hardness, thermal conductivity, and chemical stability. Quartz (SiO₂), a naturally occurring mineral, is one of the most abundant materials in the Earth's crust and is valued for its durability and optical properties.

Both materials are used in abrasive, industrial, and technological applications, but their hardness levels and structural characteristics differ significantly.

Understanding Hardness: Mohs Scale and Other Measures

Hardness is a material's resistance to scratching, indentation, or deformation. The most common scale is the Mohs hardness scale, which ranks minerals from 1 (talc) to 10 (diamond) based on their ability to scratch one another.

Other hardness measures include:

- Vickers Hardness (HV): Measures indentation hardness using a diamond pyramid indenter.

- Knoop Hardness: Similar to Vickers but for very thin materials.

- Brinell and Rockwell Hardness: Used mainly for metals.

Mohs hardness is qualitative and ordinal, while Vickers and others provide quantitative values.

Hardness of Quartz

Quartz ranks 7 on the Mohs hardness scale. It is hard enough to scratch most common materials such as glass and steel but can be scratched by harder minerals like topaz (8) or corundum (9).

Quartz's Vickers hardness is approximately 1100 HV, reflecting its moderate resistance to indentation.

Quartz's hardness makes it suitable for:

- Jewelry and gemstones

- Countertops and building materials

- Electronics substrates

- Optical components

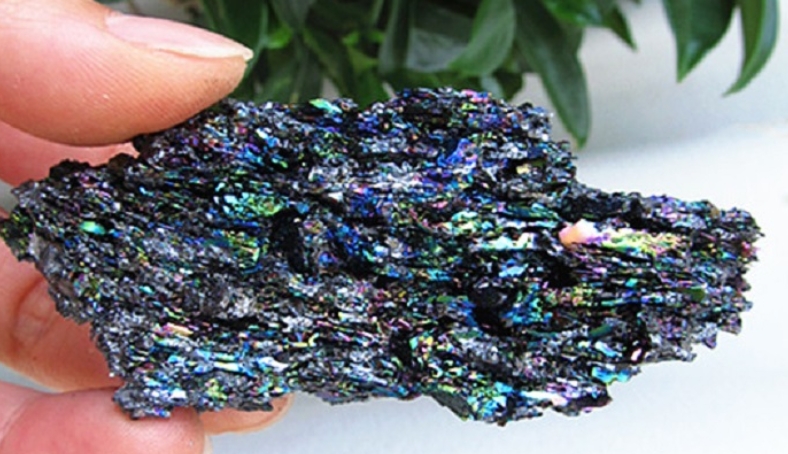

Hardness of Silicon Carbide

Silicon carbide is significantly harder than quartz, with a Mohs hardness ranging between 9 and 9.5. It is among the hardest materials available, surpassed only by diamond (10) and boron carbide (9.5–10).

Its Vickers hardness ranges from 2800 to 3400 HV, depending on the crystal form (black or green SiC) and purity.

Silicon carbide's hardness is due to its strong covalent bonding and crystal structure, making it ideal for:

- Abrasives and grinding wheels

- High-temperature semiconductors

- Armor and ballistic protection

- Cutting tools

Comparative Analysis: Silicon Carbide vs Quartz

Property	Quartz	Silicon Carbide
Mohs Hardness	7	9 – 9.5
Vickers Hardness (HV)	~1100	2800 – 3400
Crystal Structure	Trigonal (Quartz)	Hexagonal (α-SiC), Cubic (β-SiC)
Chemical Composition	SiO₂	SiC
Common Uses	Jewelry, glass, electronics	Abrasives, semiconductors, armor

Silicon carbide is clearly harder than quartz, making it more suitable for applications requiring superior wear resistance and durability.

Crystal Structures and Their Impact on Hardness

Quartz's trigonal crystal structure consists of silicon-oxygen tetrahedra linked in a three-dimensional framework, providing moderate hardness.

Silicon carbide exists in multiple polytypes:

- α-SiC (hexagonal): Harder and more thermally stable.

- β-SiC (cubic): Slightly softer, commonly used in industrial abrasives.

The strong covalent bonding and dense crystal packing in SiC contribute to its exceptional hardness.

Applications Influenced by Hardness Differences

- Quartz: Used where moderate hardness suffices, such as countertops, glass, and optical components.

- Silicon Carbide: Preferred for abrasive blasting, cutting tools, armor, and high-temperature electronics due to its superior hardness.

Measurement Techniques for Hardness

- Mohs Hardness Test: Simple scratch test comparing materials.

- Vickers Hardness Test: Precise indentation measurement using a diamond indenter.

- Nanoindentation: For thin films and small volumes.

Hardness testing helps select materials for wear resistance, cutting efficiency, and durability.

Practical Considerations in Material Selection

- Silicon carbide's higher hardness comes with higher cost and brittleness.

- Quartz is abundant, inexpensive, and easier to process.

- Application requirements dictate the choice: for heavy wear and cutting, SiC is superior; for decorative or moderate uses, quartz suffices.

Conclusion

Silicon carbide is unequivocally harder than quartz, with a Mohs hardness of 9 to 9.5 compared to quartz's 7. This difference is due to silicon carbide's unique crystal structure and strong covalent bonding. While quartz remains valuable for many applications requiring moderate hardness, silicon carbide's superior hardness makes it essential for abrasive, cutting, and protective uses.

Understanding these differences helps engineers, manufacturers, and consumers select the right material for their needs, balancing hardness, cost, and application requirements.

FAQ

1. Is silicon carbide harder than quartz?

Yes, silicon carbide is significantly harder than quartz, ranking 9-9.5 on the Mohs scale compared to quartz's 7.

2. What causes silicon carbide's high hardness?

Its unique hexagonal or cubic crystal structure with strong covalent bonds between silicon and carbon atoms.

3. How is hardness measured for these materials?

Using the Mohs hardness scale, Vickers hardness test, and nanoindentation techniques.

4. What are common uses of quartz and silicon carbide?

Quartz is used in jewelry, countertops, and optics; silicon carbide is used in abrasives, armor, and electronics.

5. Can quartz scratch silicon carbide?

No, quartz cannot scratch silicon carbide due to its lower hardness.
