Boron carbide bulletproof vests represent the pinnacle of modern ballistic protection technology, offering unmatched hardness, lightweight design, and superior stopping power. However, their high cost often raises the question: Is a boron carbide vest worth the higher cost? This article provides an in-depth exploration of boron carbide bulletproof vests, analyzing their material properties, ballistic performance, advantages, limitations, and cost-effectiveness compared to other armor materials.

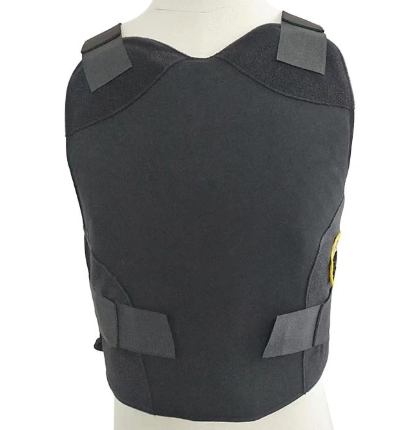

Boron carbide bulletproof vests utilize ceramic plates made from boron carbide (B₄C), one of the hardest and lightest ceramic materials available. These vests are designed to provide maximum protection against high-velocity rifle rounds and armor-piercing projectiles, all while maintaining a lightweight profile that enhances mobility for the wearer.
The high cost of boron carbide vests often leads to debate about their value compared to more affordable alternatives such as silicon carbide or alumina-based armor. This article addresses these concerns by examining the science behind boron carbide armor and its real-world performance.

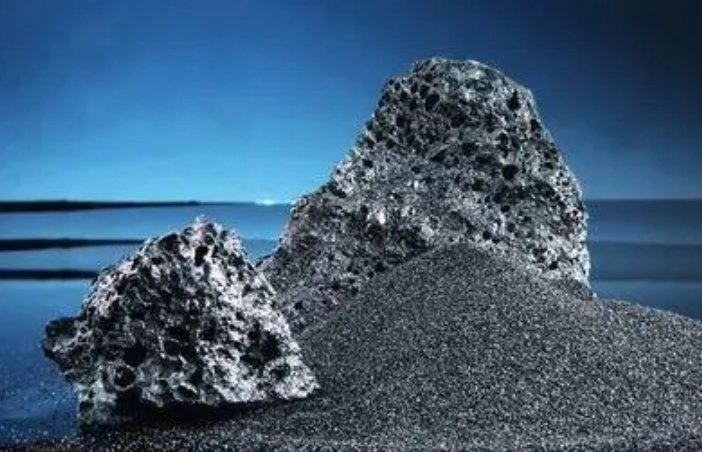

Boron carbide is a non-oxide ceramic composed of boron and carbon atoms. It is widely regarded as one of the hardest materials known, ranking just below diamond and cubic boron nitride in hardness.
- Chemical formula: B₄C
- Density: Approximately 2.52–2.85 g/cm3 (lightweight)
- Hardness: 9.3–9.5 Mohs scale (extremely hard)
- Melting point: ~2450 °C
- Elastic modulus: ~350 GPa
Boron carbide's unique combination of low density and exceptional hardness makes it ideal for ballistic protection applications.
| Property | Boron Carbide (B₄C) | Silicon Carbide (SiC) | Aluminum Oxide (Al₂O₃) |
|---|---|---|---|
| Hardness (Mohs) | 9.3–9.5 (second only to diamond) | 9.0 | 9.0 |
| Density (g/cm3) | 2.52–2.85 | 3.21 | 3.95 |
| Elastic Modulus (GPa) | ~350 | ~450 | ~380 |
| Thermal Conductivity | Moderate (~30 W/m·K) | High (~120 W/m·K) | Moderate (~30 W/m·K) |
| Fracture Toughness | Low to moderate | Moderate | Moderate |
| Chemical Stability | Excellent (corrosion resistant) | Excellent | Excellent |
Boron carbide's low density combined with high hardness and chemical stability makes it a standout material for lightweight, durable armor.
Boron carbide bulletproof vests excel in stopping high-velocity armor-piercing rounds due to their ability to absorb and dissipate kinetic energy effectively.
- Stopping Power: Boron carbide plates can stop rifle rounds such as 7.62×51mm NATO and armor-piercing rounds that other ceramics struggle with.
- Energy Dissipation: Upon impact, the ceramic plate fractures locally, breaking the projectile and dispersing energy across the plate and backing material.
- Weight Advantage: Boron carbide's low density reduces the overall weight of the vest by up to 35% compared to alumina or silicon carbide plates, enhancing wearer mobility.
- Thermal Resistance: The material maintains structural integrity under extreme temperatures, important for combat scenarios.
Boron carbide's hardness is second only to diamond, providing superior resistance to penetration by bullets and shrapnel.
The low density of boron carbide allows for thinner, lighter armor plates without compromising protection levels, reducing fatigue and increasing agility.
Boron carbide resists corrosion and retains its properties in harsh environments, making it suitable for diverse operational conditions.
Modern manufacturing techniques allow boron carbide plates to be produced in various shapes and sizes, including curved plates that improve comfort and coverage.
Boron carbide armor is widely used in military vehicles, aircraft, and personal body armor for soldiers and law enforcement officers worldwide.
Boron carbide is significantly more expensive than other ceramic armor materials due to complex manufacturing processes and raw material costs.
Despite its hardness, boron carbide is brittle and can crack upon impact or if dropped, potentially compromising protection.
Studies show boron carbide's ballistic performance decreases sharply against tungsten-cored rounds or projectiles traveling above 900 m/s due to phase transformations in the ceramic.
Boron carbide plates may degrade more quickly under multiple impacts compared to some hybrid armor systems.
| Material | Approximate Cost per Plate | Weight (kg) | Protection Level | Durability | Typical Use Cases |
|---|---|---|---|---|---|
| Boron Carbide | $600–$1500+ | 1.5–2.5 | Level III+ to IV | Moderate | Elite military, special ops |
| Silicon Carbide | $300–$700 | 2.5–3.5 | Level III+ | Higher | Military, law enforcement |
| Aluminum Oxide | $150–$400 | 3.5–4.5 | Level III | Moderate | Budget-conscious protection |
| Steel | $50–$200 | 5–7 | Level III+ | High | Vehicle armor, low-cost vests |
While boron carbide vests are the most expensive, their weight savings and protection capabilities justify the price for users requiring the highest performance.
- Military Personnel: Frontline soldiers and special forces benefit from the lightweight, high-protection boron carbide vests.
- Law Enforcement: SWAT teams and tactical units use boron carbide plates for protection against rifle threats.
- Private Security: High-risk executives and bodyguards may opt for boron carbide armor for discreet yet effective protection.
- Vehicle Armor: Boron carbide plates are integrated into armored vehicles and helicopters for weight-sensitive protection.
- Aerospace: Lightweight boron carbide armor is used in aircraft to protect against ballistic threats without compromising flight performance.
Proper care is essential to maintain the integrity and performance of boron carbide bulletproof vests:
- Regular Inspection: Check plates for cracks, chips, or delamination before each use.
- Avoid Dropping: Handle plates carefully as impacts can cause brittle fractures.
- Cleaning: Wipe plates with a damp cloth; avoid soaking or harsh chemicals.
- Storage: Store in a dry, cool place away from direct sunlight and heavy compression.
- Replacement: Follow manufacturer guidelines, typically replacing plates every 5–10 years or after significant impacts.
A boron carbide bulletproof vest offers unmatched ballistic protection combined with lightweight design, making it an excellent choice for military, law enforcement, and high-risk security personnel. Despite its higher cost and some limitations such as brittleness and reduced performance against extreme velocity projectiles, the benefits of enhanced mobility, superior stopping power, and durability in harsh environments justify the investment for those who require the best protection available.
For users prioritizing maximum protection and weight savings, a boron carbide vest is indeed worth the higher cost. However, for those with budget constraints or lower threat levels, alternative materials like silicon carbide or alumina may provide adequate protection at a lower price point.
Boron carbide is costly due to its complex manufacturing process, raw material expense, and high-performance properties that require precise engineering.
Yes, boron carbide plates are highly effective against many armor-piercing rounds, especially those traveling below 900 meters per second.
They are hard but brittle; plates can crack if dropped or subjected to multiple impacts, so careful handling and regular inspection are necessary.
Boron carbide plates can be up to 30–35% lighter than alumina and about 15–25% lighter than silicon carbide plates of similar protection levels.
Inspect regularly for damage, avoid dropping, clean gently, store properly, and replace plates after significant impacts or after 5–10 years.
